iFlight Cidora SL5 FREESTYLE

Freestyle 5 Inch FPV Racing Drone PNP/BNF X2306 2450KV Motor SucceX F7 TwinG FC 25~1000mW VTX Caddx.us Ratel Cam - Frsky XM+ Receiver

34

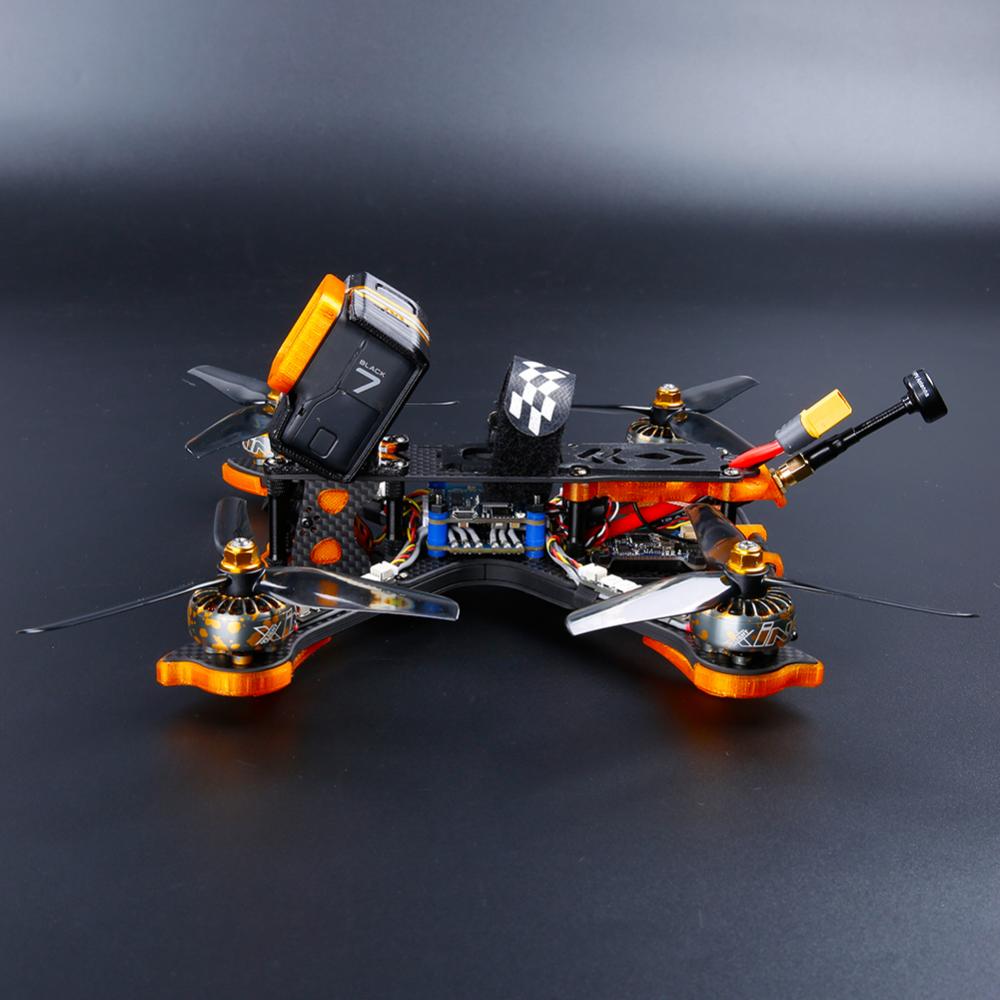

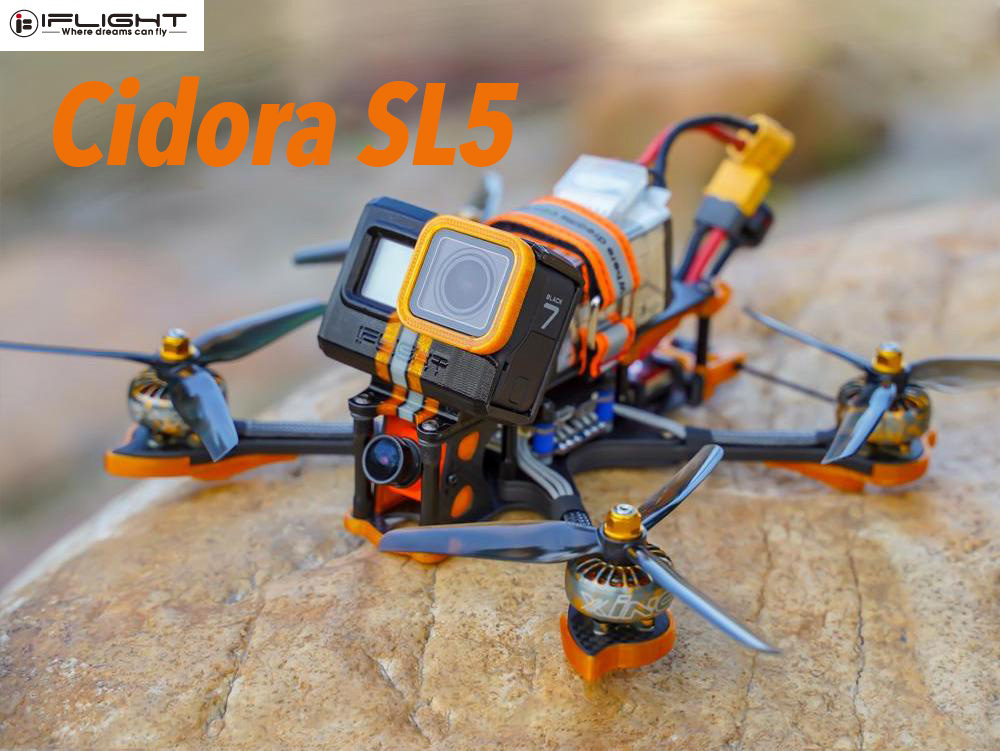

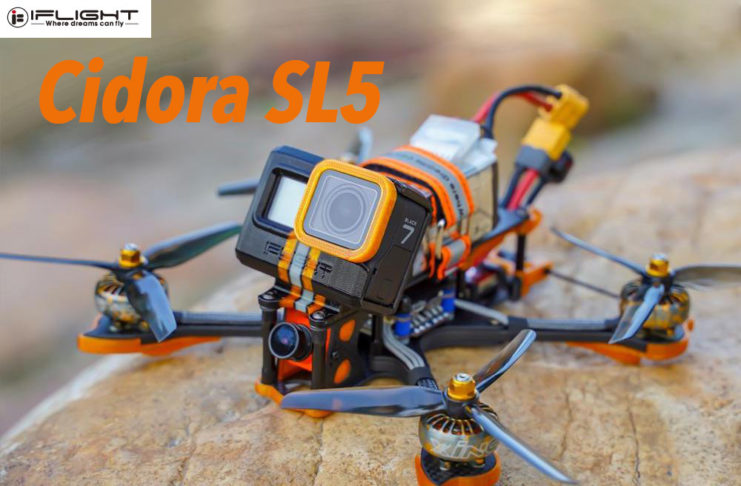

iFlight Cidora SL5 FPV racer
iFlight Cidora SL5

FPV FREESTYLE Frame

Spécifications:

  • Dimensions : 165x138mm
  • Frame: 215mm
  • SucceXF7 TwinG Bluetooth FC
  • SucceX 50A 4-in-1 ESC Dshot1200

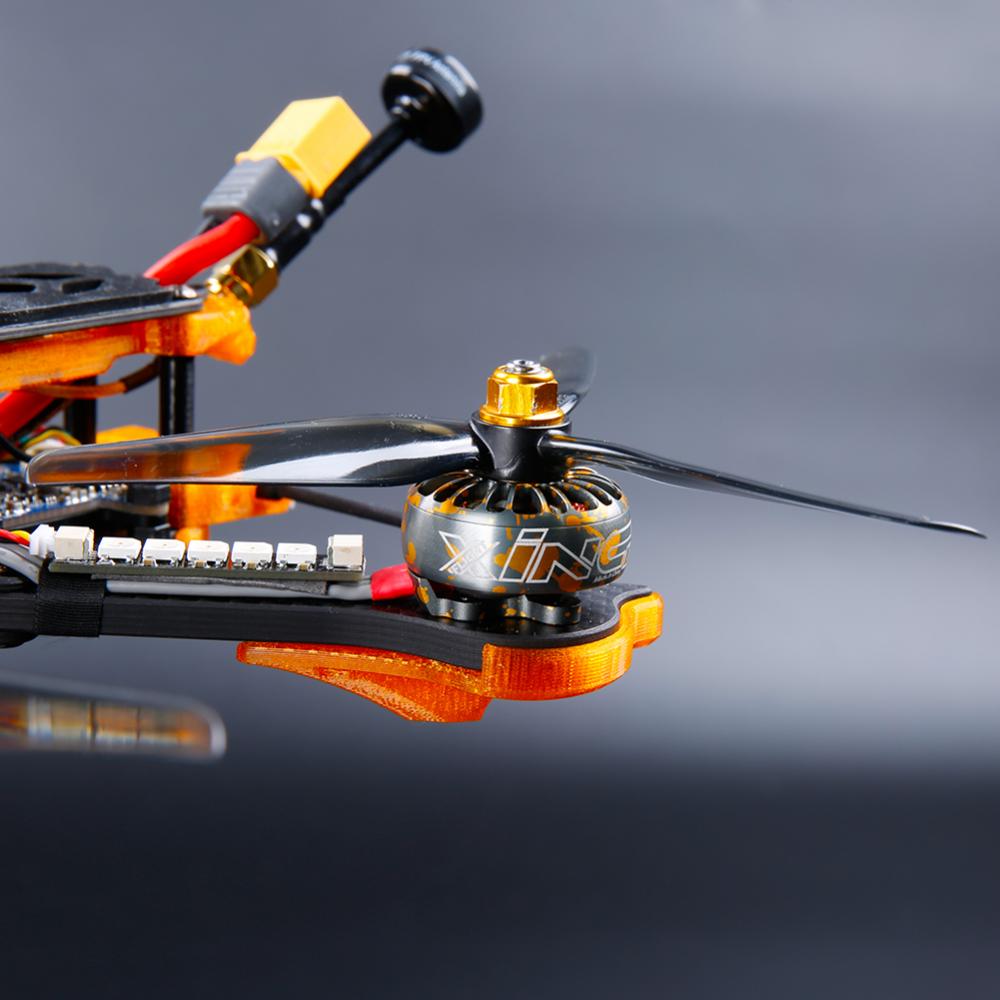

  • XING CAMO X2306 2450KV (4S )

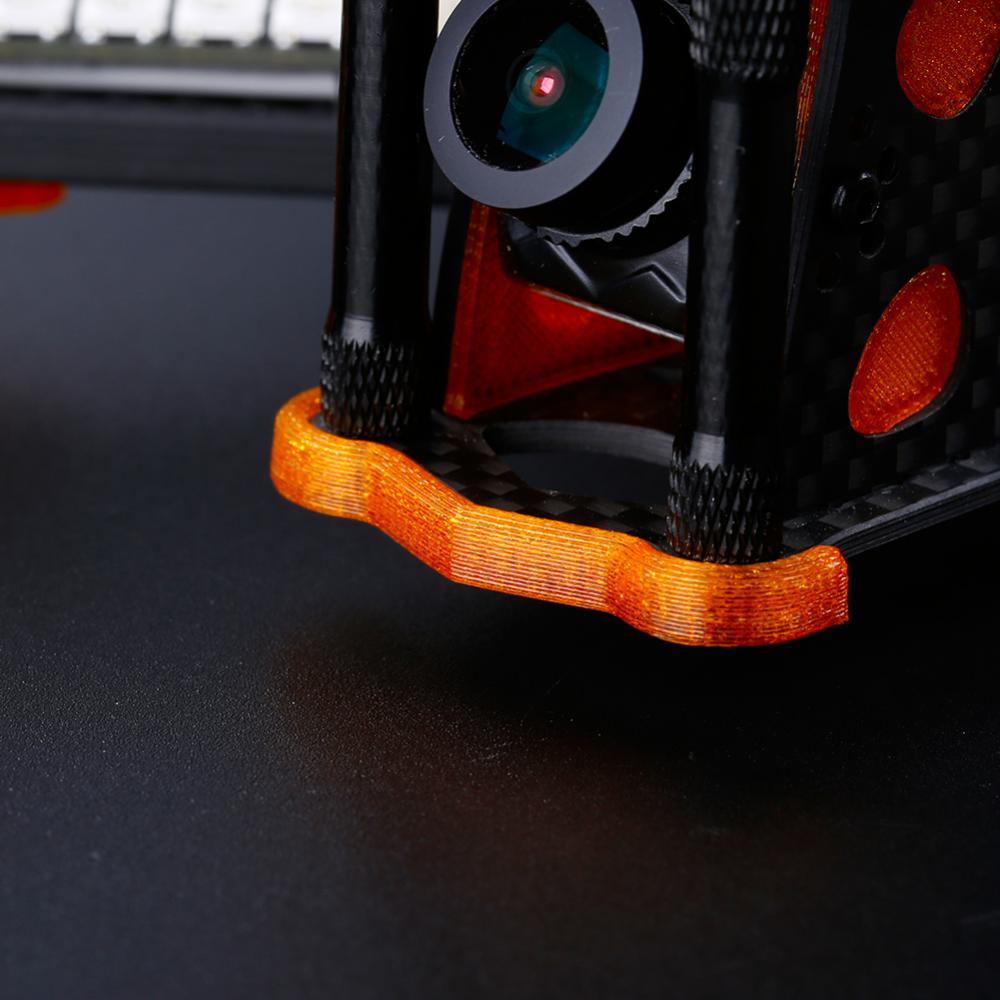

  • Caddx.us Ratel 2.1mm FPV cam
  • Nazgul 5140 propellers
  • Weight: 384g
iFlight Cidora SL5
iFlight Cidora SL5

Features:

  • – Full 3K Carbon Fiber airframe
  • – Easy arm swaps -215mm wheelbase,115g
  • – Popular Squish X configuration
  • – SucceX F7 TwinG Bluetooth with 50A 4in1 ESC stack
iFlight Cidora SL5
iFlight Cidora SL5

Recommend Parts (Not included):

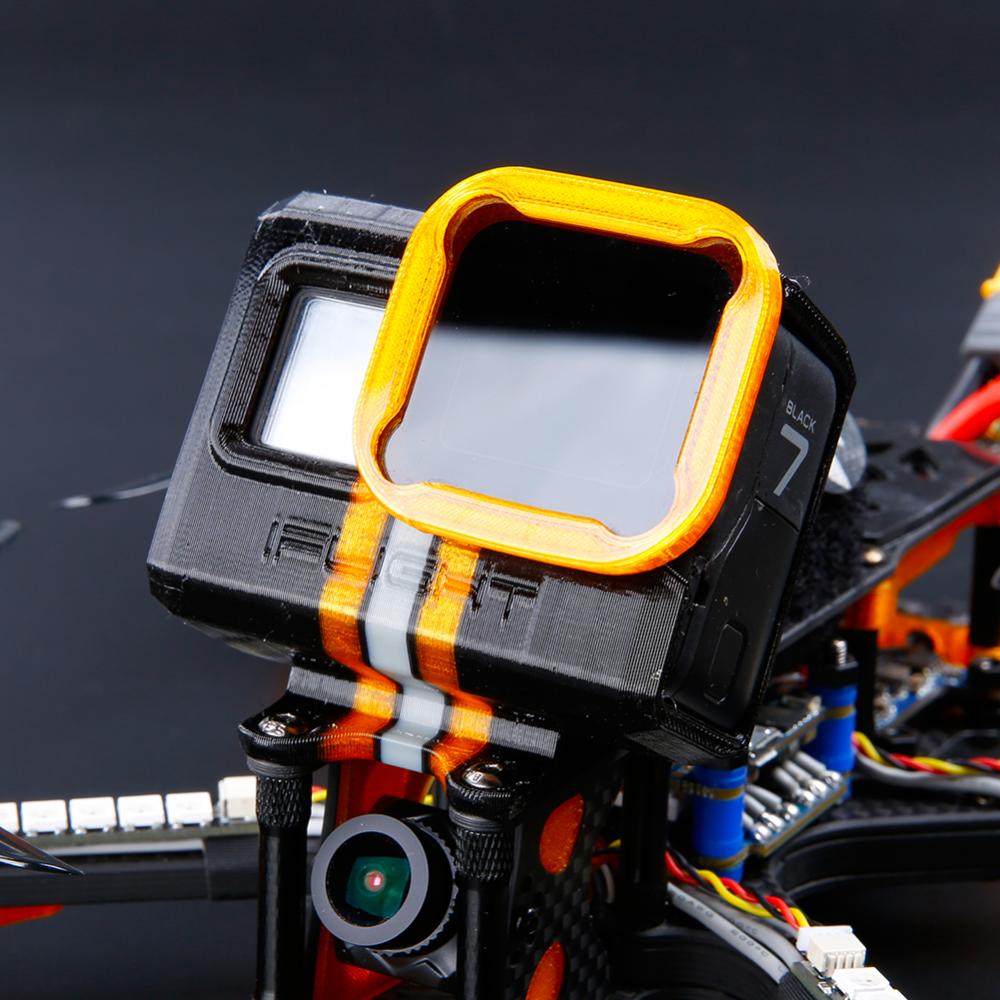

-TPU 3D Printed Camera Mount for Gopro Hero 5/6/7 with ND8 Filter
-TPU 3D Printed Camera Mount for GoPro Session

Specifications:

  • – Total Dimensions: 165*138mm (body dimension)
  • – Frame Wheelbase: 215mm
  • – SucceXF7 TwinG Bluetooth FC
  • – SucceX 50A 2-6s 4-in-1 ESC Dshot1200
  • – XING CAMO X2306 2450KV (4S )/ XING CAMO X2306 1700KV(6S)
  • – Caddx.us Ratel 2.1mm FPV cam
  • – Nazgul 5140 propellers
  • – Weight: 384.2 (without GoPro TPU mount)

SucceX F7 TwinG BT Flight Controller

  • – MCU:216MHz STM32F722RET6
  • – Gyro: 2x ICM20689(SPI)
  • – Baro: Yes (Altitude on your OSD)
  • – Betaflight OSD:YES
  • – Bluetooth wireless adapter (Antenna integrated, can be linked to the SpeedyBee smartphone app)
  • – Blackbox: Onboard 32MB
  • – 5x Uarts
  • – 8x Motor outputs
  • – 8-pin 4in1 ESC port
  • – 4-pin VTX connector

Physical

  • Mounting hole:30.5×30.5mm
  • Size:36x36mm
  • Weight:6.2g

SucceX 50A 2-6S 4-in-1 ESC Dshot1200

  • – Dimension: 43*39mm
  • – Mounting Holes: 30.5*30.5mm/Φ3mm
  • – Weight:14.4g
  • – Volts input: 2-6S
  • – STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
  • – Current sensor: Yes
  • -Telemetry:Supported
  • – BEC: No
  • – Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
  • – Target: iFlight-BL32-4IN1

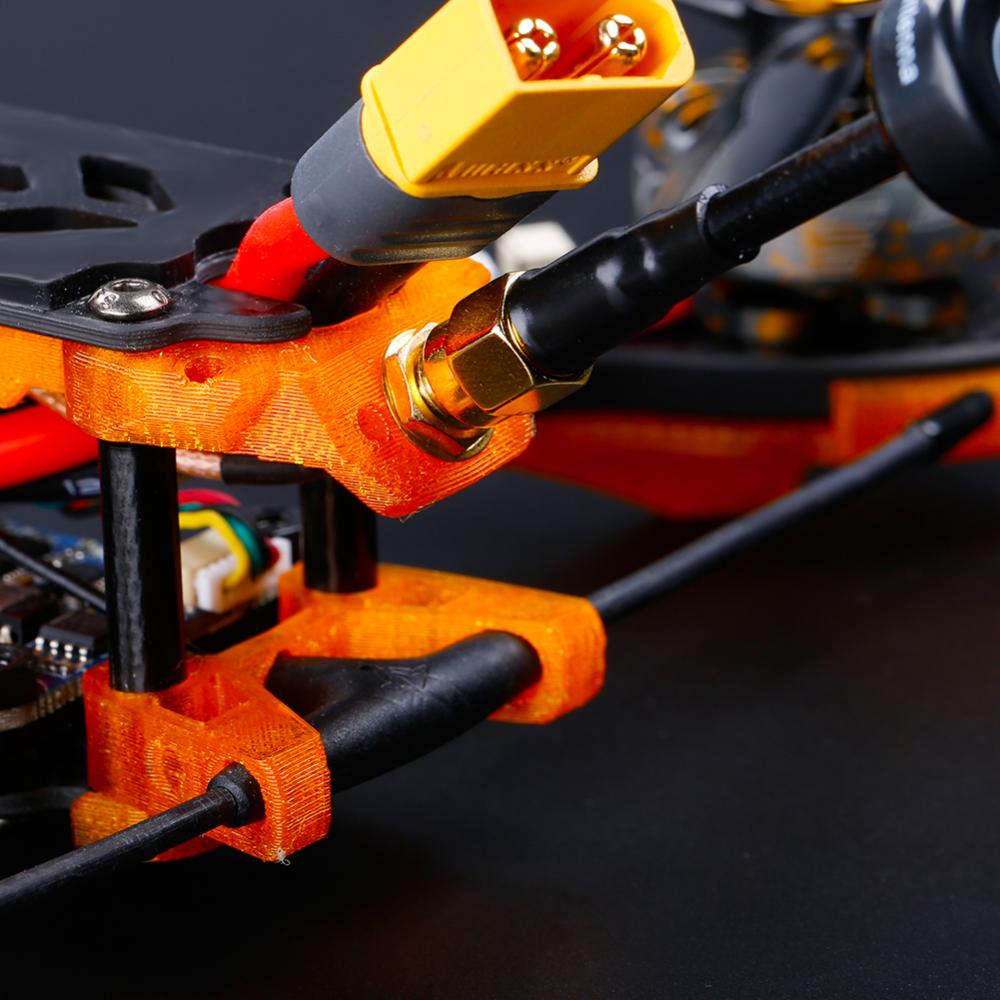

5.8G 1000mW VTX

  • – Tramp telemetry with OSD/Lua script frequency and output power control
  • – Stable power transmission, ideal for long range flights
  • – Power settings 25mW/200mW/400mW/800mW/1000mW;
  • – 48 Channels including Raceband
  • – Frequency fast lock, soft start to reduce interference with other pilots
  • – Built-in output power self-check function;
  • – Full format video format: NTSC /PAL;
  • – Wide input voltage range. low power consumption:
  • – 7V~28V,+12V/500mA@1000mW;
  • – Small size: 36mm×36mm×8mm;
  • – Mounting holes 4-M3



Banggood >>> iFlight Cidora SL5 : Version 4S (244,11€) / Version 6S (254,06€)
