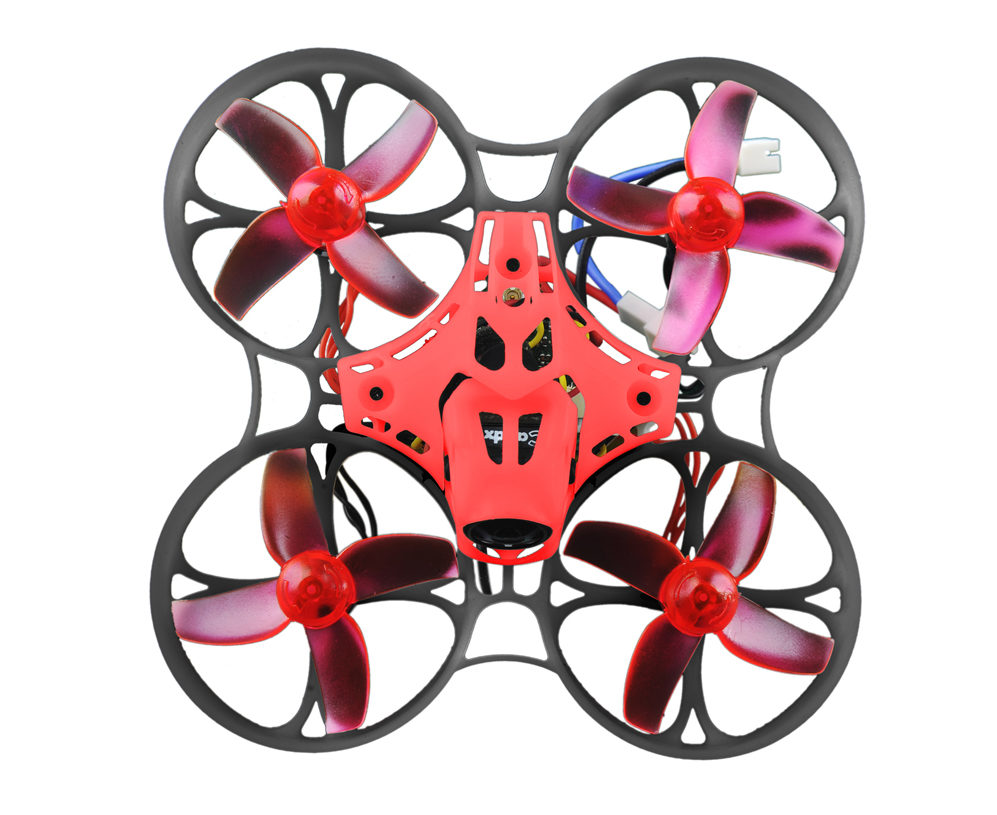

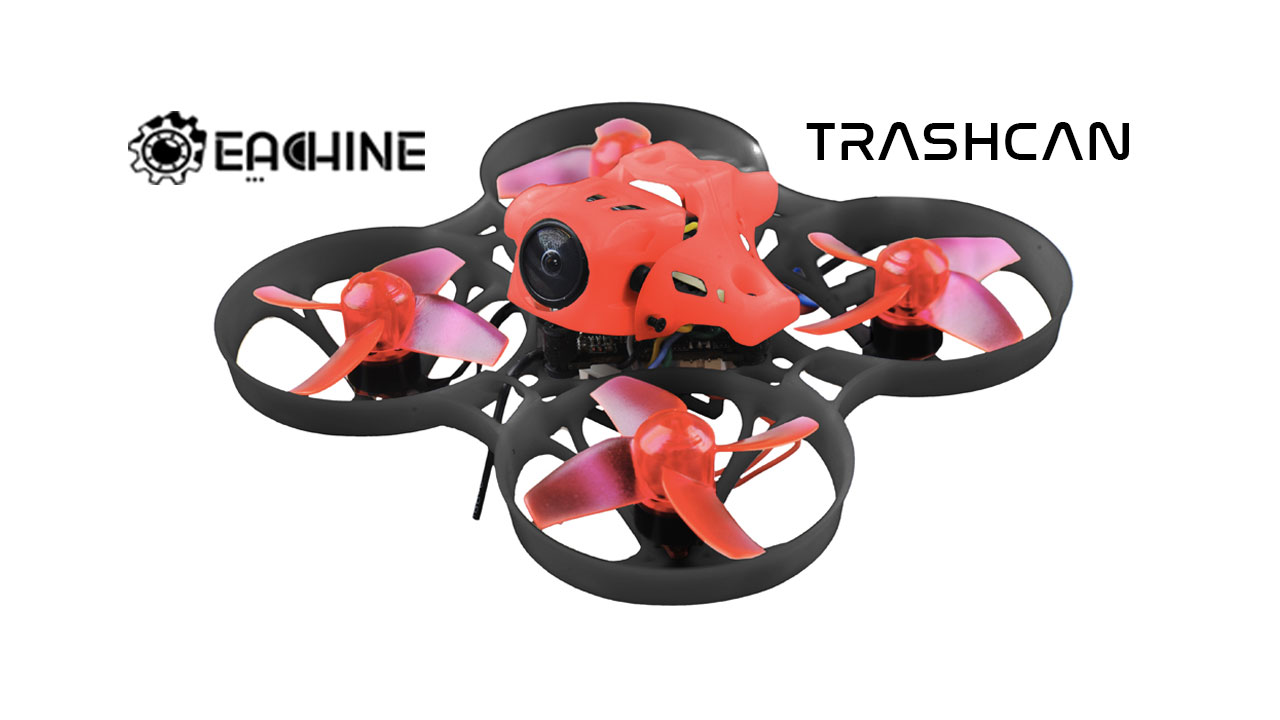

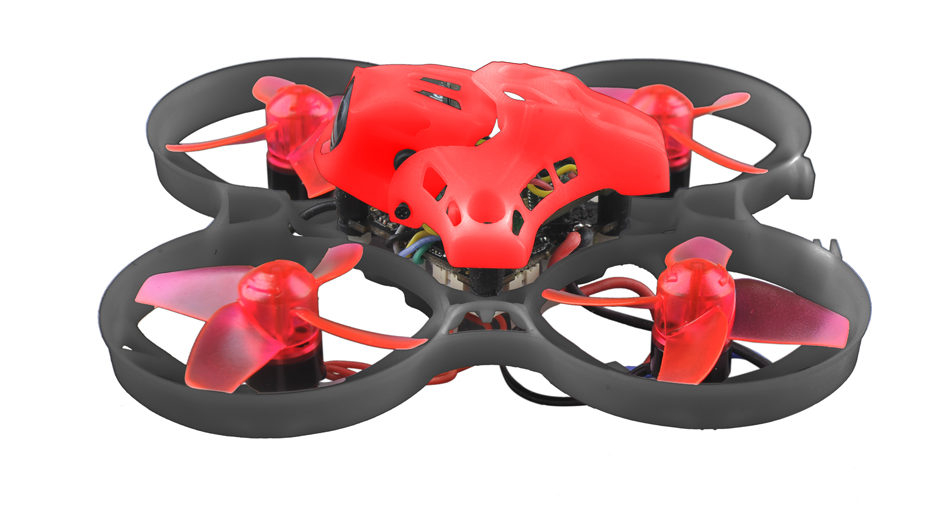

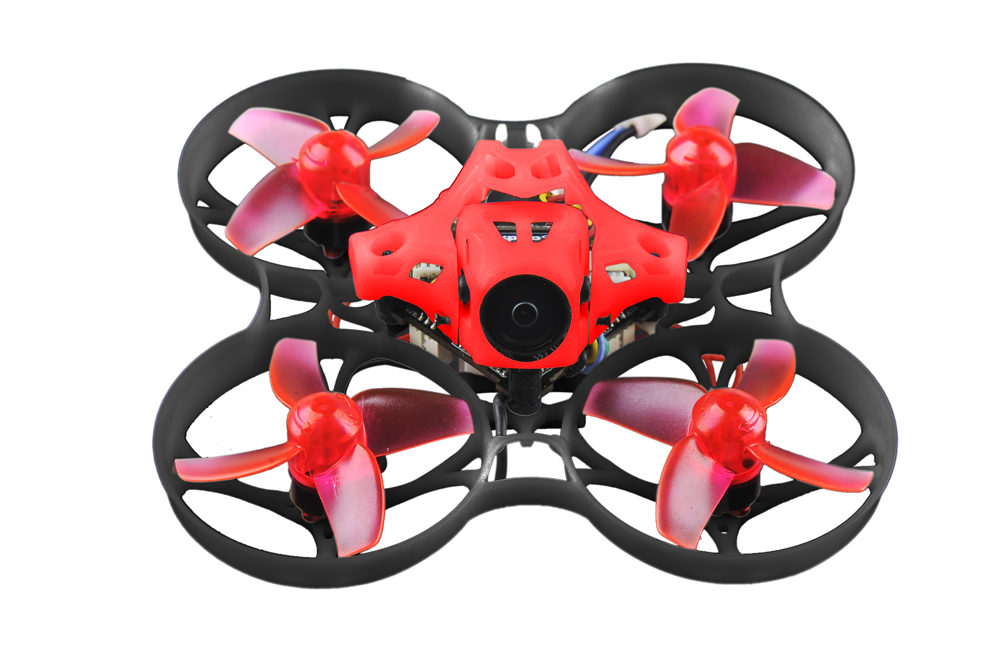

Eachine TRASHCAN 75mm

75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos2 Adjustable Camera - Compatible Spektrum DSMX/DSM2 Receiver

33
TRASHCAN 75mm
Eachine TRASHCAN 75mm

Specifications:

  • Brand Name: Eachine
  • Name: TRASHCAN
  • Item Name: 2S
  • Brushless Whoop racer drone BNF/PNP
  • Wheelbase: 75mm
  • Size: 98mm*98mm*36mm
  • Weight: 33g(without battery)
  • Weight:48g(with Original 1s 300mah lipo battery x2)
eachine.com/Eachine-TRASHCAN-75mm
eachine.com/Eachine-TRASHCAN-75mm

Spare parts specifications:

Motor Mode: TC0803 KV16000
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 3mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.5mm
Weight(g): 2.2g
No.of Cells(Lipo): 1S-2S
Flight controller (Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS
(DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX
(No RX version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Taillight LED Ready
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 6A continuous peak 7A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
Frsky NON-EU receiver Version SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
DSM2/DSMX receiver version Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
VTX Output power: 25/200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smart Audio ready
Weight: 3g
CADDX EOS2 camera 1/3″ CMOS Sensor
1200 TVL
2.1mm lens
4:3 Image size
NTSC
Global WDR
Internal Synchronization
Lipo Battery Capacity: 300mAh
Voltage: 3.8v
Continuous Discharge Rate: 40C
Instantaneous discharge rate: 80C
Size: 55mmx12mmx6.5mm
Weight: 7.8g
Connector: PH2.0
*Notes: Need 2pcs batteries for Series circuit
