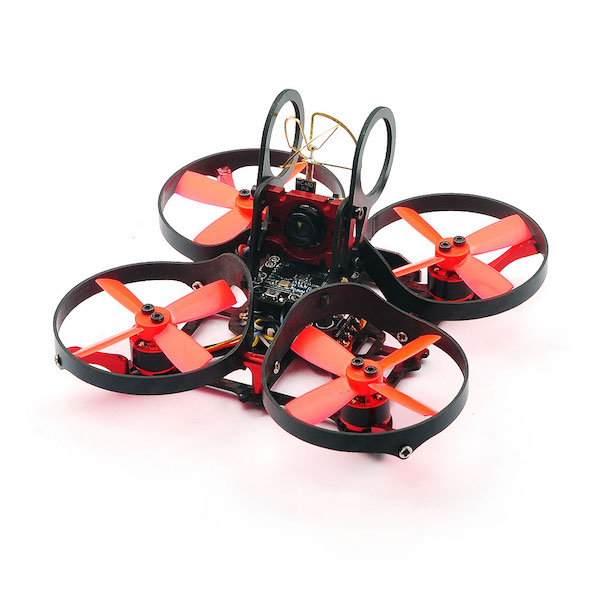

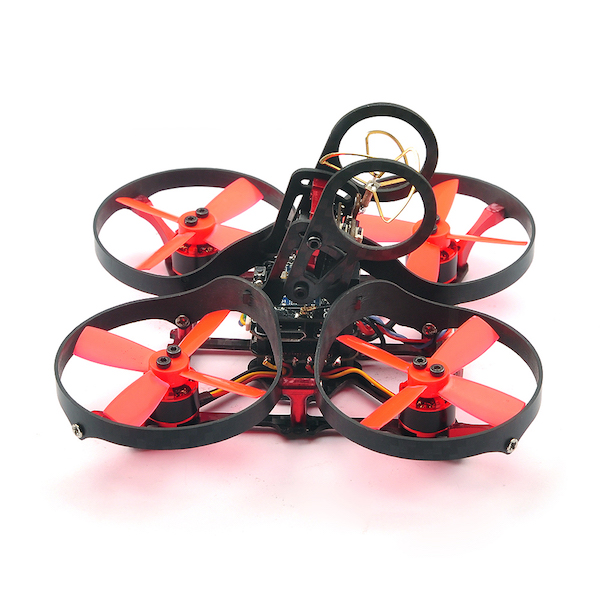

Eachine Aurora 90

68mm Mini 5.8G 600TVL FPV Racing Drone BNF with F3 OSD 48CH 25mW VTX

360

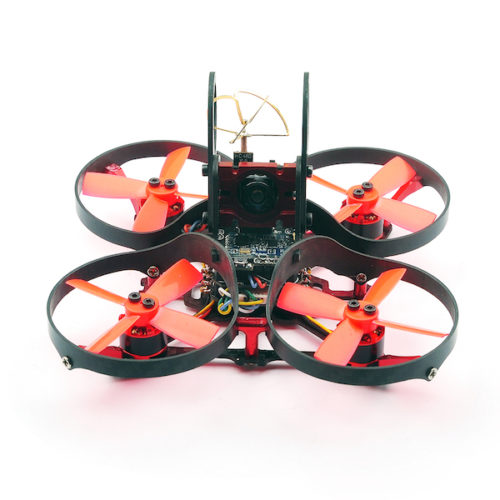

Eachine Aurora 90 FPV
Eachine Aurora 90 FPV

Acheter sur Banggood



Eachine Aurora 90 Drone racer

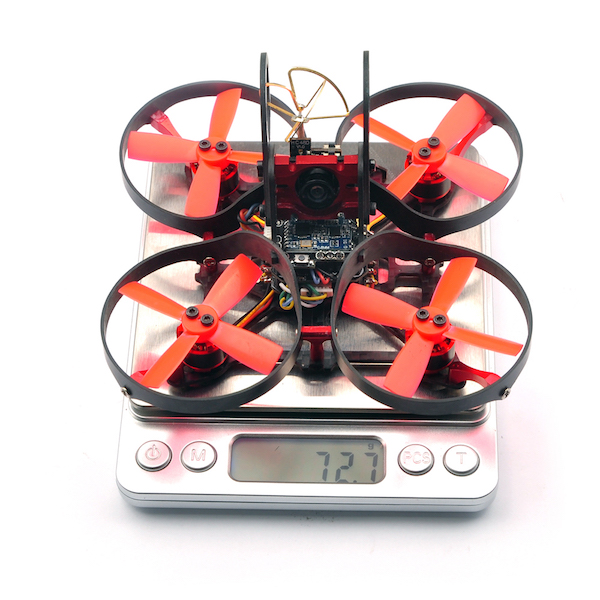

Eachine Aurora 90 poids



Specification:
Brand Name: Eachine
Model: Aurora 68
Item Name: Eachine Aurora 68 68mm Mini FPV Racing Drone

Wheelbase: 68mm
Size: 93mm*93mm*50mm
Weight: 48g( battery not include)
Receiver: ( Optional)
-Specktrum DSM2/DSMX Compatible receiver
-Flysky 8ch AFHDS2A receiver
-Frsky SBUS D8 mode receiver (RSSI Output)
Motor: Eachine 1102 KV11500 brushless motor
ESC: 10A BLHELI_S 16.5 1-2S 4 in 1 ESC Dshot600
Propeller: 38.1mm 4-blades propeller
Camera: 600TVL HD CMOS 1/4 inch
VTX: 5.8g 25MW 48CH NTSC/PAL video transmitter
Flight Control: Minicube F3 Flight controller built-in OSD
OSD: Betaflight OSD
Firmware of flight controller: Betaflight 3.1
Flight time : 3 minutes

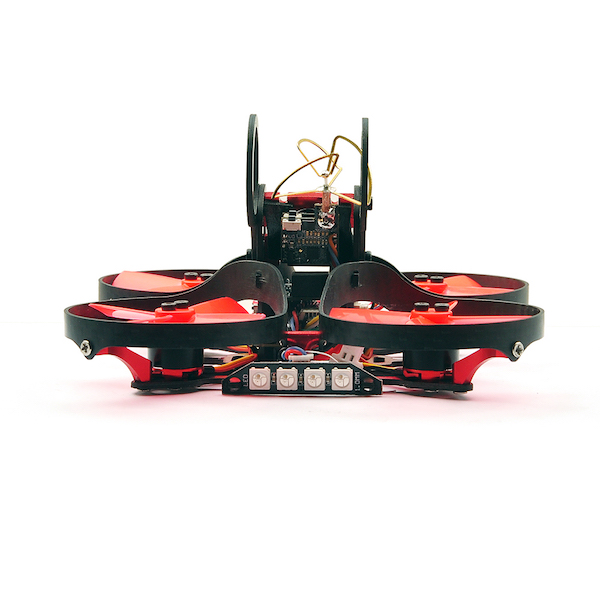

Rear LED Ready (LED_Strip function)
Buzzer Ready
Battery: 7.4V 400mah 40C lipo battery

Flight controller Specification:
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Processor: STM32 F303 MCU
-Sensor: SPI Sensor MPU6000
-Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
-Firmware version: Betaflight 3.1 Dshot ready
-Target: OmnibusF3
ESC specification:
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Firmware version: BLHELI_S 16.5
– BB2, 48MHZ Chip
-Lipo Battery: 1-2S
-Con. Current: 10A
-Peak Current: 15A (10S)
-BEC: 5V @0.1A
-Programming: YES
-Betaflight passtrough ready
-Dshot600 ready(Default)
-Support oneshot42 oneshot125 Multishot Dshot
-Damped light on
