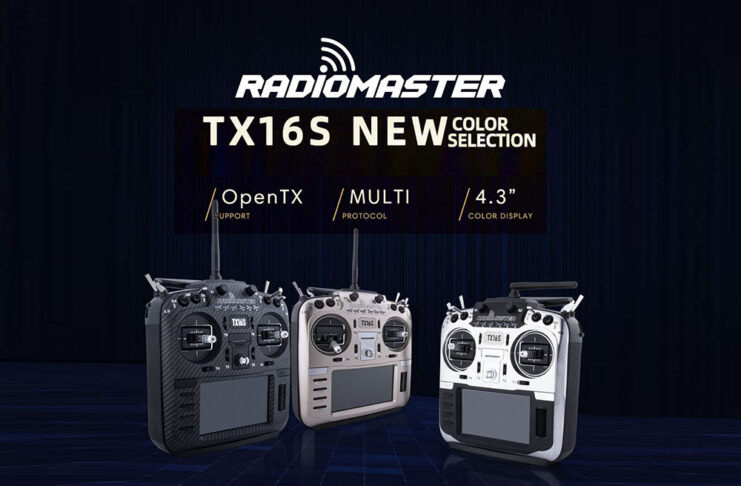

RadioMaster TX16S
RadioMaster TX16S
RadioMaster TX16S
RadioMaster TX16S

TX16S Features

  • STM32F429BIT6 MCU
  • Industrial grade 4.3 inch 480*272 outdoor readable color screen
  • Compatible with OpenTX
  • Wheel menu button
  • Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias

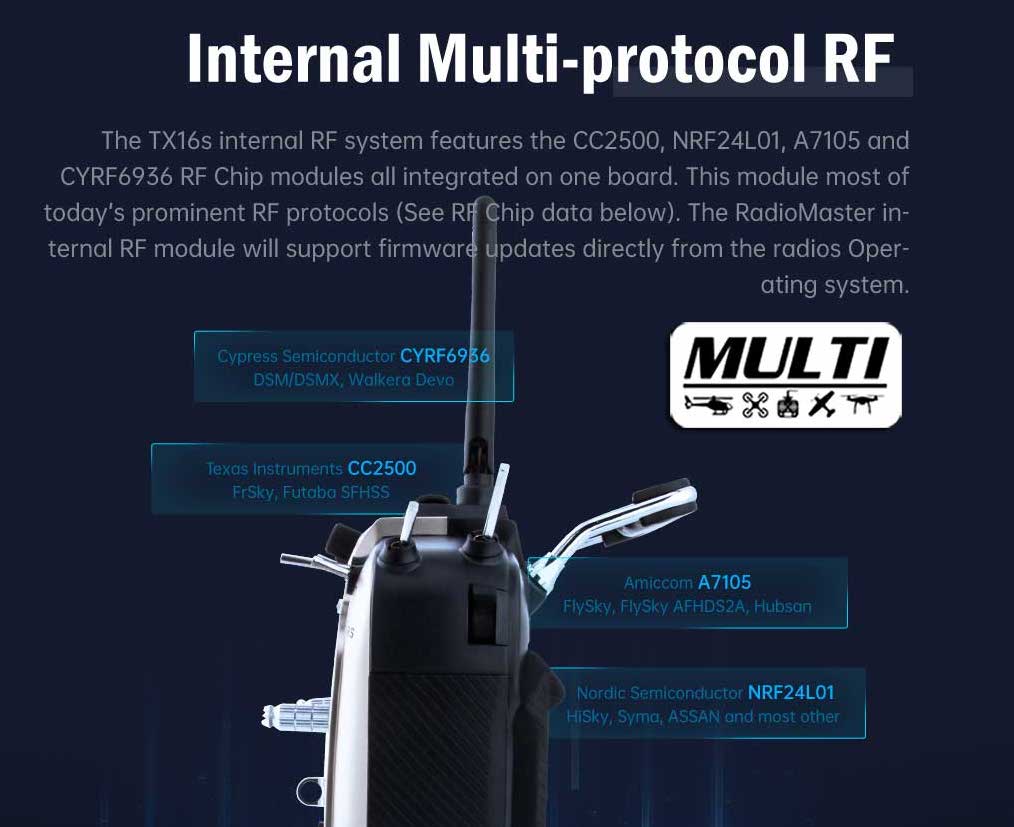

  • Internal Multi-protocol RF System
  • Full Speed Native TBS Crossfire support (400K)
  • Supports Telemetry (Protocol and Receiver dependent)
  • Memory 16M (can be expanded by Micro SD card)
  • Voice function
  • Vibration reminder function

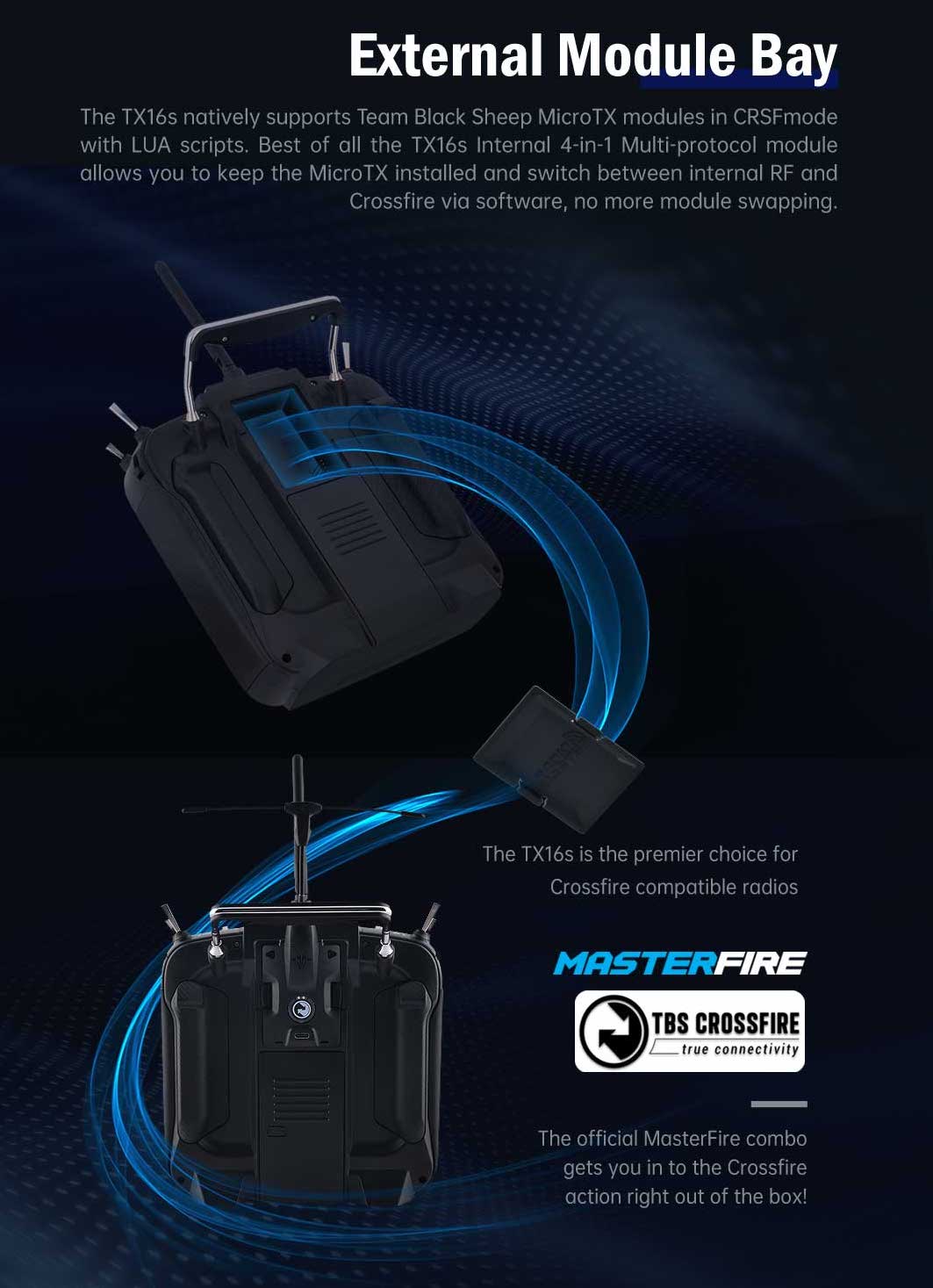

  • Improved JR module slot
  • 6-Flight Mode Buttons (Pixhawk and more!)
  • Three-color LED status display

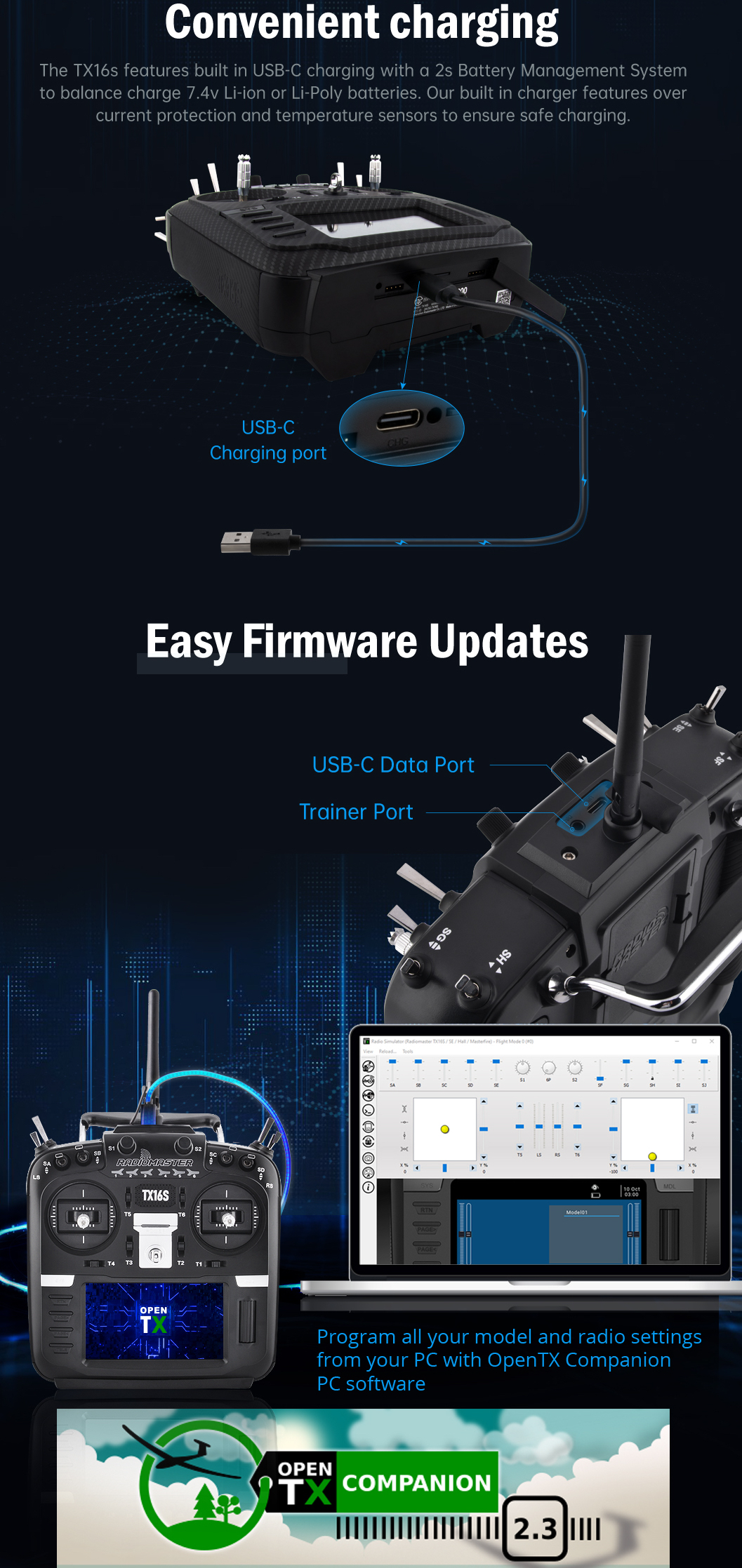

  • USB-C Charging port with 2cell Battery Management. 1.5A Current Max.
  • USB-C Simulator and PC connection port.
  • External UART ports to expand the capabilities of your radio.







SPECIFICATIONS

  • Size: 286.9*128.9*183.8mm
  • Weight: 750g (without battery)
  • Working current: 350mA@8.4V
  • Working voltage: 5.5-18v DC

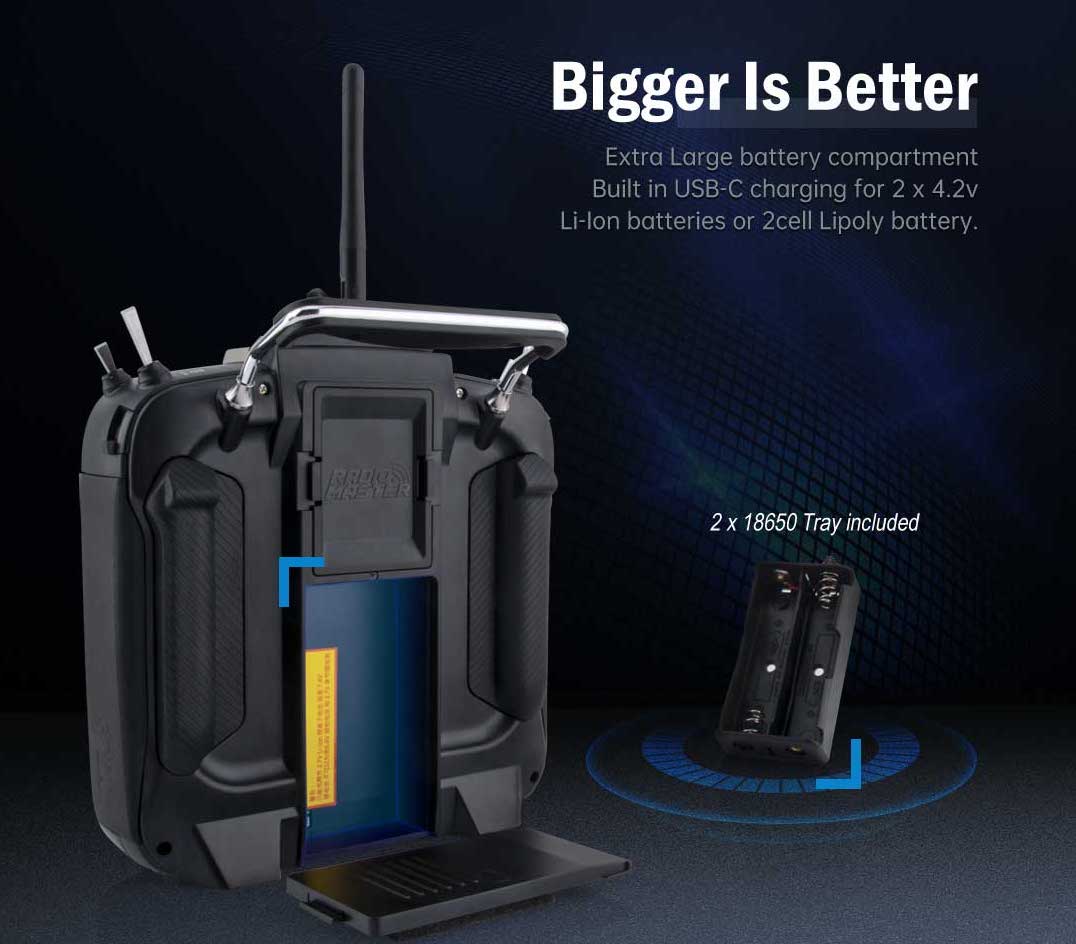

  • Battery Compartment:25*52*97mm
  • Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
  • Current: 400mah (excluding external module)
  • Channel: 16ch
  • External Micro SD slot: Card Included
  • 2 x External UART Expansion Ports
  • Touch Panel Ready

In the box :

Download Firmeware & Manual : radiomasterrc.com/tx16s
