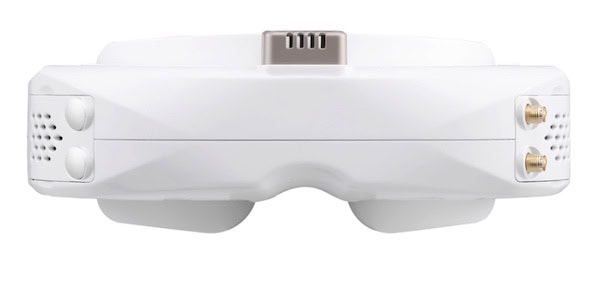

SKYZONE SKY04X OLED FPV
SKYZONE SKY04X OLED FPV
Publicité
Features
  • SteadyView Receiver

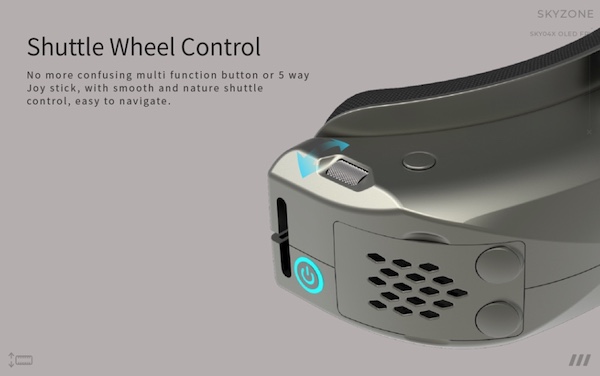

  • Shuttle Wheel Control
  • Focus Adjustment
  • 10 Languages
  • Advance Screen Setting

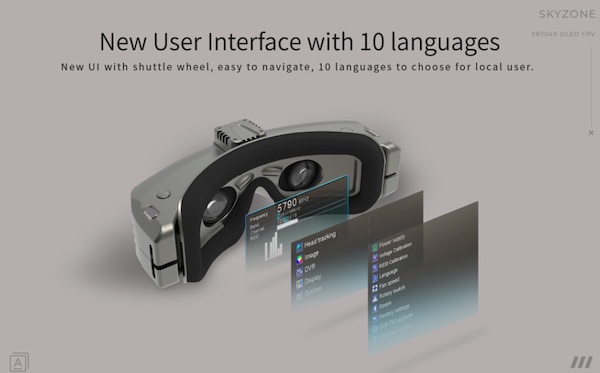

  • New UI
  • Headtracker

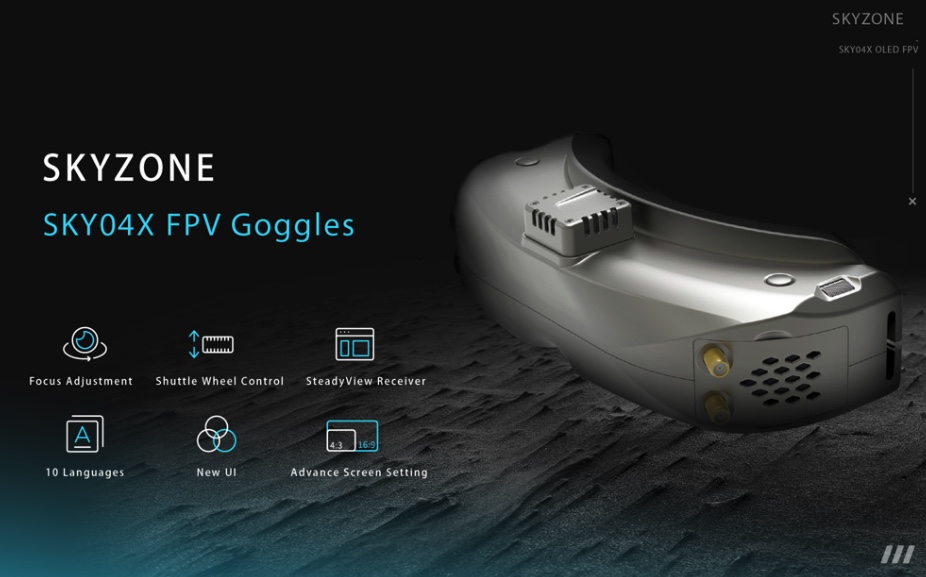

The SKY04X is First skyzone goggle with focus adjustment, the 1280×960 high resolution screen have vivid color and high contrast ration.

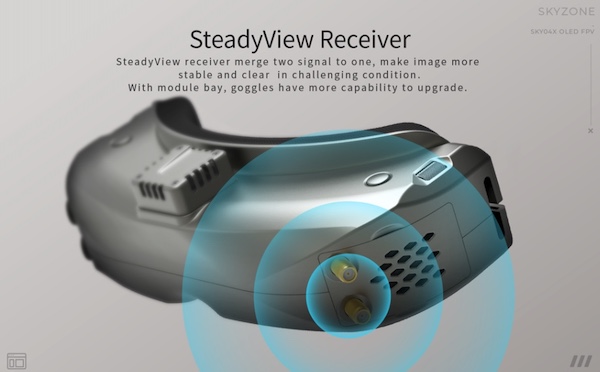

With Steadyview receiver, the receiver merge two signal to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.

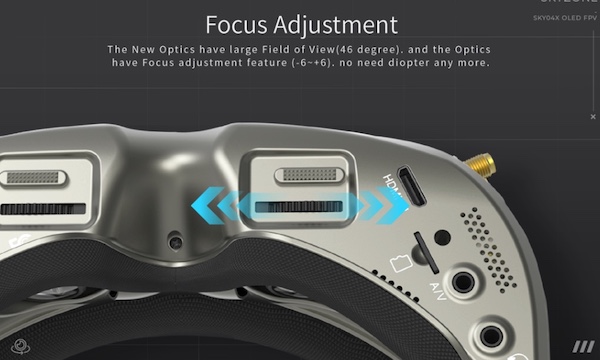

The new designed optics have focus adjustment feature and 46 degree Field of view, gives pilots more immersive FPV experience.

Description:
  • Brand: SKYZONE
  • Model: SKY04X
  • Item: 5.8GHz 48CH Steadyview Receiver 1280X960 FPV Goggles
  • Screen: OLED
  • Resolution: 1280X960
  • FOV (Diagonal): 46°
  • AspectRatio: 4:3/16:9
  • Focus: -6~+6 adjustable
  • Interpupillary distance(IPD): 58-71mm
  • Receiver: 5.8Ghz 48CH Steadyview Receiver
  • Language: 10 Language
  • Power Supply: DC6.5-25.2V/USB5V
  • PowerConsumption: 720mAat12V
  • DVR: H264,30fps,MOV6Mbps,SD Card support up to128Gb
  • Head Tracker: 3-axis Accelerometer, 3-axisgyroscope
  • Dimentions: 185*75*67mm
  • Weight: 267g

Package Included

  • 1x SKY04X Goggles
  • 1x Steadyview Receiver Module
  • 2x Faceplate (wide and narrow)
  • 1x Sponge with velcr0
  • 1x Zipper case
  • 1x Power cable
  • 1x Headtracker cable
  • 2x 5.8GHz 2dB antennas
  • 1x Video/Audio Cable
  • 1x USB-C Cable

USER MANUAL: Click here
