Eachine Tyro89

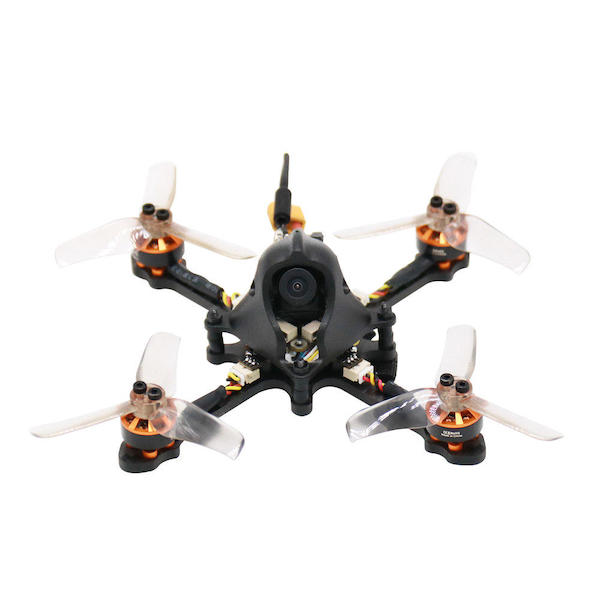

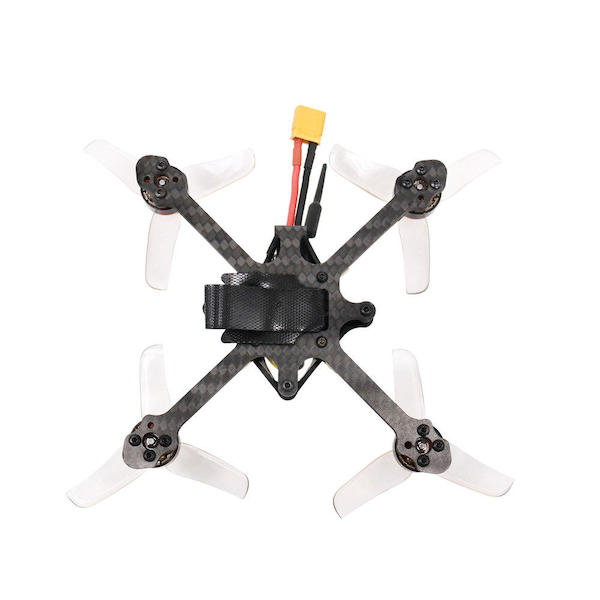

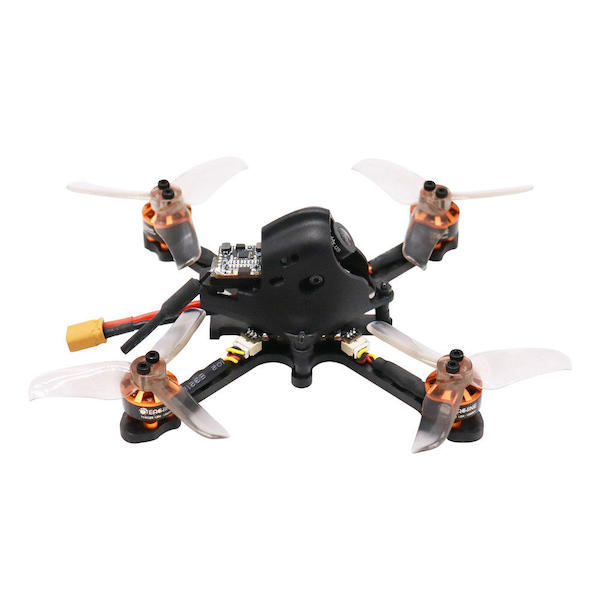

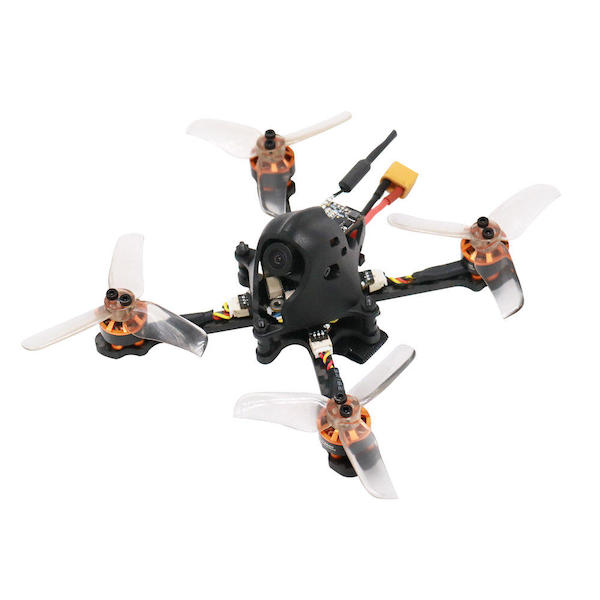

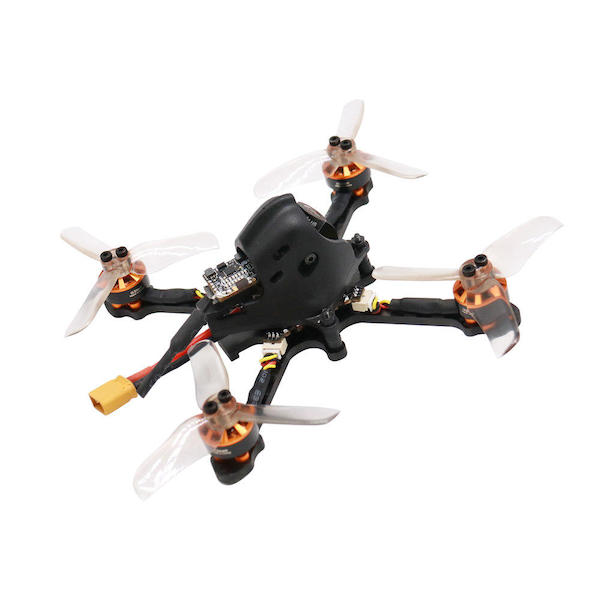

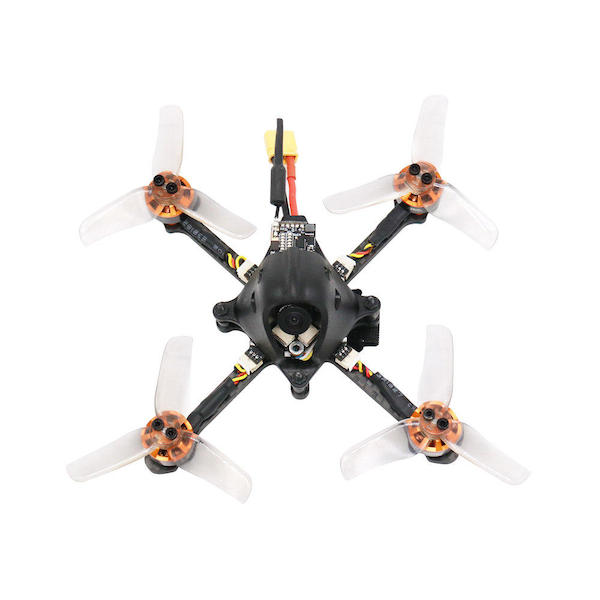

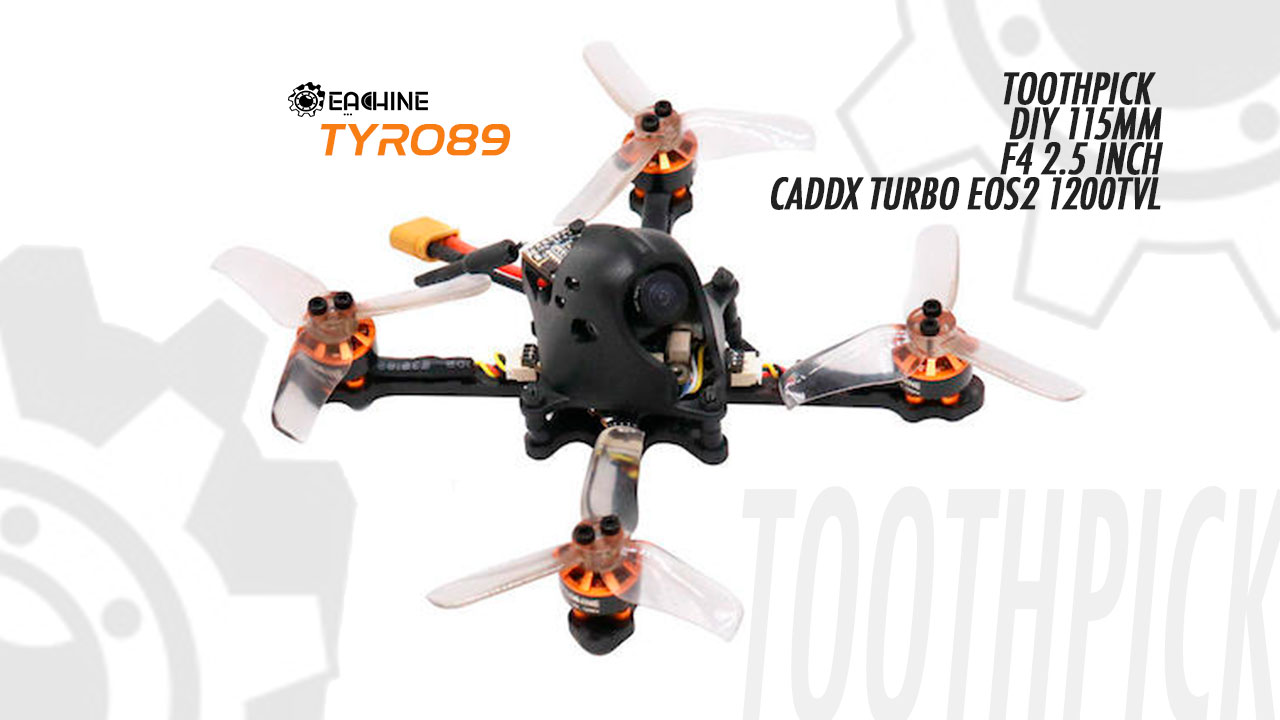

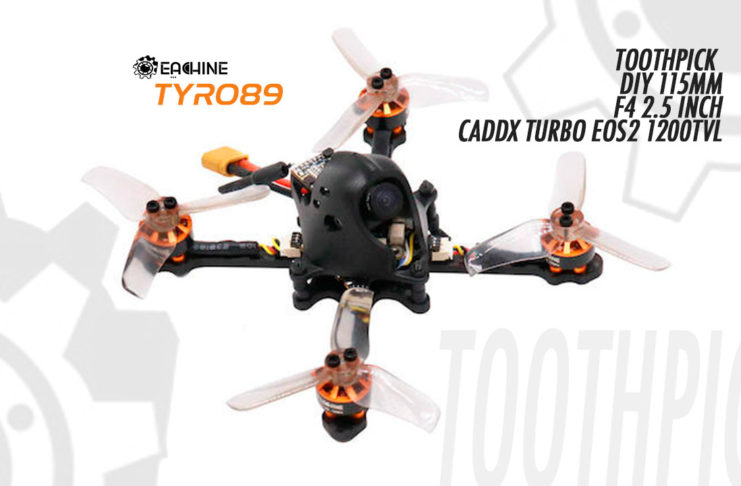

Eachine Tyro89 DIY 115mm F4 2.5 Inch Toothpick FPV Racing Drone PNP w/ Caddx Turbo Eos2 1200TVL Camera

22
Eachine Tyro89 Toothpick DIY
Eachine Tyro89 Toothpick FPV DIY

Toothpick DIY FPV 115mm 2.5 Inch



Eachine Tyro89 F4
Eachine Tyro89 DIY



Item Specification
115mm Racing Frame Kit
Drone Wheelbae: 115mm
Arm Plate Thickness: 3mm
Material: 3K Carbon Fiber
Max. Prop Support: 2.5 Inch
Motor Mount Hole: 9mm
1204 6000KV  2-4S Motor
KV: 6000KV
Lipo cell: 2-4S
Weight: 6.2g
Maximum power: 148W
Configu-ration: 9N/12P
Shaft Diameter: 1.5mm
Motor Stator Diameter: 12mm
Motor Stator Thickness: 4mm
Mounting holes distance: 9*9mm
Mounting holes: φM2
20A BLHeli_S 2-4S 4in1 ESC
Continuous current: 20A
Burst current: 23A (3S)
BEC output: NO
Input voltage: 2-4S
Main control chip: EFM8BB21F16G
Firmware upgrade: Supports Dshot150-600/Multishot/Oneshot/PWM
MOS: 3X3
Mounting Hole: 30.5×30.5mm
F411 OSD Flight Controller
Main Chip: STM32F411
IMU: MPU6000 6-AIX Sensor
Integrated with OSD
Input Voltage: 2-4S Lipo
BEC: 5V 2A
Support DSMX/ IBUS/ SBUS Receiver UAR Share: UART1-RX
Mounting Hole: 20x20mm
Weight: 3.3g
– Plugs connector / Soldering Pads are Optional for all connector Port
Caddx Turbo Eos2 1200TVL Camera
FOV: 160°
DNR: 2DNR
WDR: D-WDR
Lens: 2.1mm
TV System: NSTC
Latency: min 3ms
Resolution: 1200TVL
Illumination: 0.005LUX
Schutter: Rolling Schutter
Power Input: 3.3V-9V
Image Sensor: 1/3 inch COMS
Aspect Ration:  4:3
Net weight: 5g
Dimension: 14 * 14 * 16mm
Package weight: 41g
Package dimension: 66 * 66 * 32mm
5.8G 48CH 25mW FPV Transmitter
Transmitting power: 25mW
Channel: 48CH
Input voltage: 2.9V~5.5V
Size: 15x14mm
– Onboard mini Antenna
2540 3-Blade Propeller
Mounting hole: 1.5mm
Color: Transparent White
Quantity: 4 CW & 4 CCW
Weight: 2.2g/ Pair
Recommend Lipo Battery ( NOT Included) 4S 350-450mAh Lipo Battery
