HGLRC Petrel132
Le nom du produit à changer de nom de Parrot132 à Petrel 132.
Material: Carbon Fiber
Model: Petrel
Wheelbase:132mm
Type: 3″ Frame
Arm Thickness: 2.5mm
Standoff Height: 23mm
Flight control installation holes: 16*16/20*20mm
Support camera: 14X14mm
Weight: 18g
Receveurs :
- PNP
- FRSKY XM+RECEIVER
- FLYSKY A8S V2 RECEIVER
- FRSKY XM+ US STOCK (2-6 BUSINESS DAYS)
- CROSSFIRE NANO
https://www.instagram.com/p/B1Lk9pvndQI/?utm_source=ig_embed
HGLRC 🦜 Parrot 120 Pro – Review & Flight https://t.co/I5aWOptMKt 来自 @YouTube
— HGLRC (@hglrcfpv) September 10, 2019

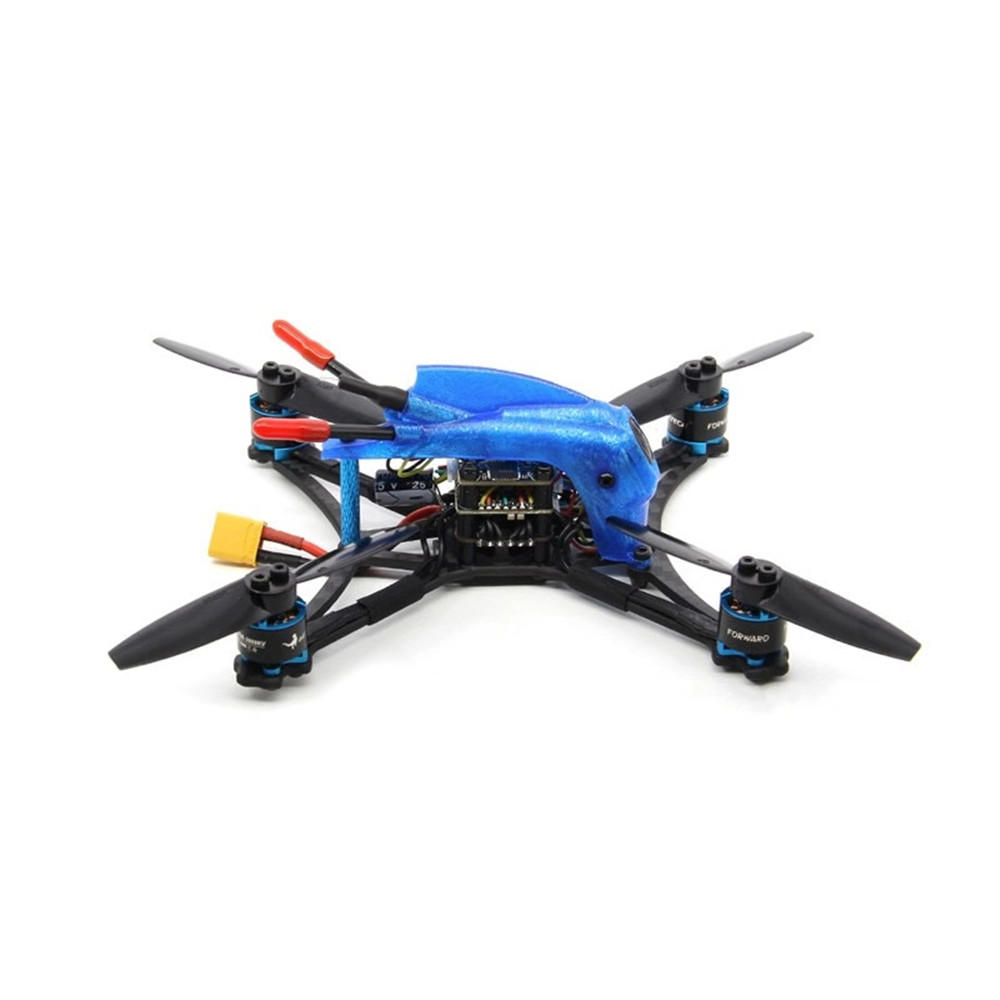

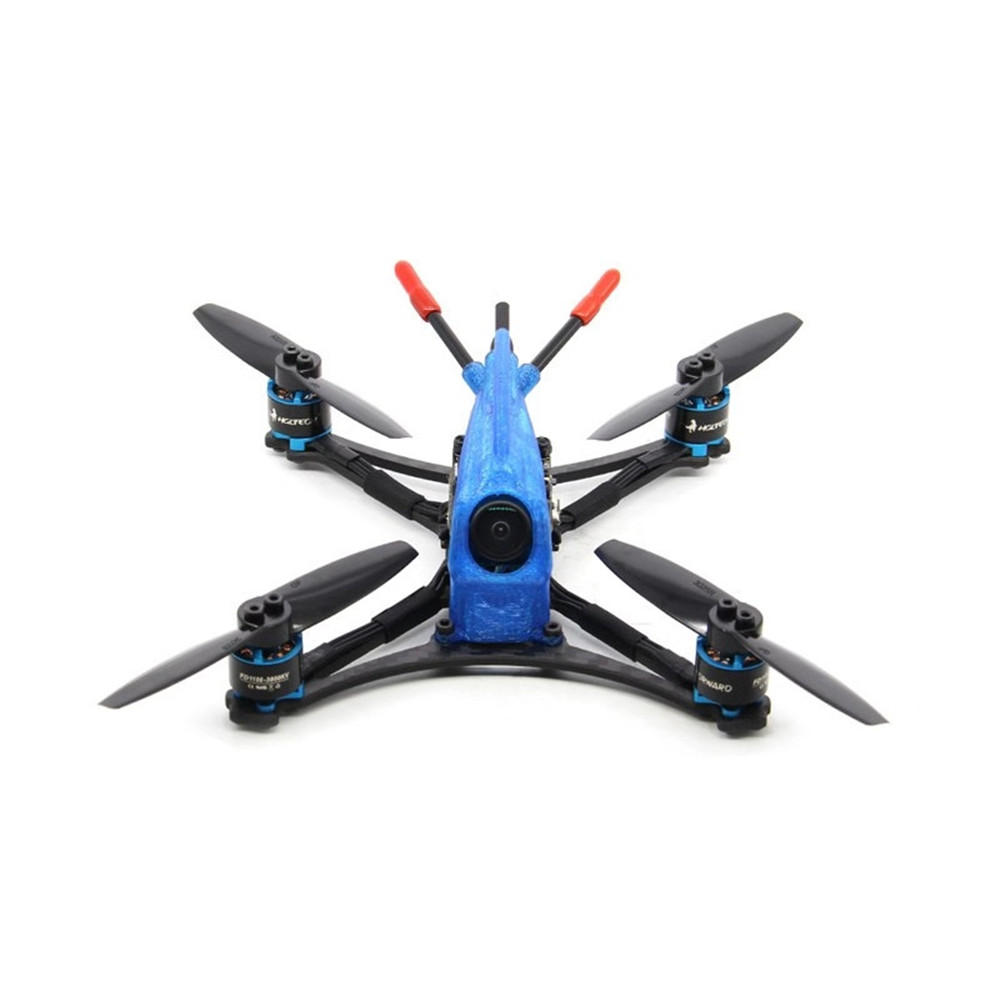

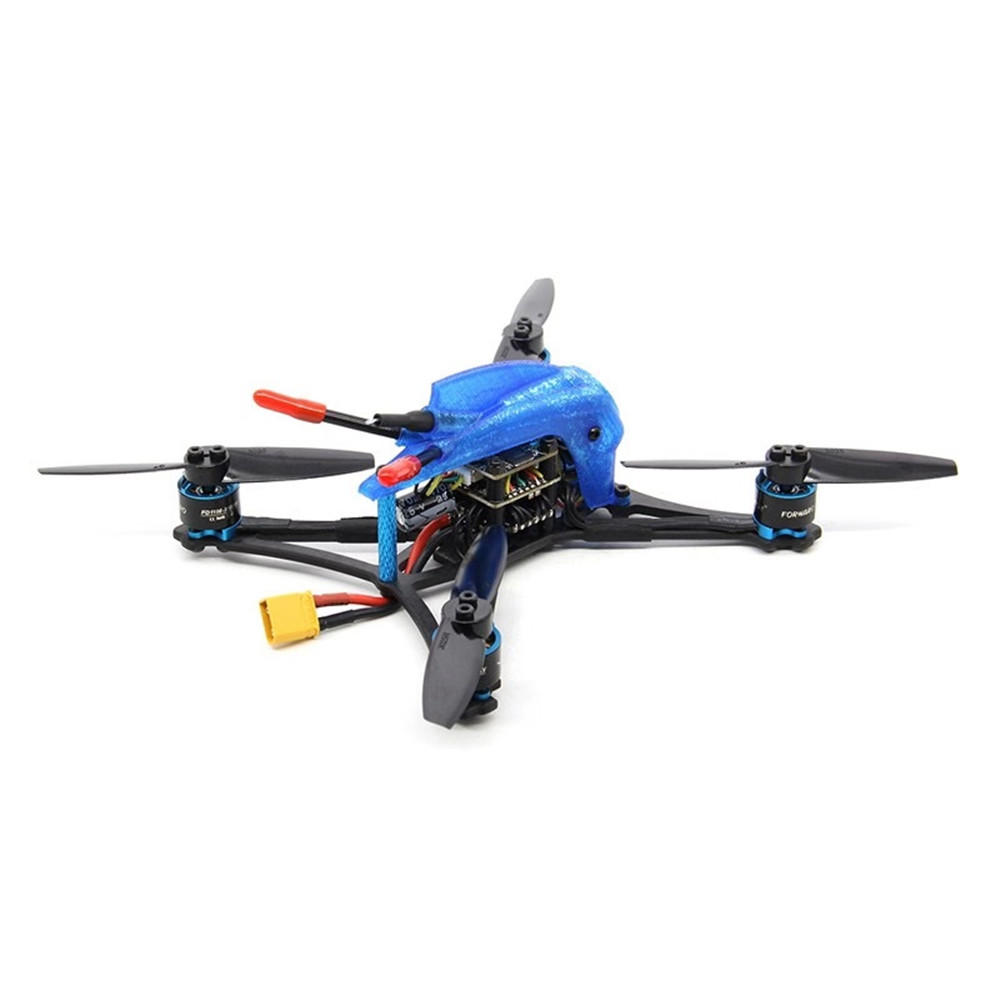

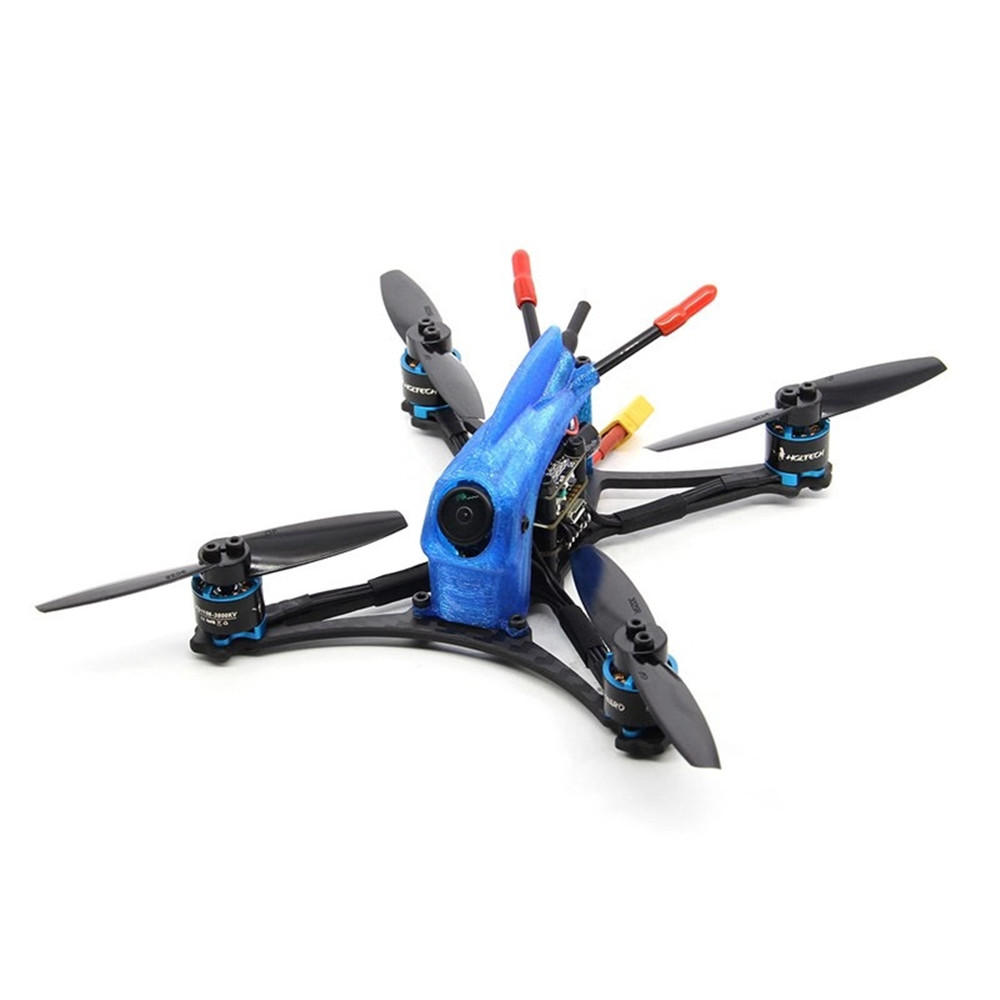

Item Name: HGLRC Petrel132 FPV Racing Drone

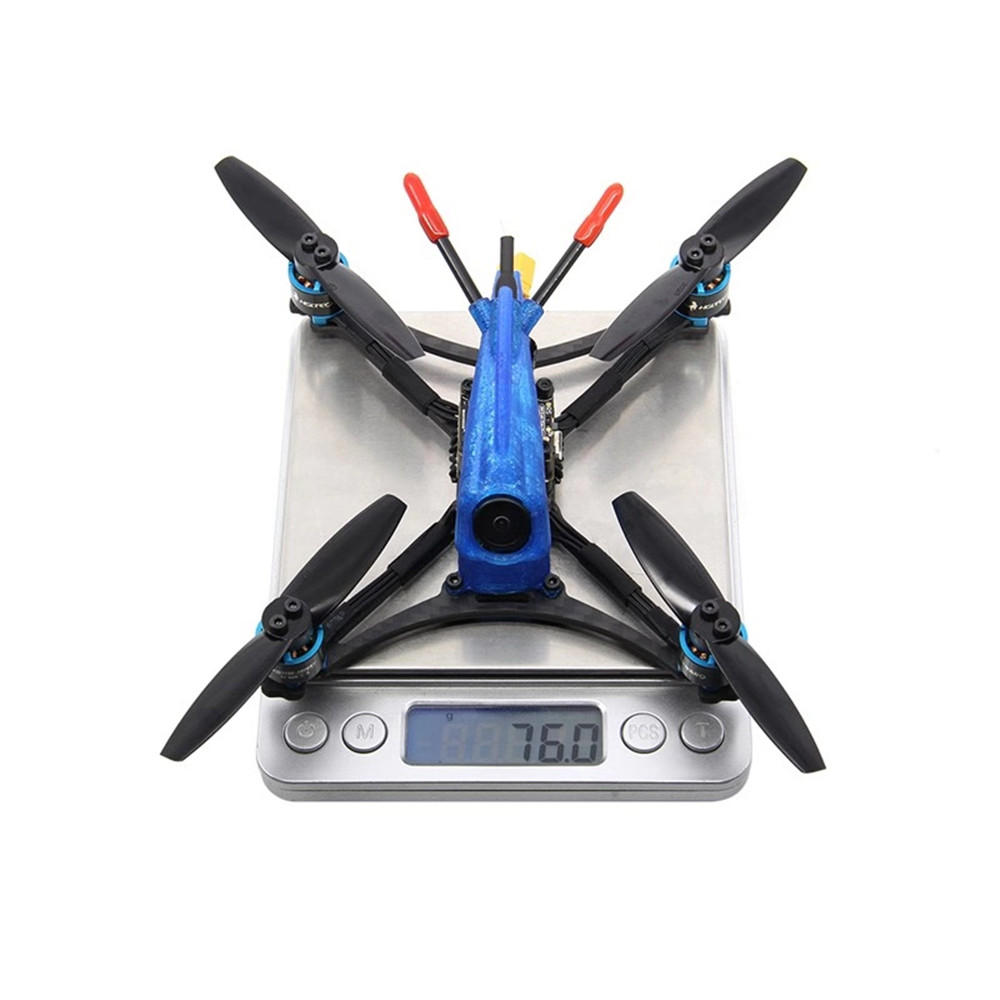

Net Weight:76g(Without receiver)
HGLRC Petrel132 Frame Kit
Material: Carbon Fiber
Model: Petrel
Wheelbase:132mm
Type: 3″ Frame
Arm Thickness: 2.5mm
Standoff Height: 23mm
Flight control installation holes: 16*16/20*20mm
Support camera: 14X14mm
Weight: 18g
HGLRC FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 21x21mm
Installing Hole: 16x16mm, M2
Support SBUS/PPM/DSMX/iBUS receiver
Weight:2.7g
HGLRC FD13A 4in1 BLS 2-4S ESC
Item Name: FD13A 4in1 2-4S ESC
Input Voltage: 2-6S Lipo
Constant Current: 13A
Peak Current: 15A(5S)
BEC Ouput: NO
Size: 23x24mm
Installing Hole: 16x16mm, M2
Weight: 3.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode:DSHOT600/300/150/Oneshot125/42,MultiShot,PWM
HGLRC FD VTX Micro 400mW
Item Name: FD VTX Micro
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Input Voltage: DC 5V
PIT———0dBm——70mA
25mW—–14dBm—–150mA
100mW—-20dBm—–210mA
200mW—-23dBm—–280mA
400mW—-26dBm—–360mA
Installing Hole: 16x16mm, M2
Size: 20x20mm
Antenna: IPEX
Weight: 1.5g
Caddx.us Turbo Eos2 FPV Camera
Item Name:Turbo EOS2
Image Sensor:1/3″ CMOS
Horizontal Resolution:1200 TVL
TV System:NTSC / PAL option
IMAGE:16:9
Synchronization:Internal
Electronic Shutter:PAL: 1/50-100,000
NTSC: 1/60-100,000
S/N Ratio: >52dB (AGC OFF)
Video Output:CVBS
Lens:2.1mm
Auto Gain Control:YES
BLC: YES
WDR:Global WDR
DNR:2 DNR
Dimensions:14mm »14mm*16mm
Input Power:DC 3.3-6V
Working Temperatur:-20℃~+60℃
Work Humidity:20%~80%
Net weight:3.5g
FD1106 3800KV Brushless Motor (3-4S)
Motor:KV 3800KV
Stator Diameter:11mm
Stator Thickness:6mm
No.of Stator Arms:9S
No.of Rotor poles:12P
Motor Resistance:290mΩ
Max Continuous Current:6.37A
No.of Cells(Lipo):3-4S
ESC:13A
Recommended Prop(inch):2.5 Inch
Wire type:28AWG x 80mm
Weight:6g
Gemfan 3025 2Inch 2-Blade Propeller
Quantity: 3 CW & 3 CCW
Package Included:
1x FD 411 Flight Controller
1x FD13A 4in1 BLS ESC
1x FD VTX Micro
4x FD1106 3800KV Brushless Motor
1x Petrel132 Frame Kit
1x Caddx.us Turbo Eos2 FPV Camera
6x Gemfan 3025 propeller
1x IPEX Antenna
1x Receiver(BNF Version)
Retrouvé tous les produit
Petrel sur leur site officiel
