Eachine Twig 115mm Toothpick

3 Inch 2-3S FPV Racing Drone BNF Frsky D8 Crazybee F4 PRO V3.0 Runcam Nano2 / Caddx Baby Turtle HD Cam - Runcam Nano2 Version

26

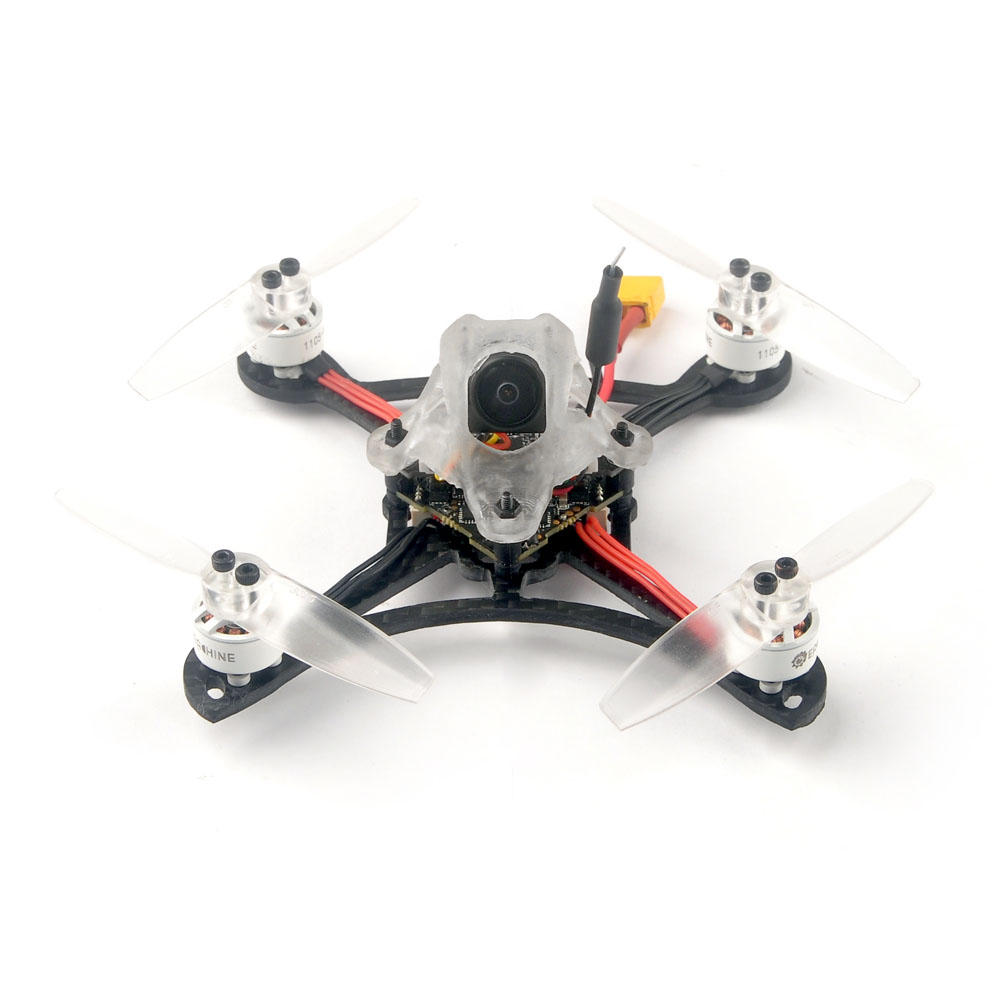

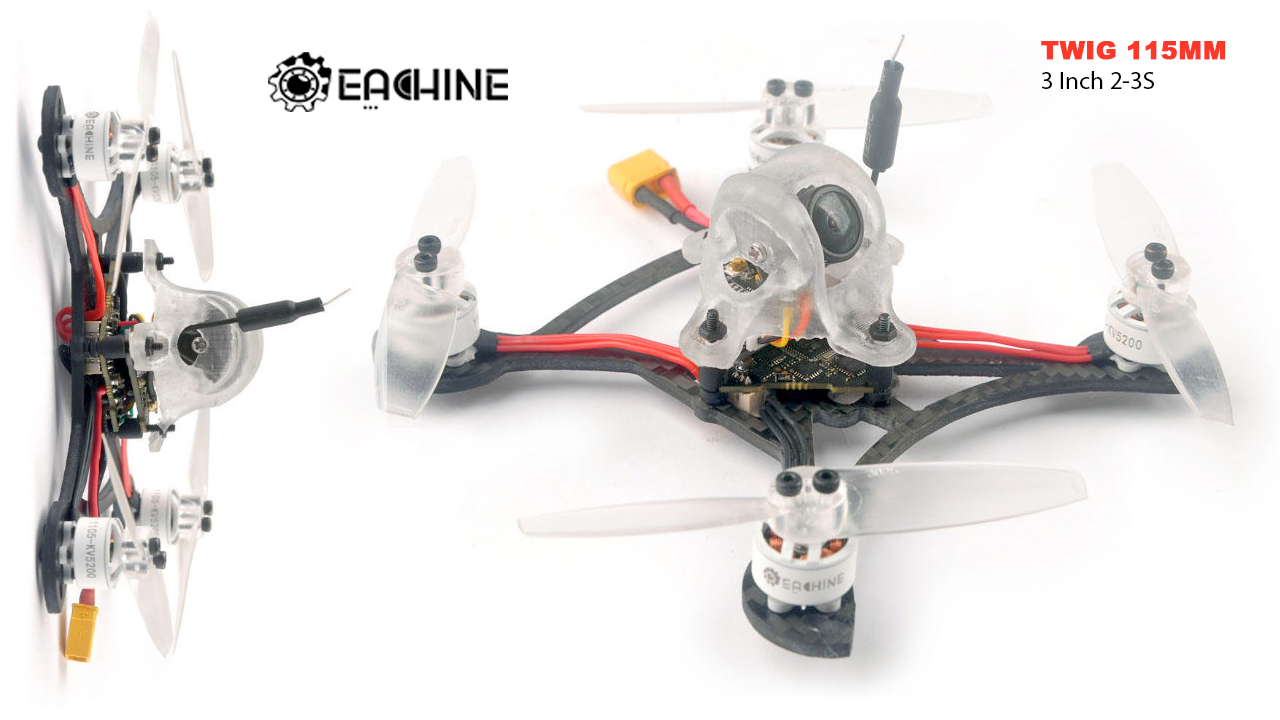

Eachine Twig 115mm - Toothpick FPV
Eachine Twig 115mm - Toothpick FPV

Runcam Nano2 / Caddx Baby Turtle HD Cam



Specifications:
Brand Name: Eachine
Item Name: 115mm Twig 3 Inch 3S Brushless FPV drone
Wheelbase: 115mm
Size: 105mm*100mm*45mm(without propellers)

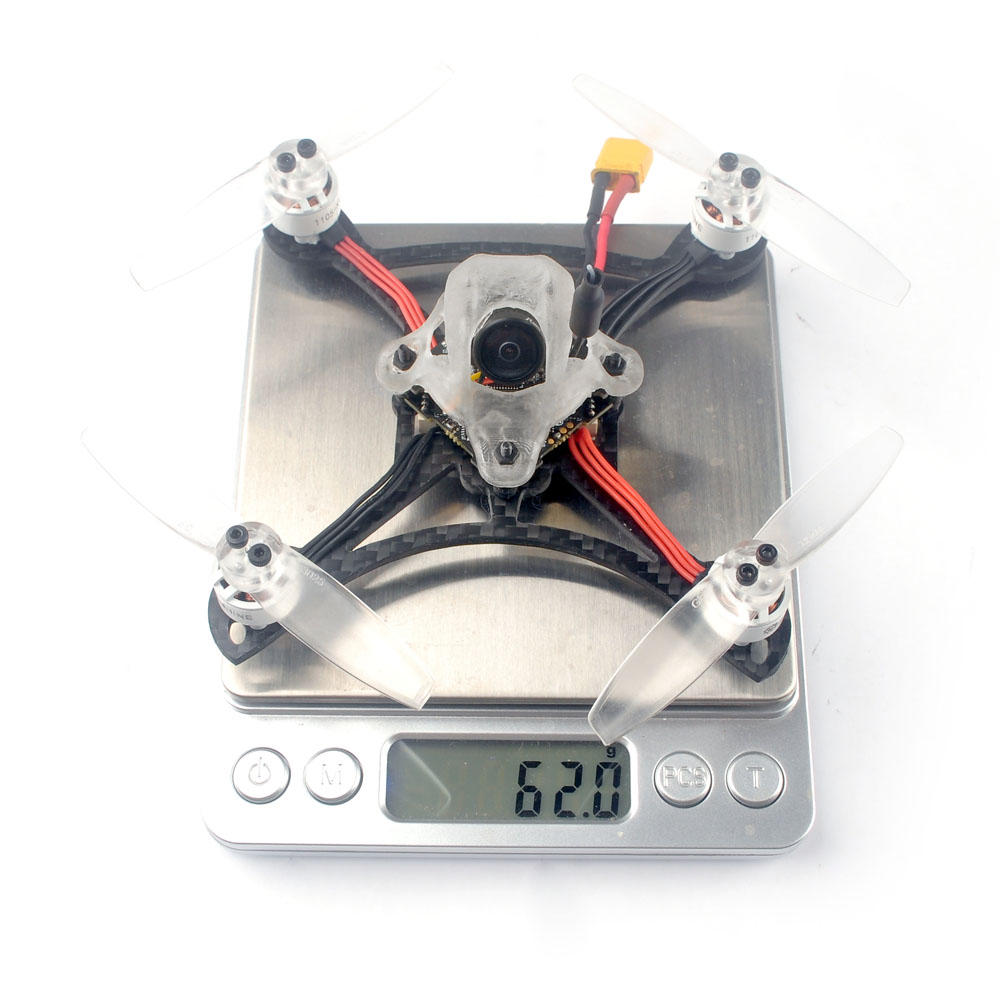

Weight: Twig115 60g(without battery)
Twig115 HD 72g(without battery)

Features:
New Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
Powerful and smoothly
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Built-in SPI Frsky D8 receiver
Compatible both for 2s-3s Lipo/LIHV
Runcam Nano2 version or Caddx Baby Turtle HD version
Support to add external SBUS receiver (Frsky XM+ , RXSR) to get better range by reserved receiver wire.

Spare parts specifications:

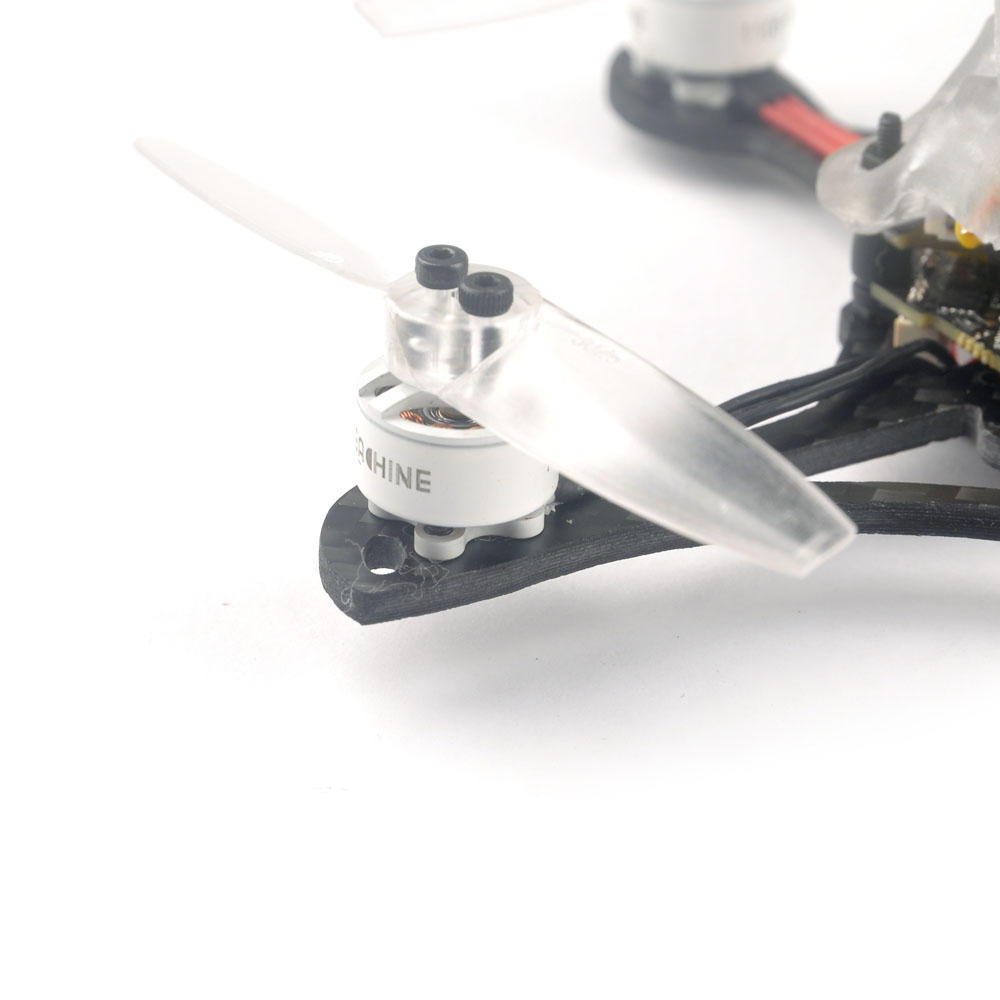

Motor Mode: EX1105 KV5200
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*17mm
Weight(g):5.6g
No.of Cells(Lipo):2S-3S
Flight controller (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry
Could add external receiver on the FC board
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
Frsky NON-EU receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
VTX Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight: 3g
Runcam NANO2 version Model: Nano 2
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm
Caddx Baby turtle version TV system: NTSC/PAL changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)



Package includes:
1 x Twig 115 2.5mm Frame
1 x Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
4 x 1105 KV5200 Motor
1 x Gemfan 3025 3 Inch Propeller(4cw+4ccw)
1 x Camera option1 : Runcam Nano2  / Camera option2:  CADDX Baby turtle
1 x 5.8g 25mw~200mw Switchable VTX
1 x Propeller Disassemble Tool
1 x Screwdriver
