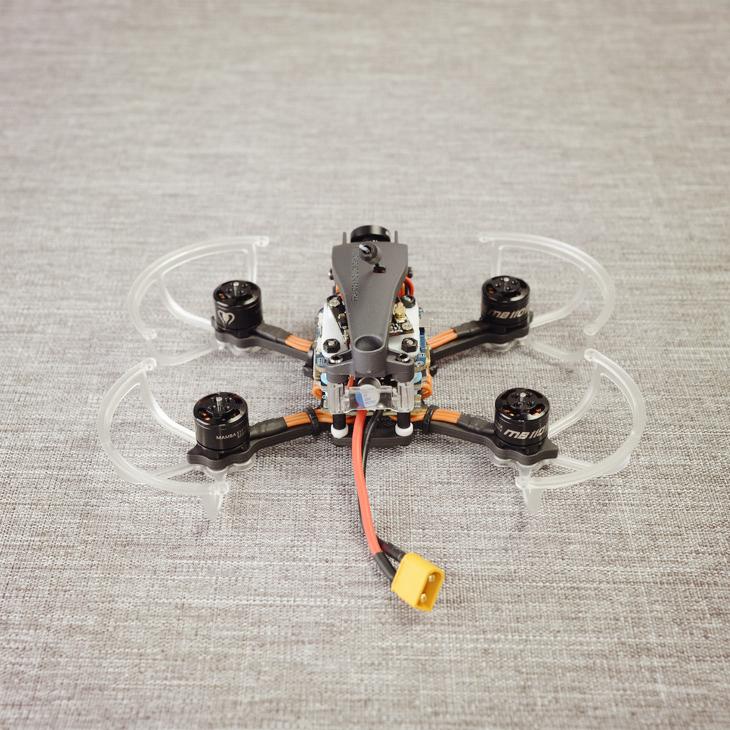

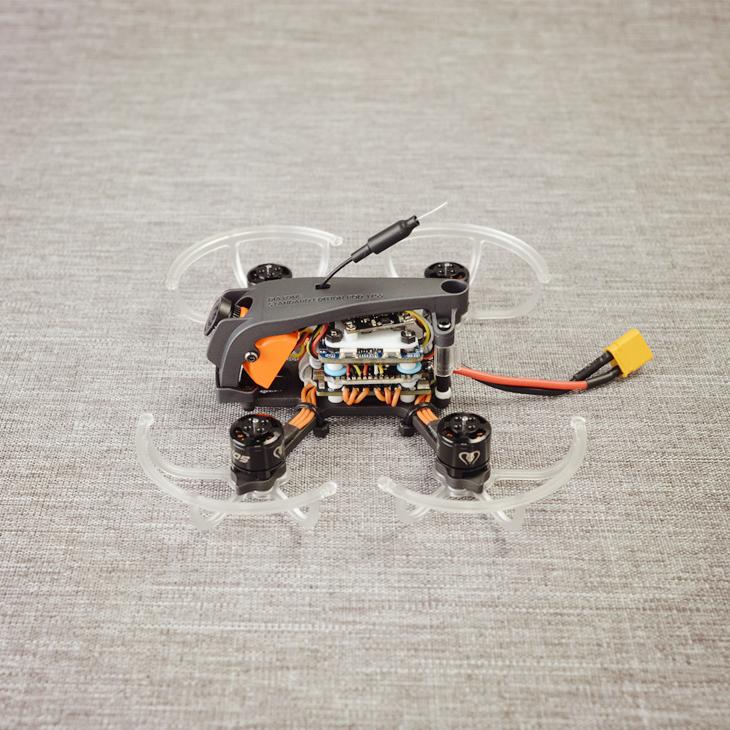

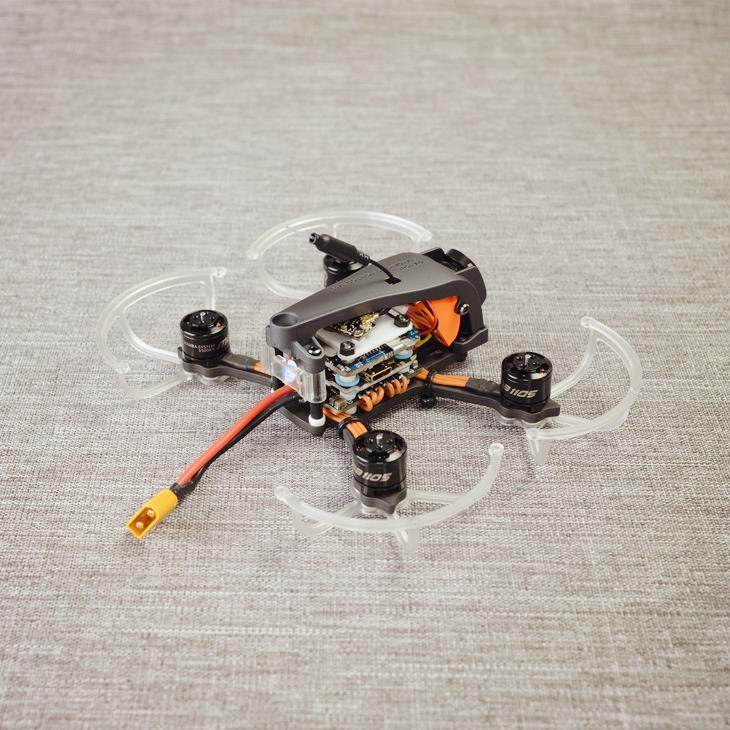

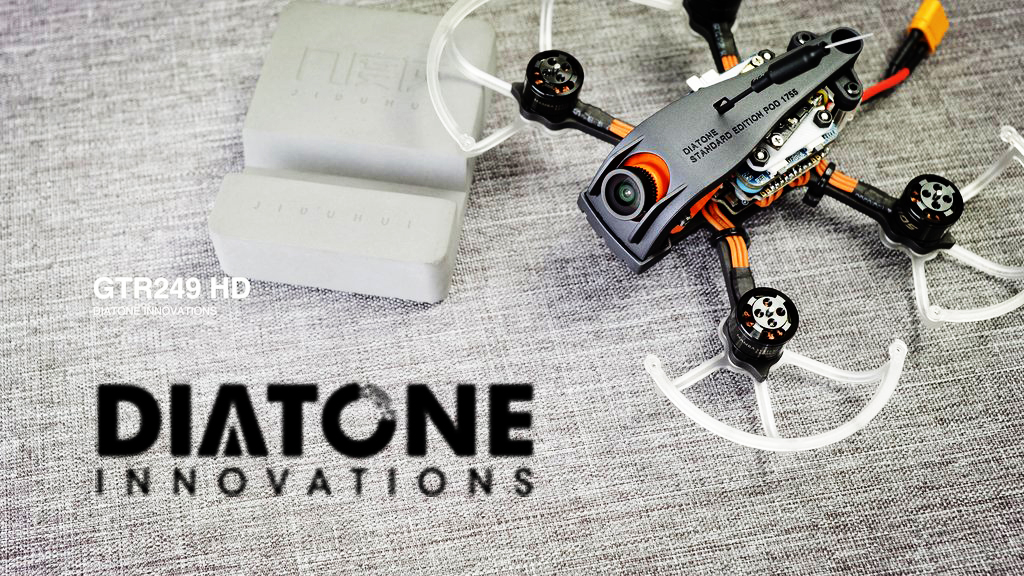

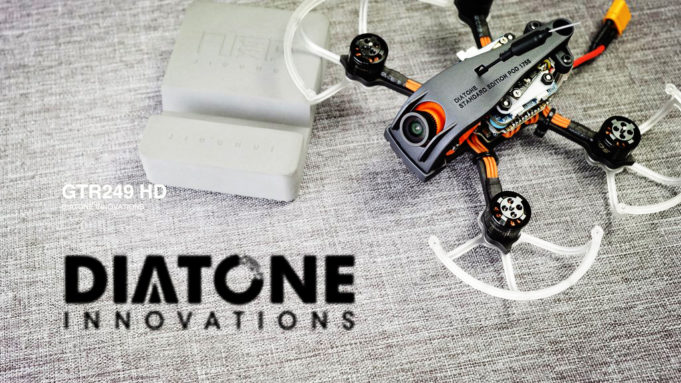

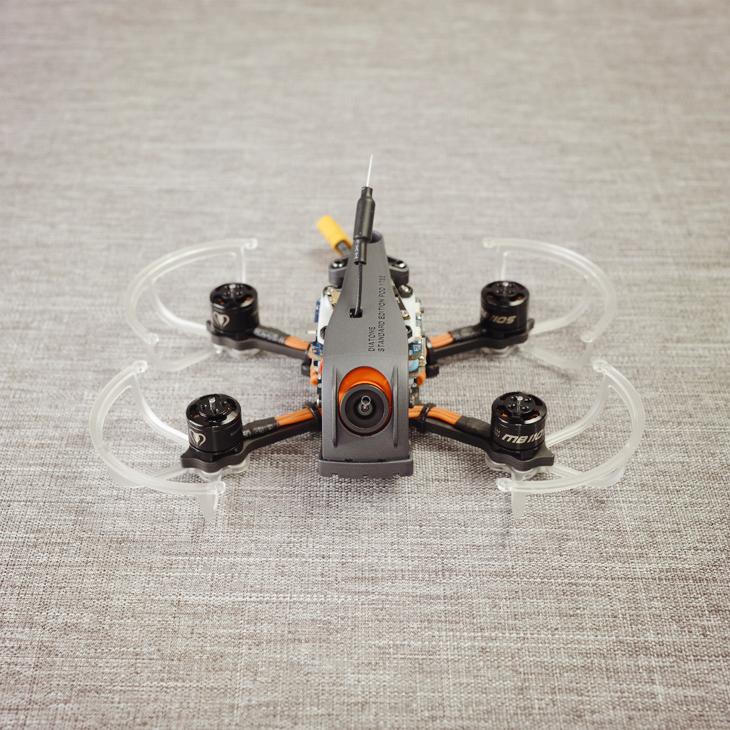

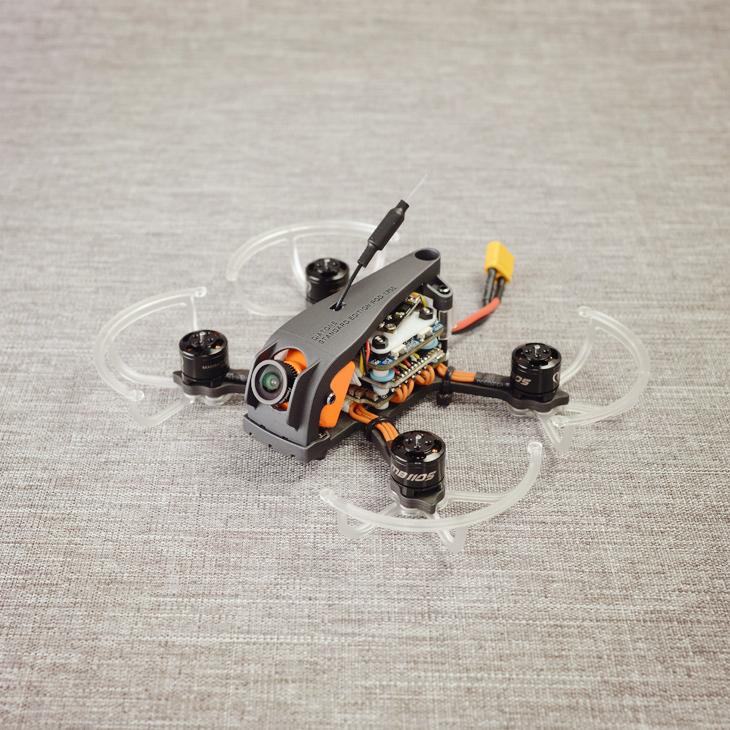

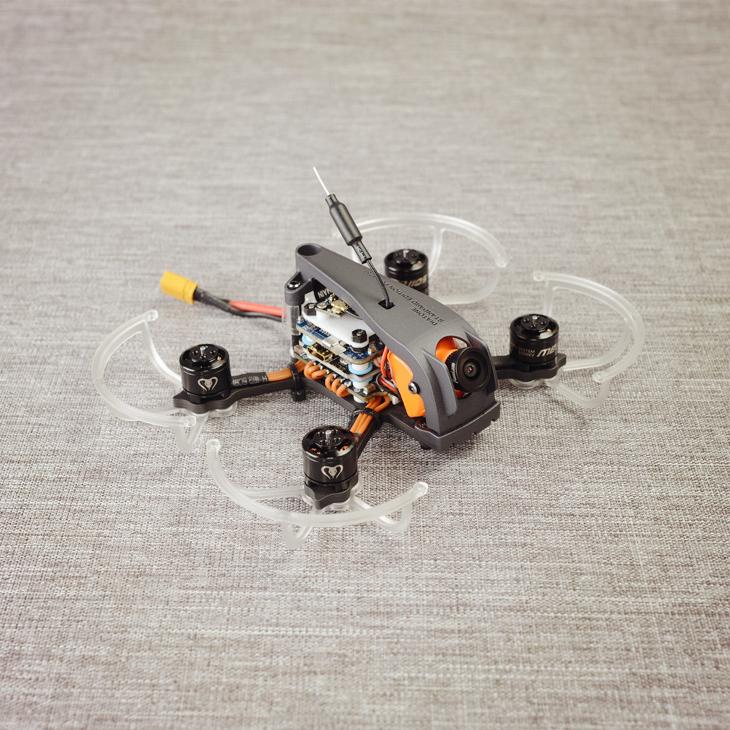

GT-Rabbit R249HD
by Diatone innovations 2019
Cinewhoop
https://www.instagram.com/p/BsdVJaSHRAG/
https://www.instagram.com/p/BrNAV6QHfkY/
Specification:
Brand name: Diatone
Item name: GT-Rabbit R249(R90) 2inch 3-4S
Color: Bla/White/Transparent
Fury F4 OSD 8K flight controller: MPU6000 Six-Axis; OSD; 16M Flash; 5V 2A BEC;
Camera: RunCam Split Mini 2
VTX: Runcam TX200U VTX
| Model | RunCam TX200U |
| Frequency Channel | 5.8G 48CH |
| Output Power | 25mW / 200mW |
| Working Current | 5V@150~400mA |
| Voltage out | 5V@max 250mA |
| Voltage in | 1S 3.5-5.5V |
| Video Input Impedance | 75 Ohm |
| Antenna | U.FL 5.8G 2dB Omni antenna |
| Weight | 2.5g (with antenna) |
| PCB Size | 19mm*19mm |
ESC: F25 20A Current Sensor 3-4S
Motor: Mamba racing 1105 5500KV 3-4S
Propeller: 2 inch
