Beta FPV Pro 2 Series

151
BetaFPV Pro 2 Series
BetaFPV Pro 2 Series

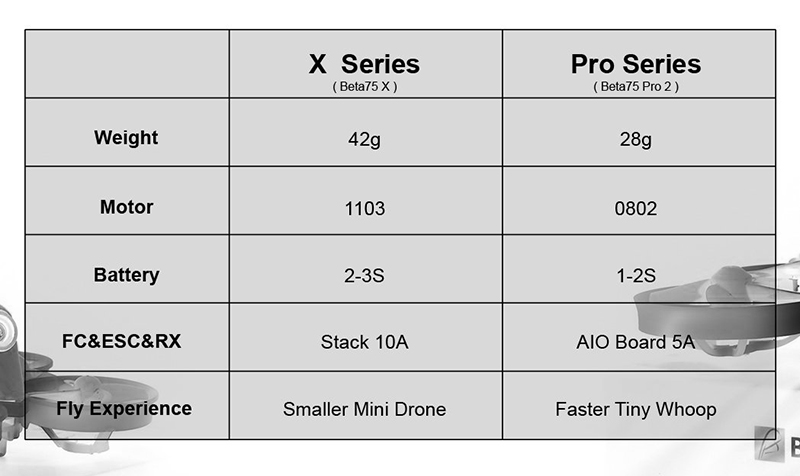

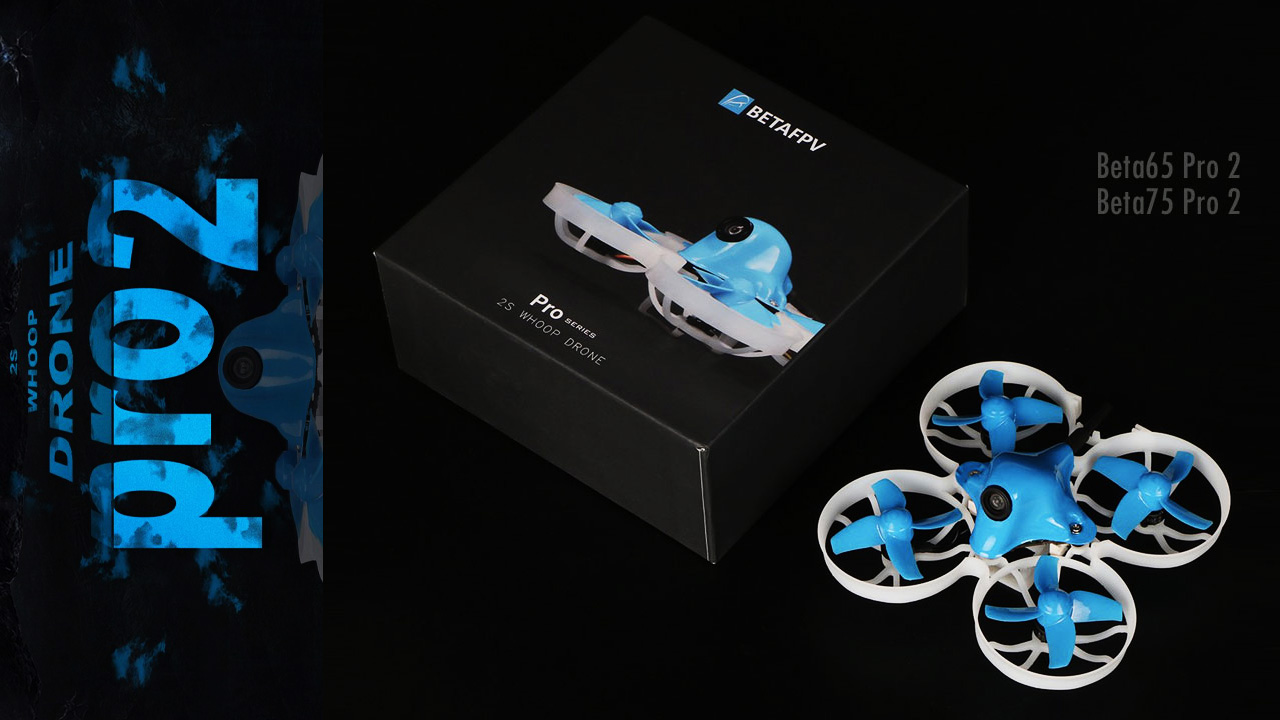

Beta65 Pro 2 & Beta75 Pro 2

Beta65 Pro 2

SPECIFICATION

Beta65 Pro 2 Brushless Whoop Quadcopter


Beta75 Pro 2

SPECIFICATION

Beta75 Pro 2 Brushless Whoop Quadcopter


FC & ESC SPECIFICATIONS

Find more details about this 2S AIO F4 FC board  in another page.

  • CPU: STM32F411
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Betaflight OMNIBUSF4SD (OBSD) 4.0
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Smart Audio port is available for radio control VTX
  • Built-in 1-2S ESC with 5A continuous and peak 6A current
  • Support BLHeliSuite programmable
  • Factory firmware: S_H_50_REV16_7.HEX

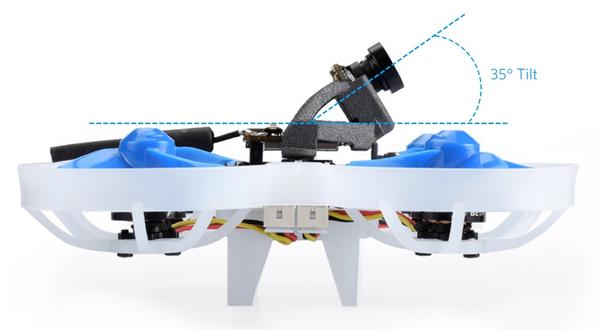

AIO Camera VTX

On the Beta75 Pro 2, it is the customized version lighter AIO VTX camera, only 2.8g.

  • Output power: 25mW
  • Smart Audio function is included for radio control
  • Antenna: Dipole ANT
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
  • TV System: PAL
  • Field of view: 100-120 degrees with 1/4 lens

This is the first batch order. Quantity is limited. All orders will be shipped out before this Friday (Dec 21)
