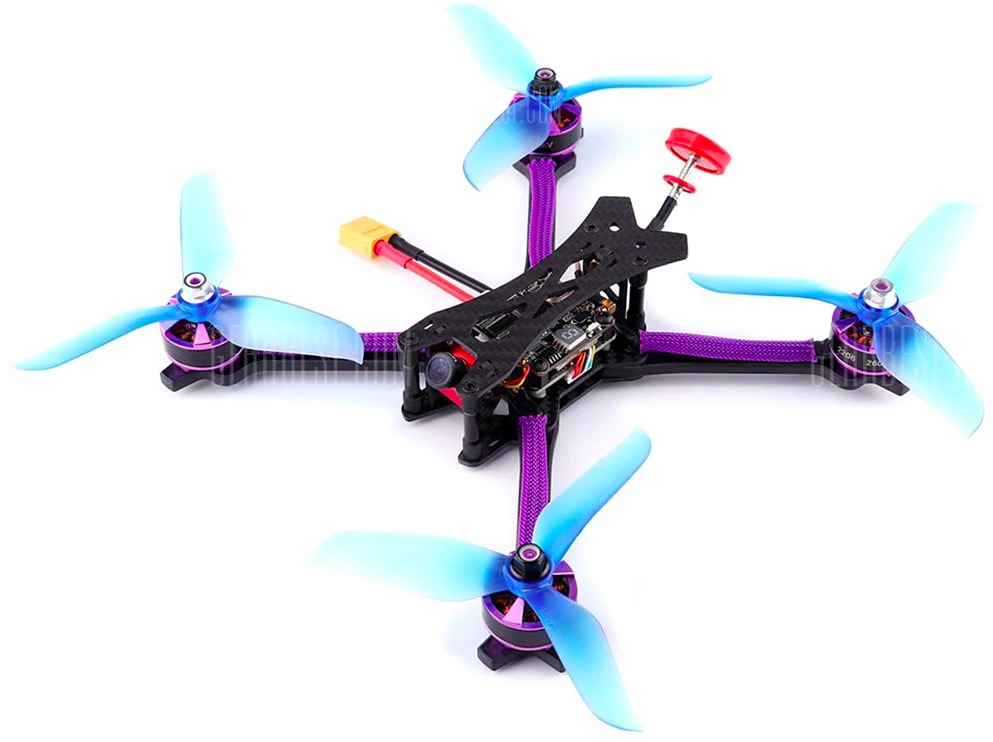

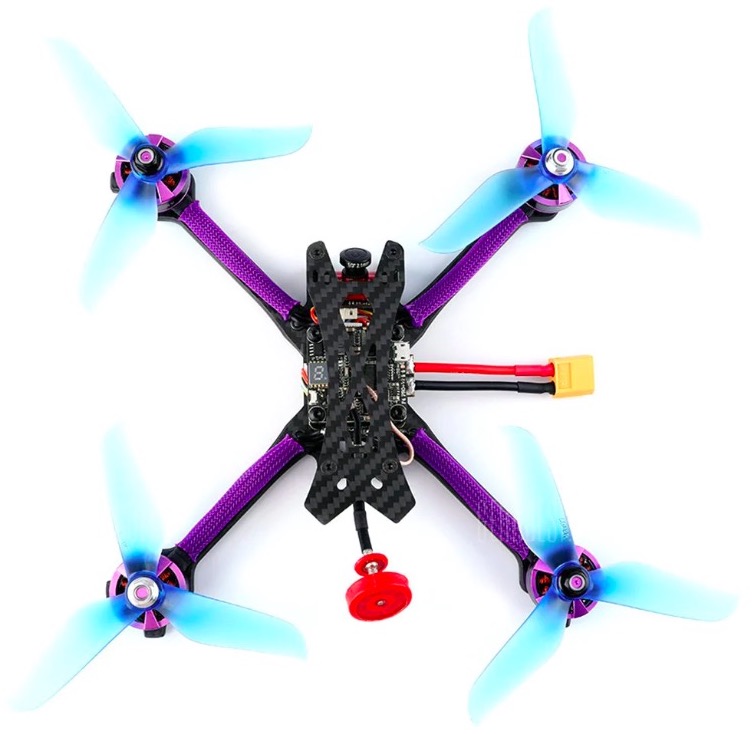

Tero Q215mm DIY Racing Kit

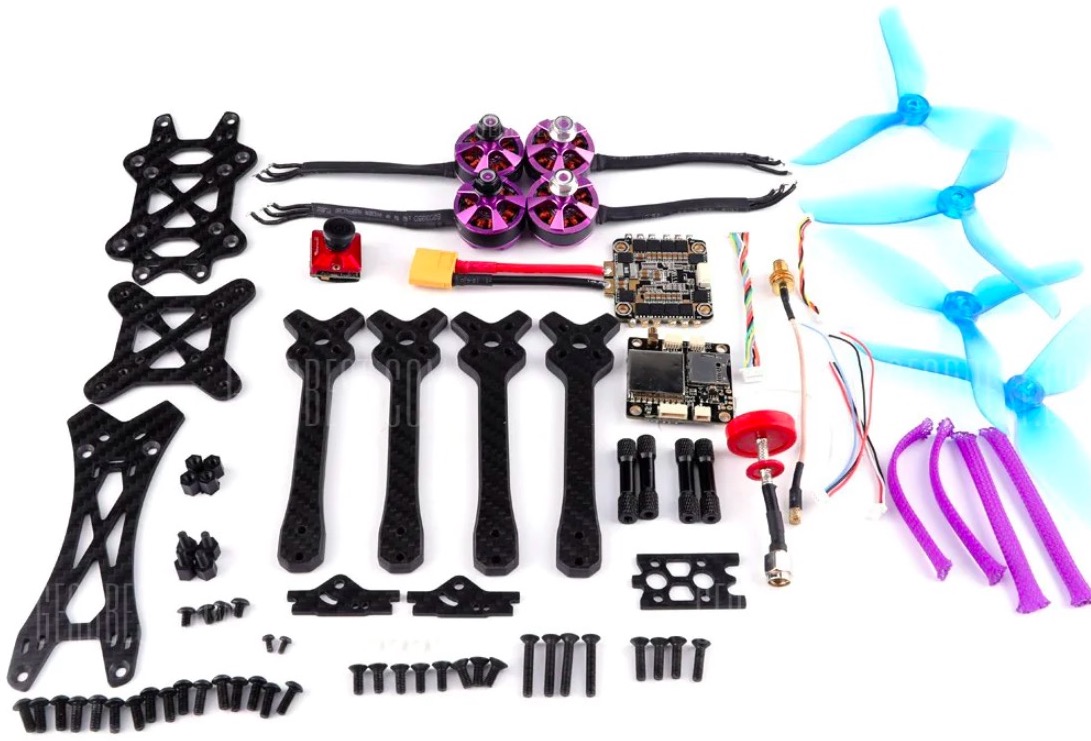

Tero Q215mm FPV Racing RC Drone Kit DIY - BLACK BNF ( WITH FRSKY XM+ )

Tero Q215mm DIY Racing Kit
Tero Q215mm DIY Racing Kit

Drone FPV Racing DIY >>> 100$

Tero Q215mm Frame

Specifications
215mm Carbon Fiber Frame Kit
Wheelbase: 215mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 5mm
Side Plate Thickness: 3mm
Material: carbon fiber

Tero Q215mm camera
Tero Q215mm camera

FPV Camera
CCD: 1/3 inch super HAD II CMOS
Horizontal Resolution: 700TVL
TV System: PAL / NTSC
5D OSD Button: yes
Input Voltage: DC12V
Dimensions ( mm ): 25 x 25 ( W x L )
Menu ( OSD ): English menu
White Dot Repair: support
Image Adjustment: support
Weight: 14.6g ( with bracket )

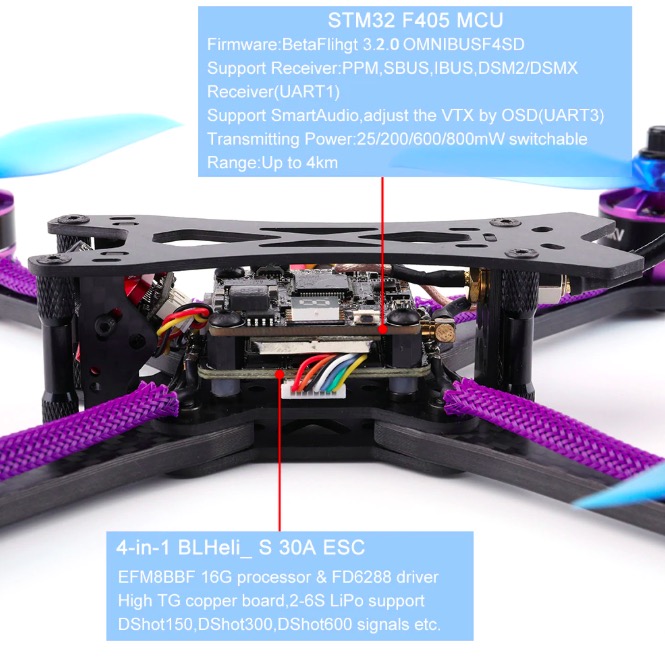

Rcharlance F4 PRO+ V2 Flight Controller
Processor: F4 ( STM32F405 )
Gyroscope: MPU6000 ( Reserved external gyroscope interface )
Firmware: BetaFlight OMNIBUS F4SD
Input Voltage: 2 – 6S LiPo support
BEC Output: 5V 3A
Firmware: BetaFlihgt 3.2.0 OMNIBUSF4SD
Net Weight: 12g ( not including cable )
Size: 36 x 36mm
Mounting Hole: 30.5 x 30.5mm

Receiver
Support PPM, SBUS, IBUS, DSM2 / DSMX Receiver ( UART1 )
Integrated with OSD, support BF Ground Station adjust OSD
Adjust the PID by OSD via remote control
DShot support
Support Smart Audio, adjust the VTX by OSD ( UART3 )
MicroSD card black box
Baro ( BMP280 )

VTX
Frequency: 5362 – 5945MHZ
Video Format: NTSC / PAL
Transmitting Power: 25 / 200 / 600 / 800mW switchable
Operating Voltage: DC 7V – 24V
Output Voltage: 5V 450mA
Working Current: 25mW: 240mA / 200mW: 340mA / 600mW: 520mA / 800mW: 600mA
Remote Software Protocol: Smart Audio V2.0
Audio Bandwidth: 6.5MHz
Video Bandwidth: 18MHz
Channel: 40CH
Range: up to 4km omnidirectional RHCP antennas
Connector: MMCX
Supports smart audio ( remote parameter adjustment )

30A 2-6S BLHeli – S 4 in 1 ESC
Input Voltage: 2 – 6S LiPo battery
Constant Current: 30A
Peak Current: 40A
BEC Output: no
Mounting Hole Spacing: 30.5mm
30A Continuous Current: 50A burst
8-bit compatible ESC ( BLHeli – S )
Incredibly small size
Very low weight
Auto timing feature
Build in a current sensor
Smooth response
Compatible with BetaFlight F3 / F4 flight controller
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse.

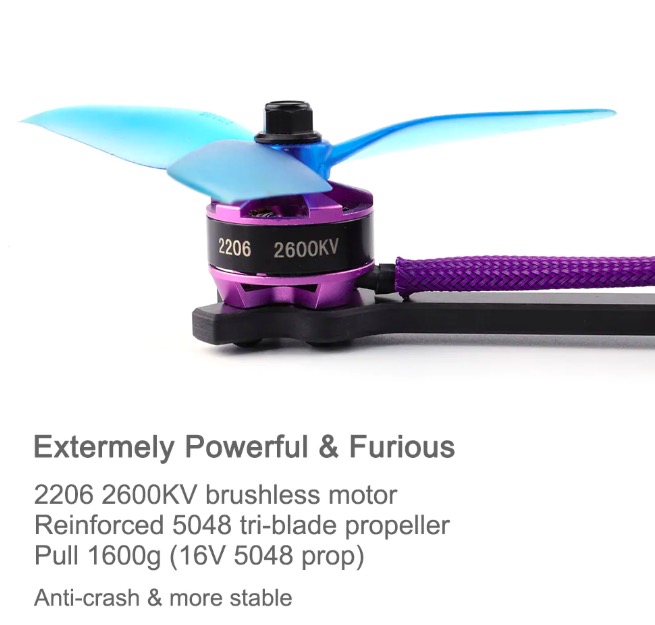

2206 2600KV Motor
KV: 2600KV
Battery ( LiPo ): 2 – 4S
Spindle Diameter: 22mm
Spindle Length: 6mm
Out Shaft Diameter: 5mm
Motor Size: 33.5 x 39.1mm
Thrust: 1600g ( 16V 5048 3-blade propeller )

Frsky XM+ Receiver ( BNF version only )
Dimension: 21.5 x 12 x 3.5mm ( L x W x H )
Weight: 1.6g
Number of channels: up to 16CH from SBUS ( 1 -15CH for PWM, 16CH RSSI for FC )
Operating Voltage Range: 3.7 – 10V
Operating Current: 30mA 5V
Operating Range: full range
With RSSI Output on Board: analog 0 – 3.3V
Firmware upgradeable
Compatibility: FrSky D16 mode
