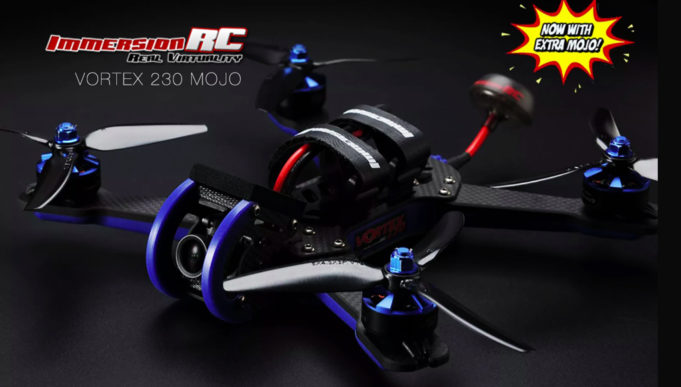

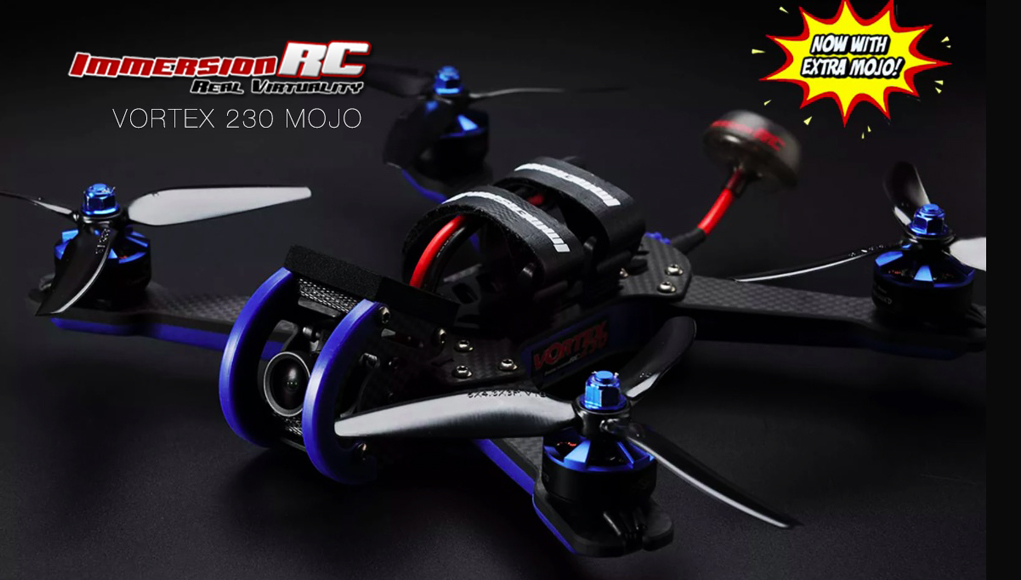

Vortex 230 Mojo ImmersionRC

Flight Controller Board
– CPU: STM32F303 32-bit ARM Processor
– IMU: MPU6000, 3-Aixs Gyro, 3-Aixs Accelerometer
– Integrated with OSD
– Firmware: Betaflight compatible ( with API version matching that of OSD)

Brushless Motor
BrotherHobby Returner R3 2206 2300KV
Shaft Diameter: 5.0mm
Motor diameter: 27mm
Motor height: 18.5mm
Configuration: 12N14P
Weight: 28g

HQ 5×4.3 3-Blade Propeller

ImmersionRC EzESC 30A ESC
Custom 32bit 30A ESC
Processor: 32-bit ARM running custom Immersion ESC firmware
Continuous Current: 30A
Peak Current: 40A
– Support DShot600, OneShot125. OneShot42, MultiShot, and Motor Braking

5.8G 48CH 1mW – >600mW VTX
Name: ImmersionRC Tramp HV FPV Transmitter
Dimensions: L=32mm x W=14mm x H=5mm
Weight: 4g (Tx only, without SMA cable)
Power Output: Programmable, 1mW to > 600mW
Channels: 48CH, arbitrary using race wand
RF Impedance: 50 ohms
RF Connector: U.FL
AV Connector: JST-GH, 6 pin, locking
TNR Connector: JST-GH, 4 pin, locking
Audio: Mono, Subcarriers on 6.0 and 6.5MHz (cloned)
Modulation: FM, Audio and Video
Pit Frequency: User/Race Organizer Definable
Video Impedance: 75 ohms
Power Requirements: 2s-4s HV Lipo
Power Consumption: ~4W max. @ 600mW, ~1.9W @ 200mW

FatShark Gen3 600TVL CCD Camera
Sensor: HS1177 Sensor + Chipset
