drone racing
Vifly R220

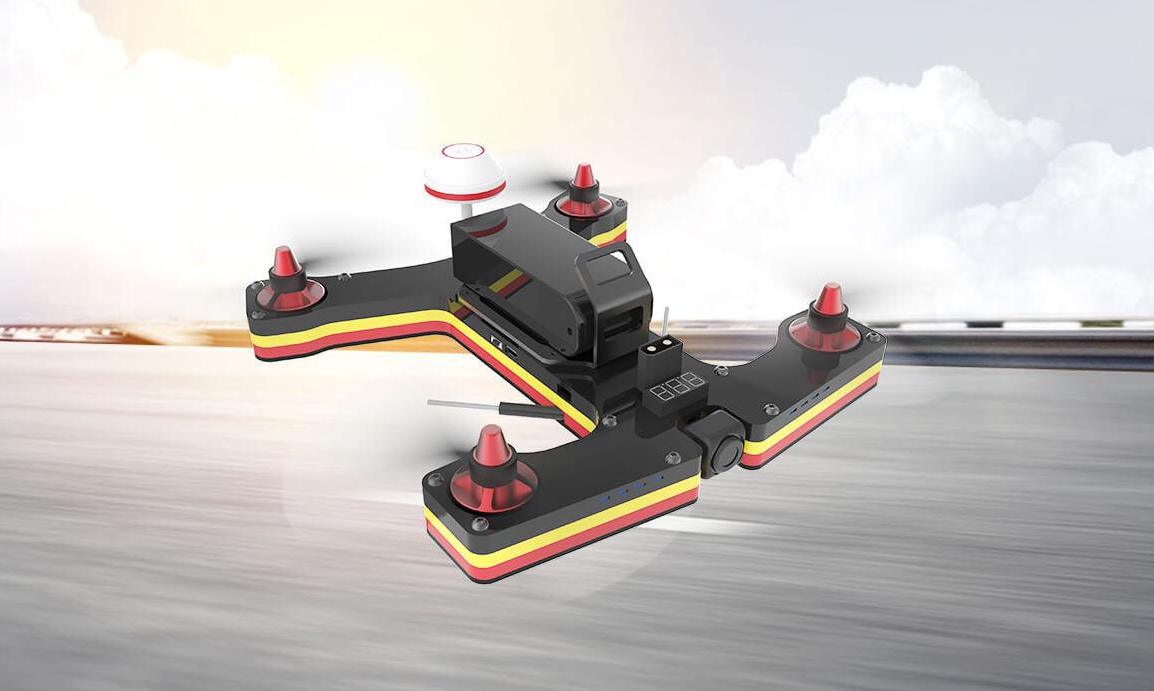

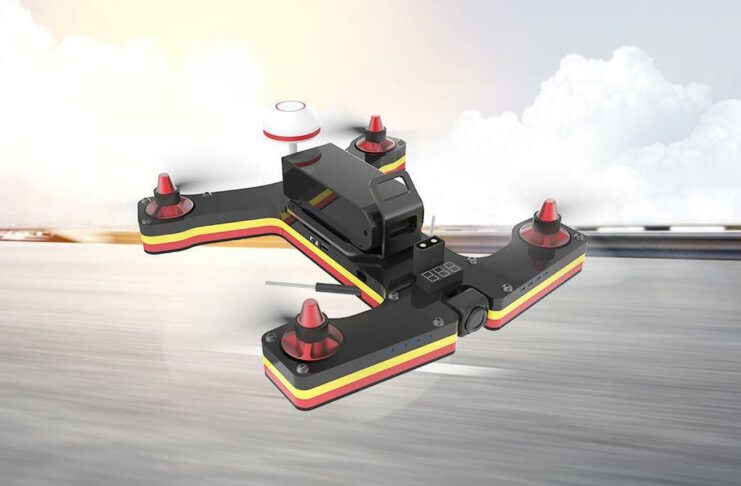

Vifly R220 Drone Racing



Specifications

  • Size (L x W x H) 200x185x80mm
  • Wheelbase 220mm
  • Weight 400g (Battery excluded)
  • Remote Controller FlySKY i6-VF
  • Receiver FlySKY FS-iA6B
  • Main Controller F3
  • OSD Clean Flight OSD
  • Brushless Motor VF-RC-2205 (CW/CCW) KV2300
  • ESC F20A
  • Propeller 5045
  • Battery 11.1V 1500mAh 35C 3S Li-PO / 14.8V 1500mAh 35C 4S Li-PO (optional)
  • Flight Time 8mins(3S) / 10mins(4S)
  • Working Environment -10℃ ~ +40℃

Camera

  • Horizontal Resolution 600TVL
  • Field of View 140°
  • System Committee PAL/NTSC
  • Power Input DC 5V
Wireless Video Transmitter

  • Working Frequency 5.8GHz
  • Channel Bind A/B/C/D/E sections 40 channels
  • Output Power (CE) ≤25mW
  • Output Power (FCC) ≤200mW
  • Antenna Right-handed circular polarization
