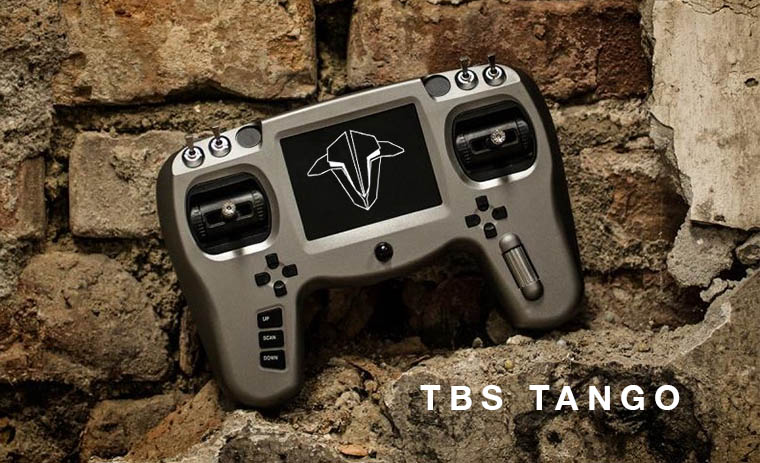

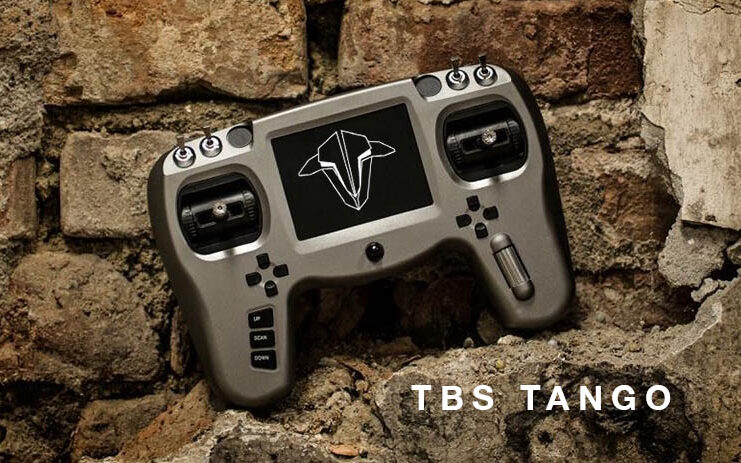

Radiocommande TBS TANGO

219
Radiocommande
TBS TANGO FPV Remote

[youtube src= »G5DUvVmEPyU »/]

Type:

  • All-in-one FPV Remote Control

RC system:

  • JR-compatible expansion module, e.g. TBS CROSSFIRE

FPV system:

  • 5G8 VRX receiver, 40CH

Antenna: R/C:

  • module specific
  • VTX: 5G8 5dBi patch antenna, optional external SMA port
  • FPV Channels: Boscam A, B, E, Fatshark, Raceband

Display:

  • LCD 4.2-inch, 640x480p
  • R/C module

compatibility:

  • JR-compatible RF module with CRSF or PPM stream (absolute max. ratings:
  • -0.3V to 15V), e.g. Crossfire, JR, FrSky and similar radio modules
  • Battery: Li-Ion 18650 3.6V 6000mAh internal battery, USB-charging
  • Operating range: Variable depending on output power and radio environment
  • Ports: RJ45 connector for connecting video goggles, e.g. FatSharks
  • DSC for trainer connection
  • USB for software updates and charging

Controls:

  • 2x Quad ball-bearing gimbals
  • 2x Two-position switches
  • 2x Three-position switches
  • 2x Spring-loaded dials
  • 2x Digital trims
  • 3x Video RX buttons
  • 1x Rocker switch

Working temperature:

  • 0 – 40°C

Size:

  • 240 x 170 x 55 mm

Weight:

  • 340 grams, without R/C radio module

Kit contents:

  • 1x TBS Tango Remote Controller
  • 1x TBS Tango Neckstrap
  • 1x RJ45 Audio/Video cable

http://team-blacksheep.com/products/prod:tango
http://www.team-blacksheep.com/tbs-tango-manual.pdf
