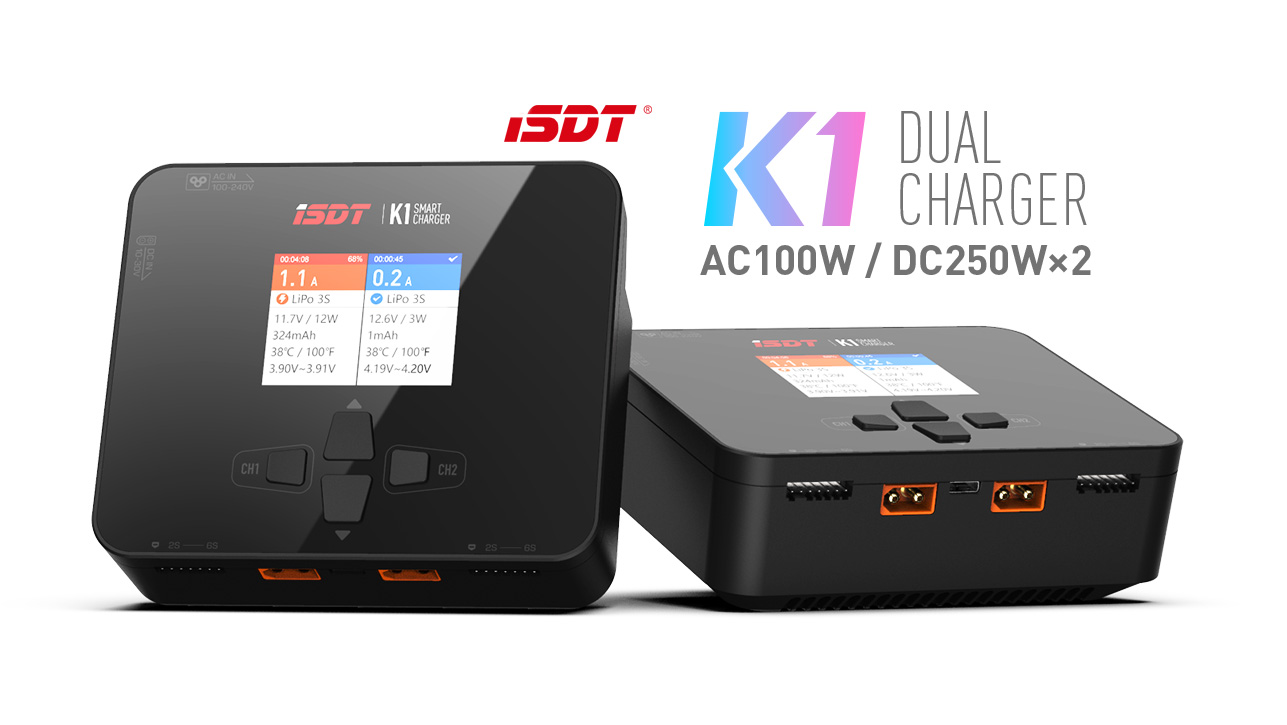

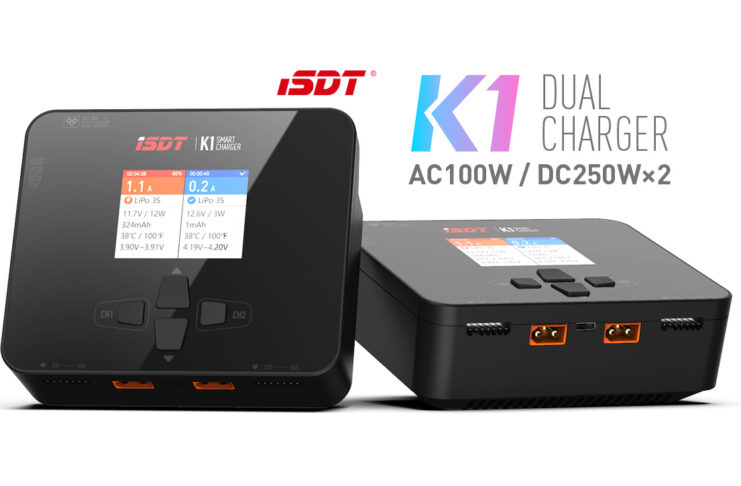

K1 Dual Charger 100w : DC 250w X2
K1 Dual Charger 100w : DC 250w X2

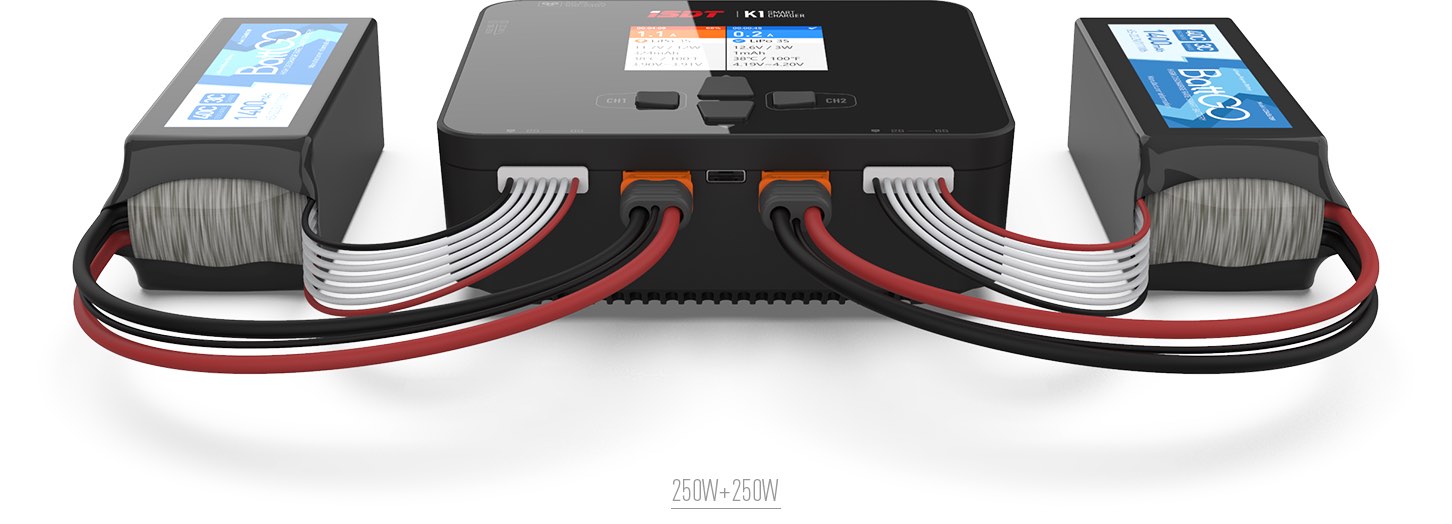

High Power Synchronous Dual Channel, with Smart Charging.

Adjustable Digital Power Supply.

  • In adjustable digital power supply mode,
  • the Max. power is AC 100W / DC 120W.
  • CC: 0.2~5.0A
  • CV: 5~24V

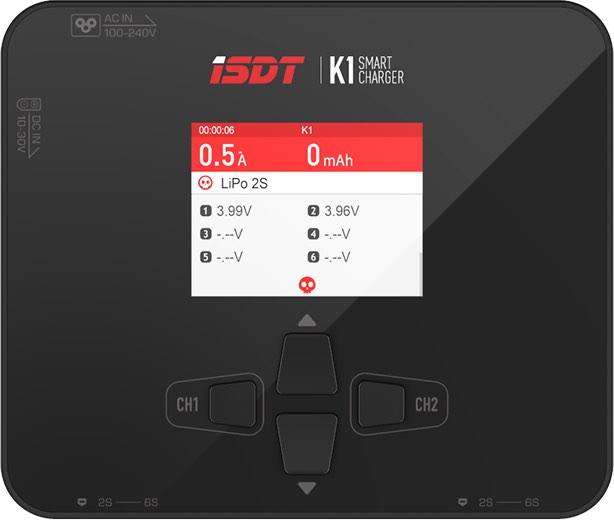

Battery destroy mode.

Upgradeable Firmware

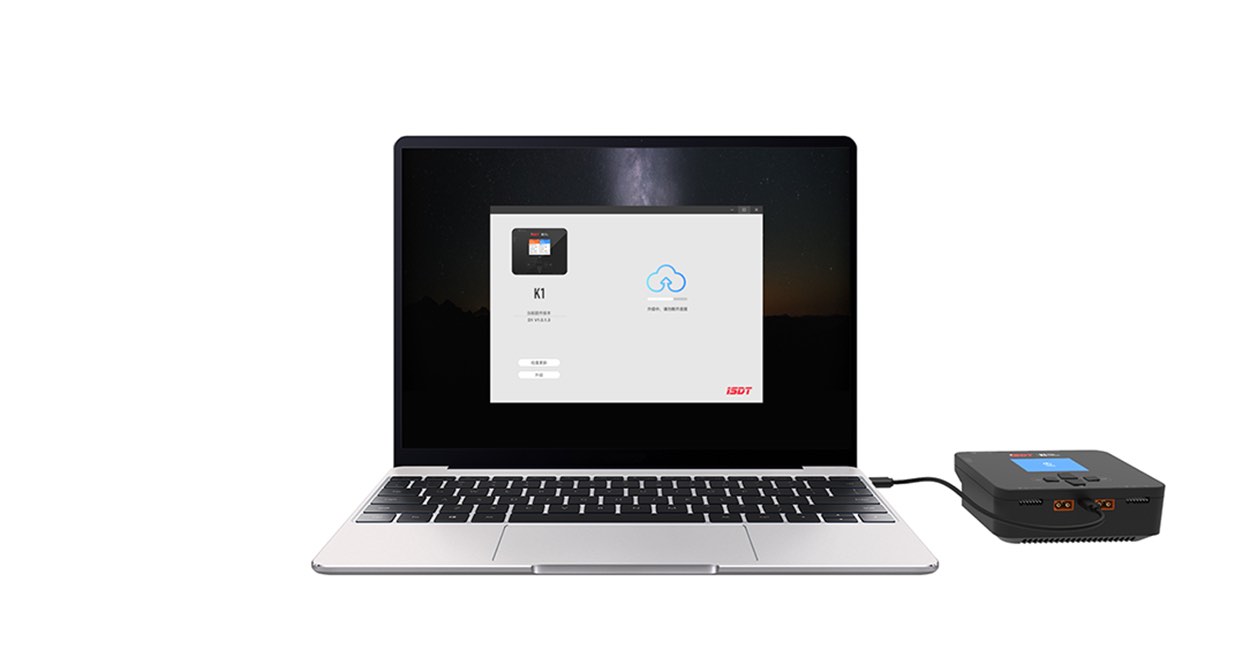

By connecting the charger USB-C port to the PC,
K1 can acquire latest firmware upgrading,
ensure the charger have optimalized performance and latest firmware all the time.

Specifications

Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~26.4V
Max. input current: DC 20A
Charging current: 0.1~10.0A x2
Balance current: 0.5A/Cell Max
Max. charging power: AC 100W / DC 250W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S; NiMH/Cd 1-16S
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 135x115x49mm
Weight: 485g
