Eachine Tyro69 – Toothpick DIY FPV (52€)

105mm F4 OSD 2.5 Inch 2-3S DIY FPV Racing Drone PNP w/ Caddx Beetle V2 1200TVL Camera

64

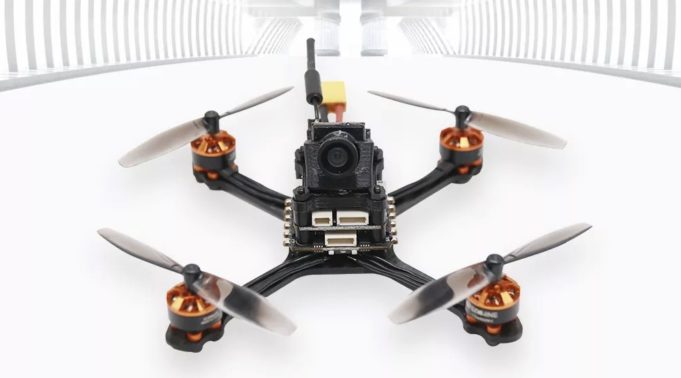

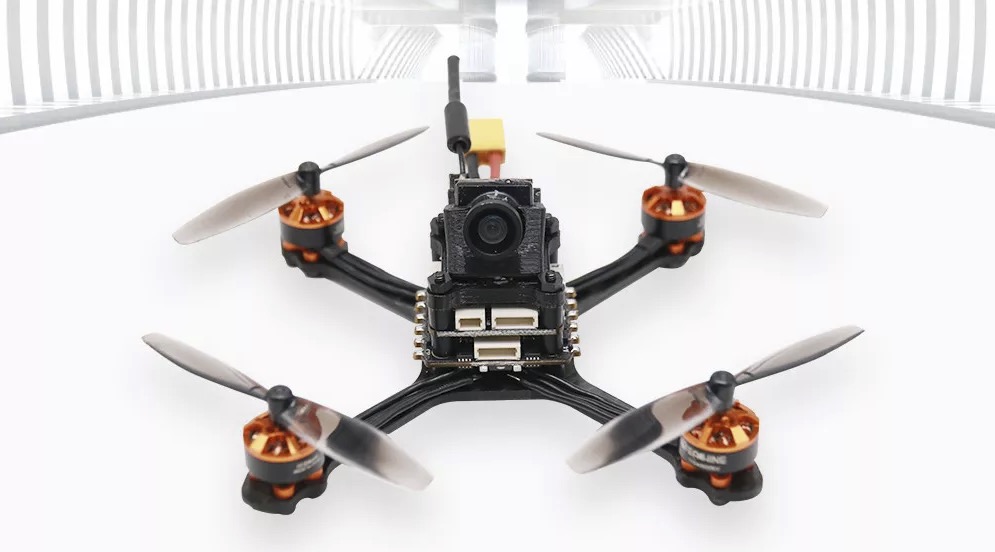

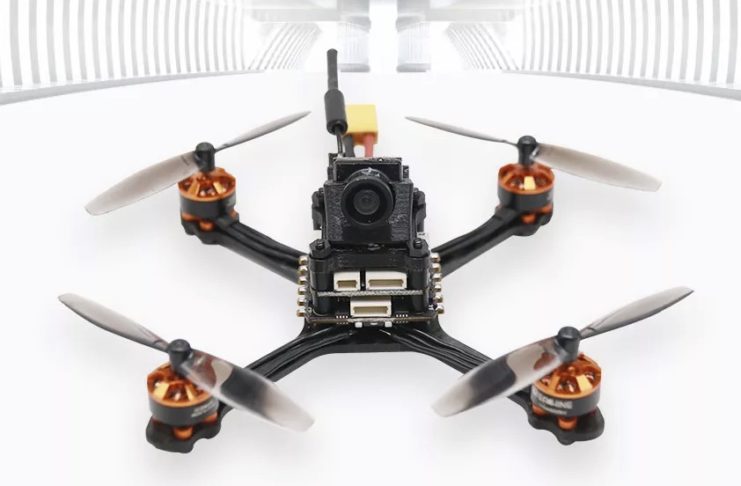

Eachine Tyro69 diy kit fpv drone racer

Notice:
1. This is the DIY version that comes unassembled.
2. Comes without battery, charger, receiver or radio transmitter.

Specification:  (Manual)
Item Name: 2.5 Inch DIY FPV Racing Drone
Version: PNP ( Without Receiver, Battery and Radio Transmitter)
Drone Wheelbase: 105mm
Arm Plate Thickness: 2mm
Max. Propeller: 2.5 Inch
Material: 3K Carbon Fiber & 3D Printed TPU Parts

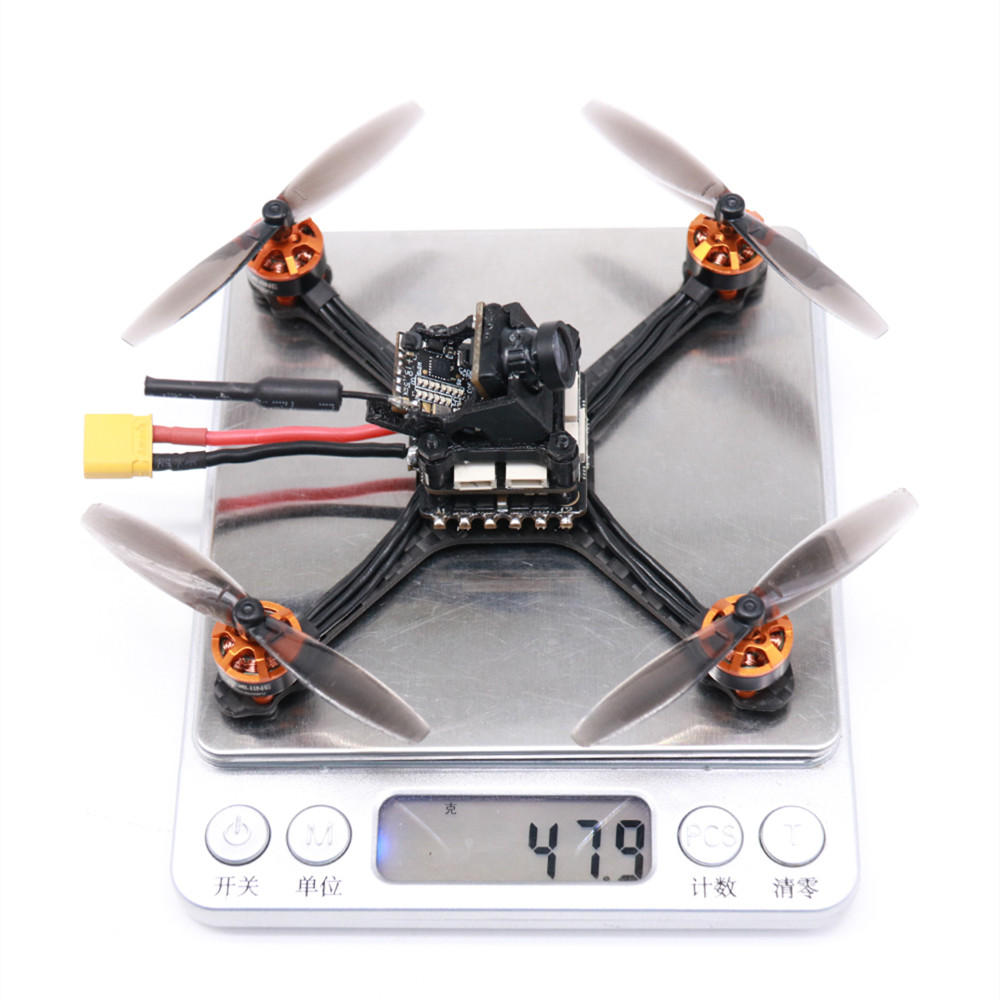

Weight: 47.9g ( without battery)

PRIX : 52€ (coupon)

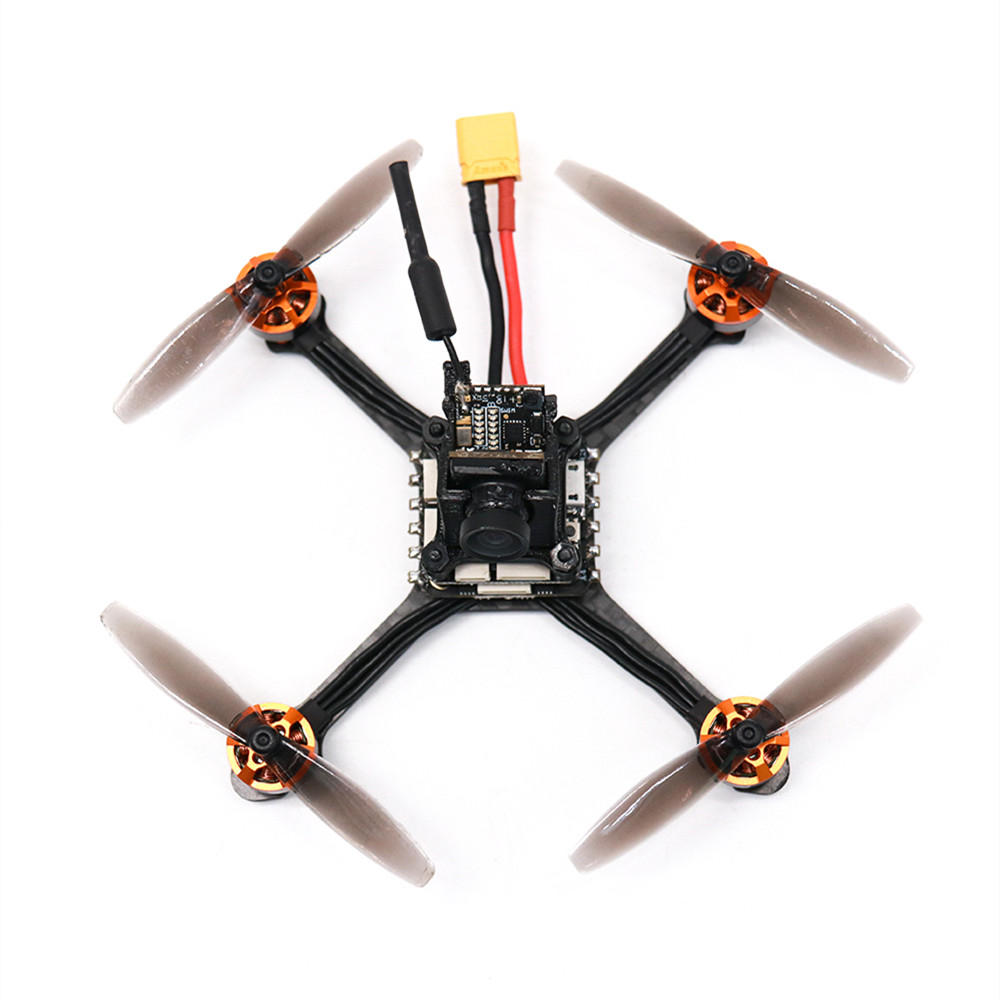

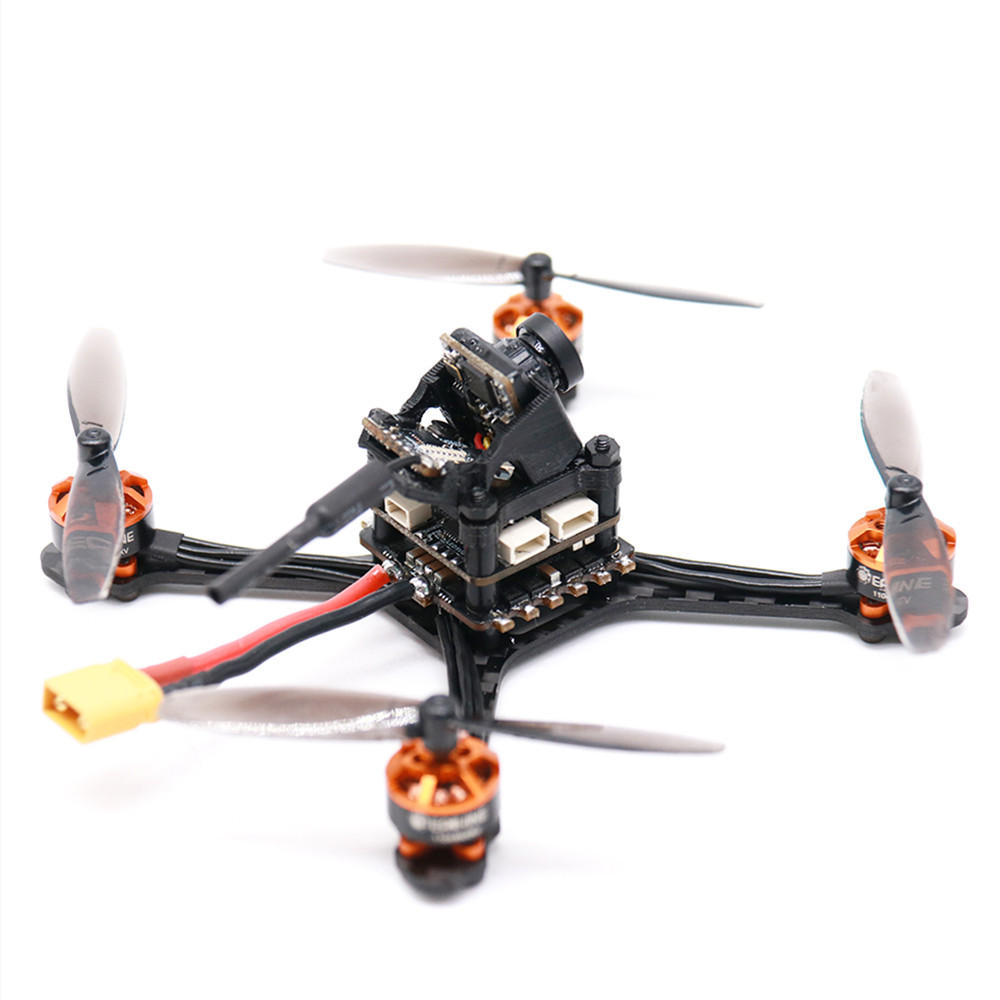

Eachine Tyro69 KIT
Eachine Tyro69 DIY KIT FPV

Eachine Tyro69

Eachine Tyro69
Eachine Tyro69

Eachine Tyro69

Main control chip: STM32F411
IMU: MPU6000
Integrated Betaflight OSD
Firmware: MatekF411
SBUS/ IBUS/ DSMX / UART Shared: UART1-RX

BEC: 5V 2A

WS2812 Led Strip : Yes
Beeper : Yes
Mounting Hole: 20x20mm
– Support betaflight/ cleanflight/ inav firmware
– Plugs connector / Soldering Pads are Optional for all connector Port
Eachine 20A BL_S 4In1 ESC MCU:48MHz EFM8BB21F16G
Input Voltage: 2-6S
Con. Current: 20A
Burst Current: 25A (10S)
BEC: NO
Size: 28.7×30.7mm
Mounting Hole: 20x20mm
Weight: 24g
Support DShot150/300/600, PWM, OneShot125, OneShot42, MultiShot
( DShot600 in default out from factory)
Eachine 1104 8600KV 2-3S Motor
KV: 8600KV
Lipo cell: 2-3S
Weight: 4.3g
Color: Orange
Max. Con. Current: 13A
Max. Con. Power: 144W
Configu-ration: 9N/12P
Motor Resistance: 137mΩ
Stator Diameter: 11mm
Stator Thickness: 4mm
Motor Diameter: 13.8mm
Motor Body Length: 11.5mm
Overall Shaft Length: 17mm
Bolt Holes Spacing: 9mm
Bolt Thread: M2
65mm 2-Blade Propeller Item Name: 65mm 2-Blade Propeller
Shaft: 1.5mm
Quantity: 10 CW & 10 CCW
Color: Transparent Black / Black/ Red ( Sends Randomly )
Caddx Beetle V2 Camera AIO VTX Output Power: 25mW
Channel: 48CH
Input Voltage: 2.9-5.5V
Support SmartAudio
VTX Size: 15x14mm
Image Sensor: 1/3 CMOS
Horizontal Resolution: 1200 TVL
TV System: PAL
Image: 4:3
Lens: 2.1mm
Dimensions: 14x14x16mm
Weight: 4.1g (Camera + VTX)
Recommend Lipo Battery ( Not Included) Recommend 3S 350-450mAh Lipo Battery



Coupon BG : BGTR69, AFFBG10, AFfbG10, BGEach10
