Drone FPV Racing DIY Eachine Tyro99 210mm à 79€

Drone à fabriquer soi même Eachine Tyro99 5 pouces DIY Version FPV Racing RC Drone F4 OSD 30A BLHeli_S 40CH 600mW VTX 700TVL Cam à moins de 100€

Eachine Tyro99 210mm DIY - drone fpv racing à fabriquer
Eachine Tyro99 210mm DIY - drone fpv racing à fabriquer

Profiter de la promotion sur Banggood avec le code : PICODICOM

Eachine Tyro99 le moins cher
des kits FPV racing

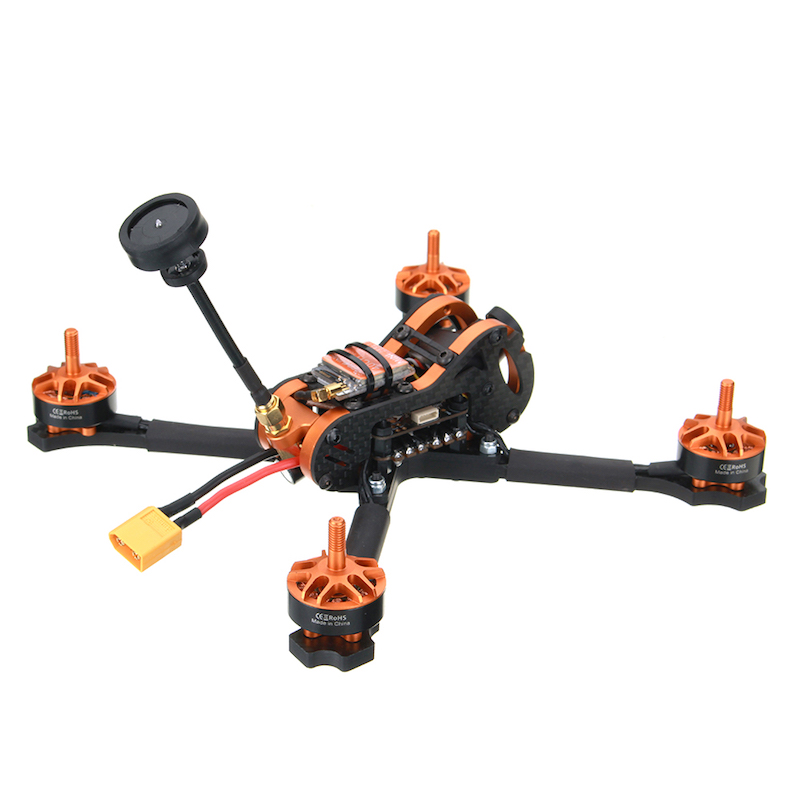

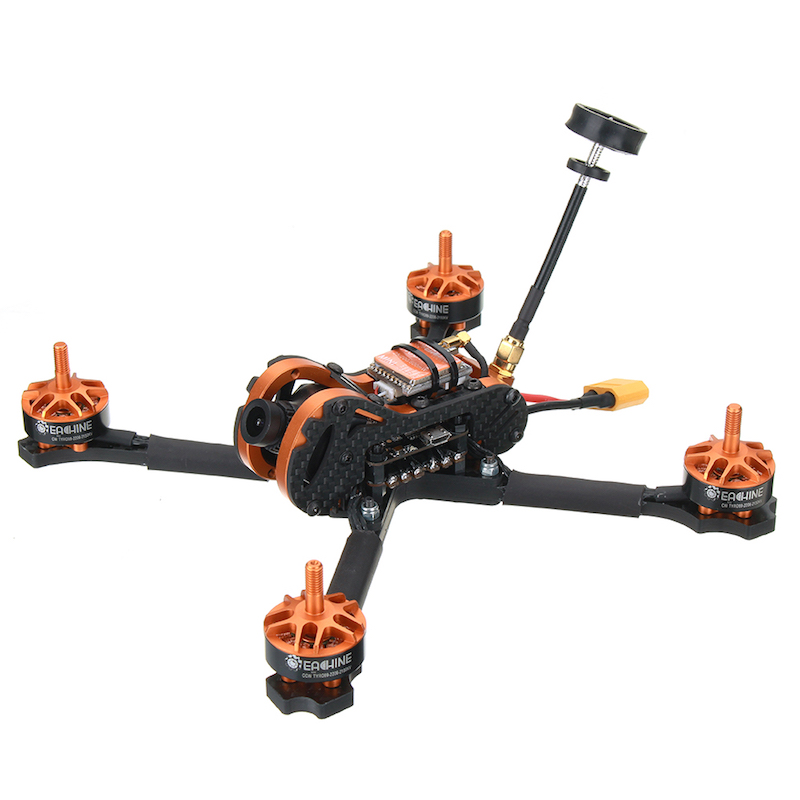

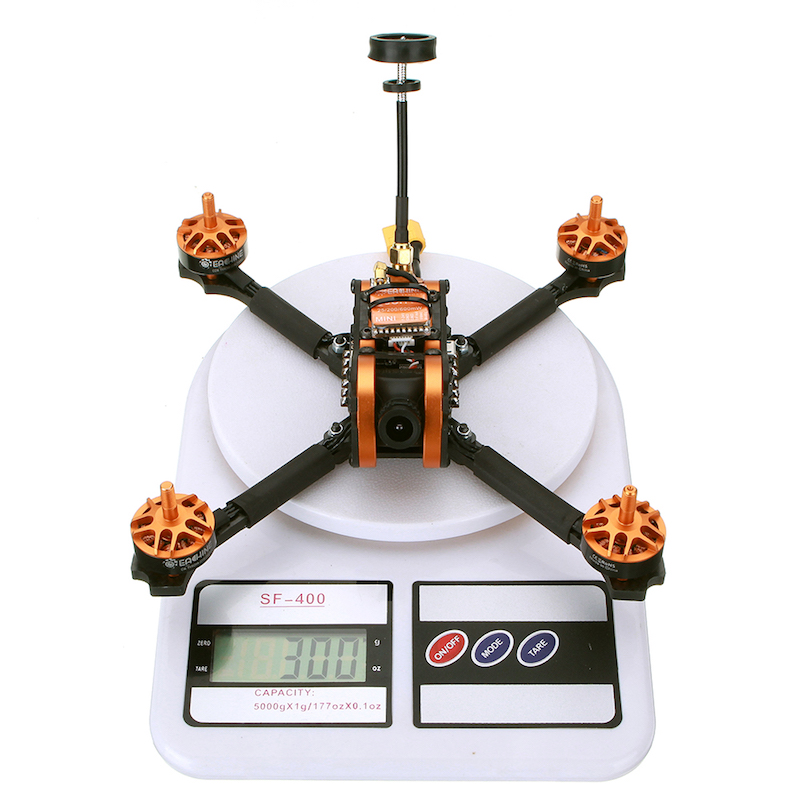

Eachine Tyro99 210mm
Eachine Tyro99 210mm

Drone FPV racing DIY
Drone FPV racing DIY



Item Specification
210mm Frame Kit
Wheel base: 210mm
Frame arm thickness: 5mm
Bottom plate thickness: 2mm
Side plate thickness: 2mm
Frame kit material: 3K carbon fiber & 6065 aluminium
2206 2150KV Brushless Motor
Motor KV: 2150RPM/V
Idle current (Io/10V): 1.26A
Lipo cell: 3-5S
Weight: 31g
Max continuous current: 31A
Max continuous power: 496W
Max thrust: 1050g (4S/5″)
Configu-ration: 12N/14P
Motor resistance (RM): 0.0572 Ω
Stator diameter: 22mm
Stator thickness: 6mm
Motor diameter: 27.7mm
Motor body length: 19.2mm
Overall shaft length: 34.2mm
Prop adapter shaft: M5
Bolt holes spacing: 16mm
Bolt thread: M3
Propeller: 5-6 inch
4 IN 1 30A BLHeli_S ESC
Continuous current: 30A
Peak Current: 40A(10S)
Input voltage: 2-5S
BEC: 5V 2A BEC
Main control chip: 48Mhz EFM8BB2
Firmware: BLHeli_S supports Dshot600
MOS: 5*6
Customized F4 Flight Controller
Main control chip: STM32F405
Sensor: ICM20602 6-axis
Power supply: 5V
Integrated OSD
Onboard LC filter
PID cycle rate & gyro refresh rate up to 32Khz
Supports BetaFlight / inva racing firmware

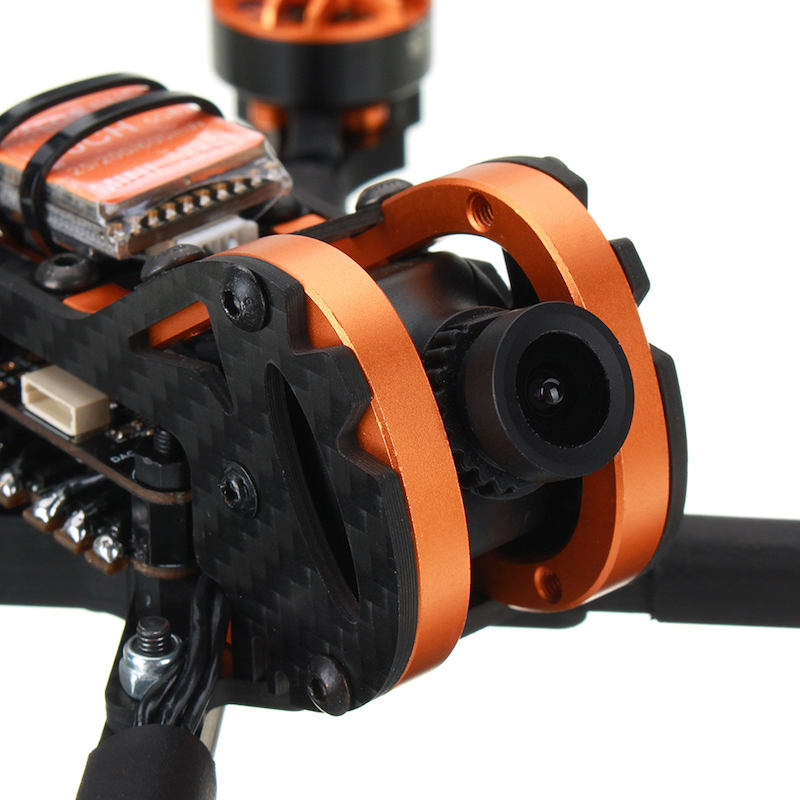

700TVL COMS Camera
Case size: 25mm*25mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL

Video output: 1.0Vp-p/75Ω

Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: on/off optional
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) – 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.8mm
Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98%
5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX
Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
Transmitting power: 0mW/25mW/200mW/600mW
Full video format: NTSC /PAL
Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW
Size: 20*30*9mm
Weight: ≤7g(except antenna)
With output power self-check function.
Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
Racerstar 5038 2 Blade Propeller
Material: PC
Mounting hole: 5mm
Center thickness: 8mm
Quantity: 10 pairs
Color: blue, red, yellow, purple, white
Weight: 7.25G a pair
Delivery color randomly (10 pairs of propellers are the same color)
Battery Not included
Recommend 3-5S

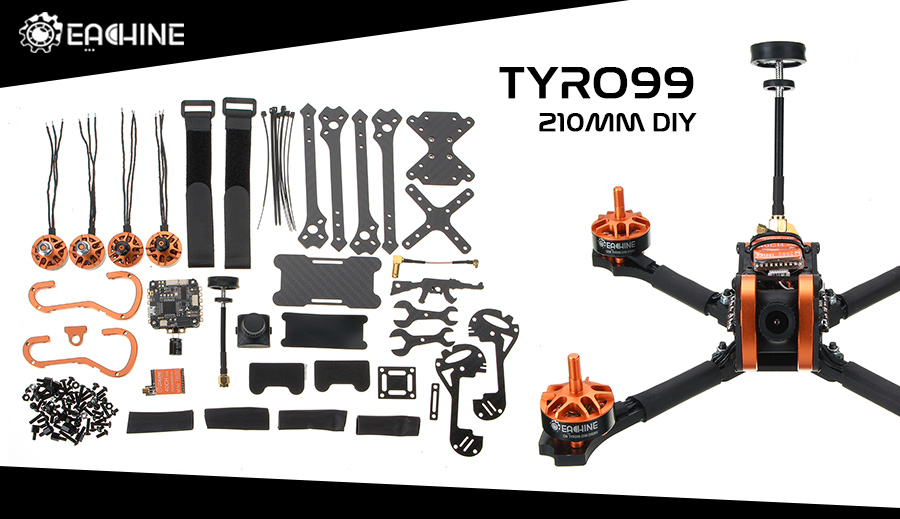

Package included:
1 x 210mm frame kit
2 x 2206 2150KV brushless motor CW
2 x 2206 2150KV brushless motor CCW
1 x 4 IN 1 30A BLHeli_S ESC
1 x Customized F4 flight controller
1 x 700TVL COMS camera
1 x 5.8G 40CH 0mw/25mw/200mw/600mw switchable VTX
2 x Battery strap
10 x Racerstar 5038 2 blade propeller CW
10 x Racerstar 5038 2 blade propeller CCW
