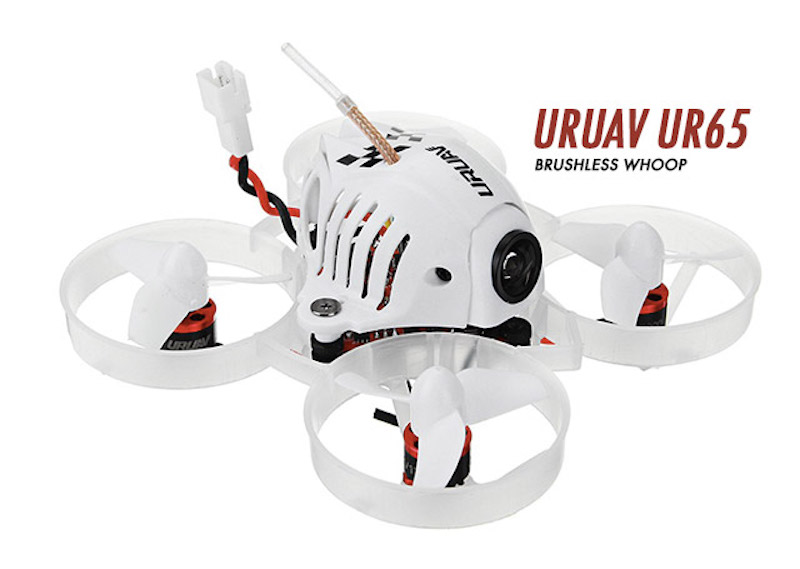

URUAV UR65 Brushless Whoop

URUAV UR65 65mm FPV Racing Drone BNF Crazybee F3 Flight Controller OSD 5A Blheli_S ESC 5.8G 25mW VTX

URUAV UR65
URUAV UR65

Specifications:
Brand Name: URUAV
Mode Name: UR65
Item Name: 1S 65mm Brushless Whoop racer drone BNF
Wheelbase: 65mm
Size: 81mm*81mm*36mm
Weight: 20.5g(without battery)
Weight:27g(with Original 250mah lipo battery)



URUAV UR65
URUAV UR65

SE0603 KV17000 Motor Mode: SE0603 KV17000
Configu-ration:9N12P
Stator Diamter:6mm
Stator Length:3mm
Shaft Diameter:Φ0.8mm
Motor Dimension(Dia.*Len):Φ9mm*15.5mm
Weight(g):1.8g
No.of Cells(Lipo):1S

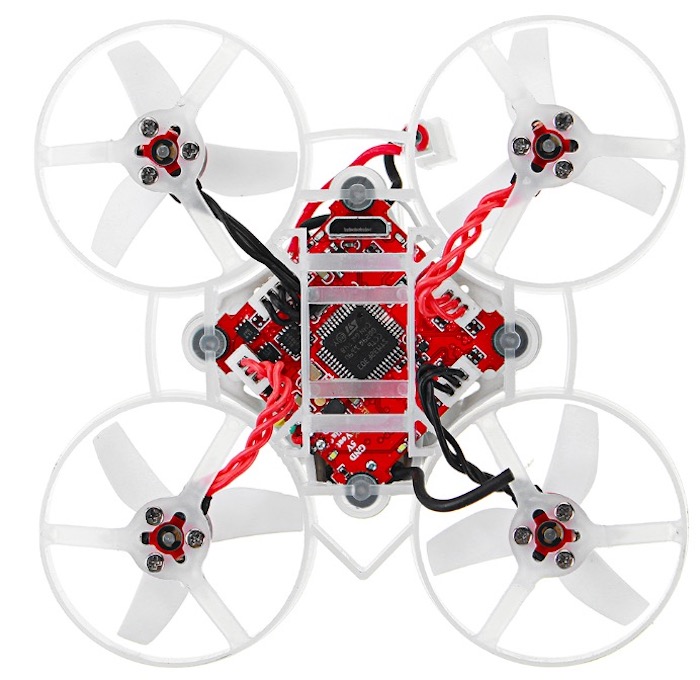

Flight controller Firmware: Betaflight_3.3.0_Crazybee
Betaflight target:
CRAZYBEEF3FR(Frsky version)
CRAZYBEEF3FS(Flysky version)
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Board weight: 3.5 g
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 14A
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Onboard 4in1 5A ESC Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Default protocol: DSHOT600
Frsky receiver Version SPI BUS receiver
Frsky D8/D16 switchable
Compatible both D8 and D16 transmitter
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
AIO Camera&VTX Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9″12.0mm ( L*W )
Weight: 3g
Lipo Battery Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx7mm
Weight: 6.5g
Connector: PH2.0

Package Included:

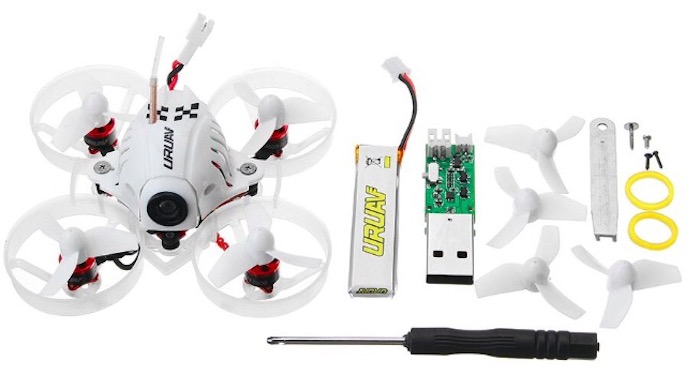

Basic version


1 x 65mm Brushless whoop Frame
1 x Crazybee F3 FC (Frsky and Flysky option)
1 x 5A 4in1 ESC
4 x SE0603 KV17000 Motor
1 x 31mm propeller(4cw+4ccw)
1 x AIO Camera & VTX
1 x 3.8v 250mah 30C/60C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x Screwdriver

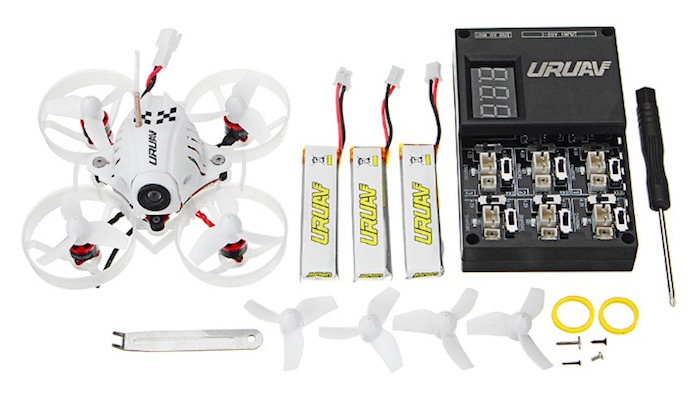

Standard version

1 x 65mm Brushless whoop Frame
1 x Crazybee F3 FC (Frsky and Flysky option)
1 x 5A 4in1 ESC
4 x SE0603 KV17000 Motor
1 x 31mm propeller(4cw+4ccw)
1 x AIO Camera & VTX
3 x 3.8v 250mah 30C/60C battery
1 x 1S06 6 way Lipo/LIHV charger
1 x Propeller disassemble tool
1 x Screwdriver
