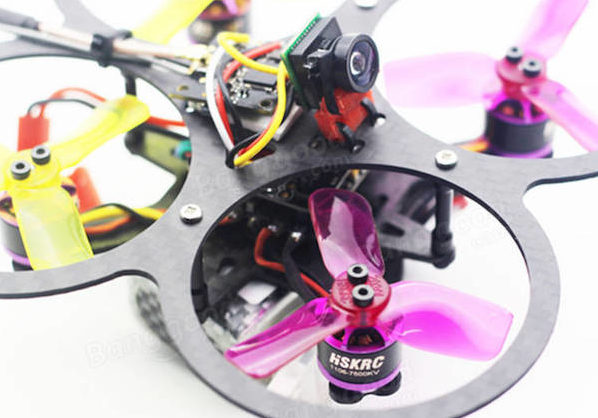

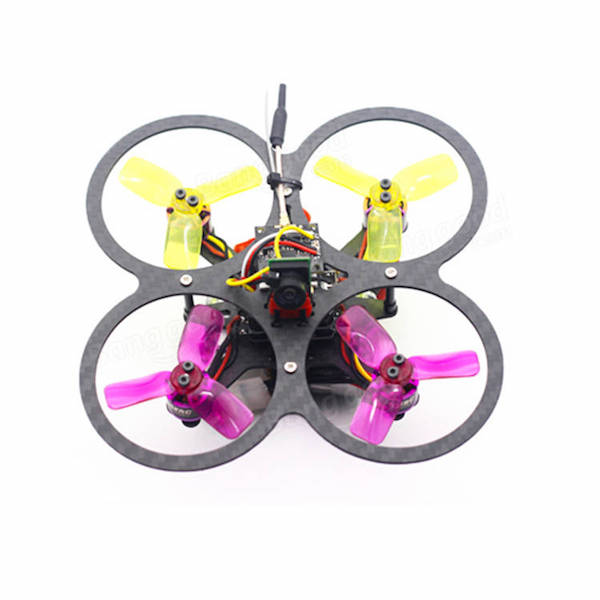

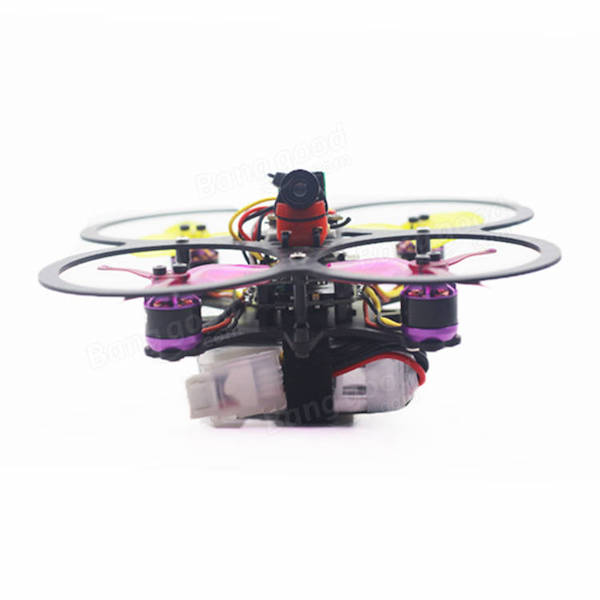

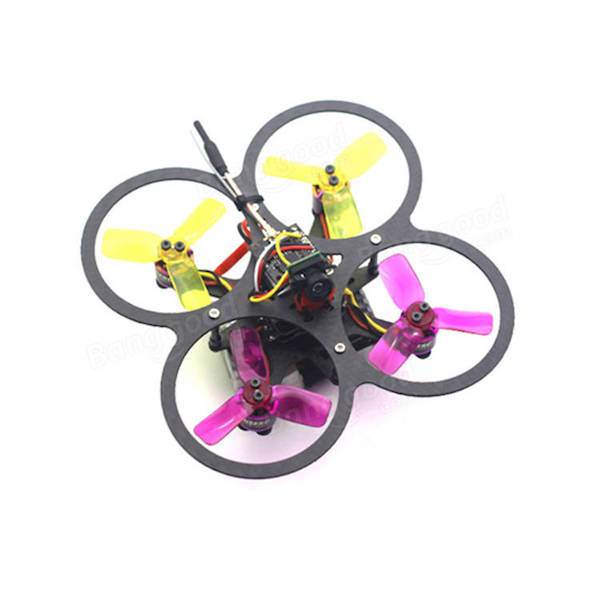

HSK90 90mm Drone FPV Racing mini Brushless
HSK90 90mm

Description :

Frame : 90mm
Brushless motor: 1104 4000KV
Brushless ESC: 4 IN 1 15A BLHeli_S Dshot600
Flight controller: F3 integrated OSD
VTX : EMRF7081U16 25mw
Camera : 600TVL 170°
Battery : 2S 450mah lipo battery
Propeller : kingkong 2045 4-blade propeller
Flight weight : 146g
Receiver : optional original Flysky A8S receiver and compatible DSM receiver


15A 4 IN 1 BLHeli_S ESC
Input voltage: 2-4S LiPo/2-4S HV LiPo
BEC output: no
Continuous working current: 15A (Max 20A 5S)
Size: 27*31mm
Weight: 3.7g
Firmware: BLHeli_S
Supports DSHOT, Oneshot
Processor: SILABS EFM8BB21F16G

F3 Mini Flight Controller
Size: 27*27mm
Mounting size: 20*20mm
Input voltage: 2-4S
PDB: 5V 1A output
Integrated OSD

EMRF7081U16 25mw 7CH 5.8G VTX
Wide voltage: 7-24V
Board weight: 1.5g
Board & antenna weight: 2.2g

600TVl 170° Micro FPV camera
Resolution ratio: 1280*960
Pixel: 5MP
Definition: 600TVL
Minimum illumination: 0.5LUX
Signal to noise ratio: ≥48dB
Gamma ray value: 0.45
Frame number: 50 frame (PAL), 60 frame (NTSC)
White balance: automatic
Voice frequency: single track
Video output: 1Vp-p 75
Colour: colorized
Television system: PAL
Lens: 1.8mm 170°
Power supply range: module 3.3-5V, with step-down line 5-12V
Black line-ground electrode
Red line-power supply
Yellow line-video output
White line-audio output

Package included :

  • 1 x HSK90 Micro frame kit
  • 1 x F3 flight controller
  • 1 x 15A 4 IN 1 ESC
  • 4 x 1104 4000KV brushless motor
  • 1 x EMR7081U16 25mw VTX
  • 1 x 600TVL 170° camera
  • 1 x receiver
  • 2 x kingkong 2045 4-blade propeller CW
  • 2 x kingkong 2045 4-blade propeller CCW
  • 1 x 2S 450mah Lipo battery
