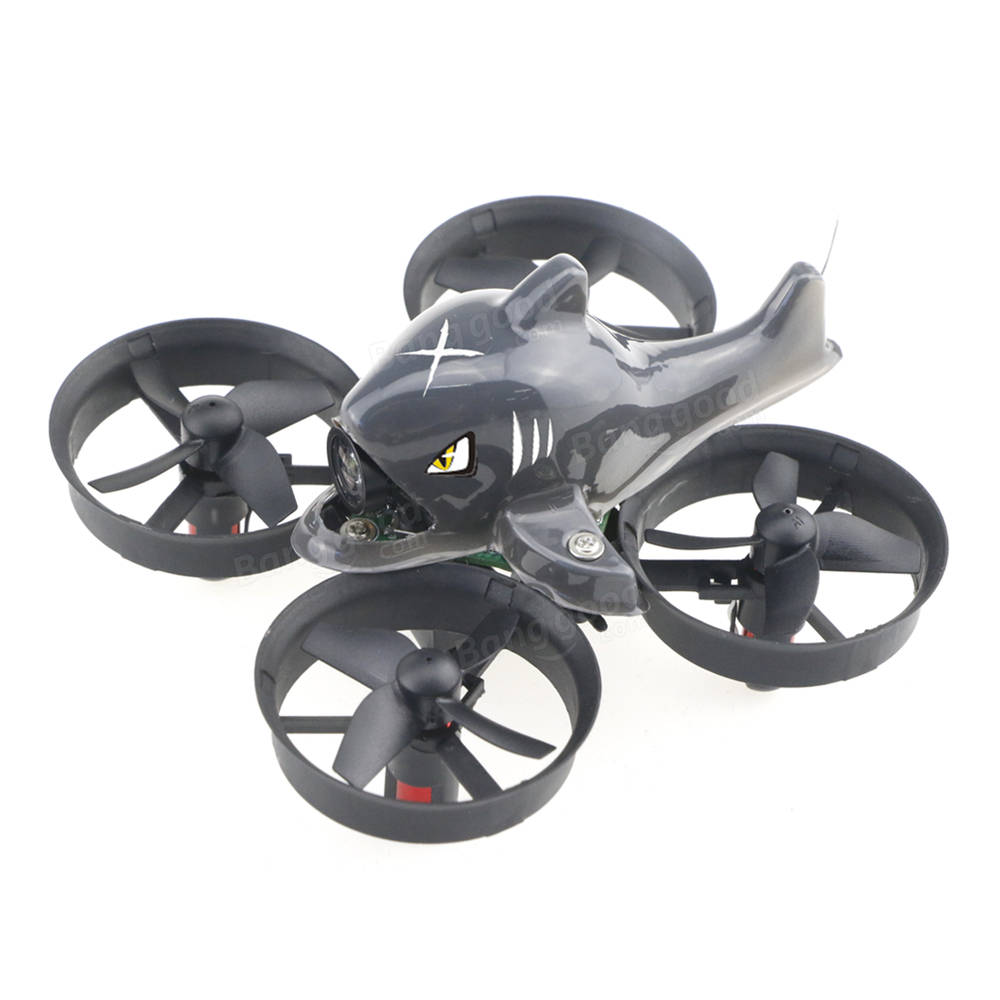

Eachine E010S PRO
Eachine E010S PRO

1. Without assembly and commissioning
2. Open – source flight control can be adjusted according to the player ‘s personal preferences self – stability, semi – self – stability, Manually,High hold mode,OSD information display, convenient for different levels of players
3. According to the race standard RaceBand VTX CAM 40 channel transmitter,Cmos 1/3 800Tvl high-definition camera,NTSC / PAL system can be a key switch

Take off weight: 29.5g
Battery Power: 3.7V 45C 240mAh
Flight Time: 3.5 mins
Wheelbase: 65mm
Frame: ABS high-quality

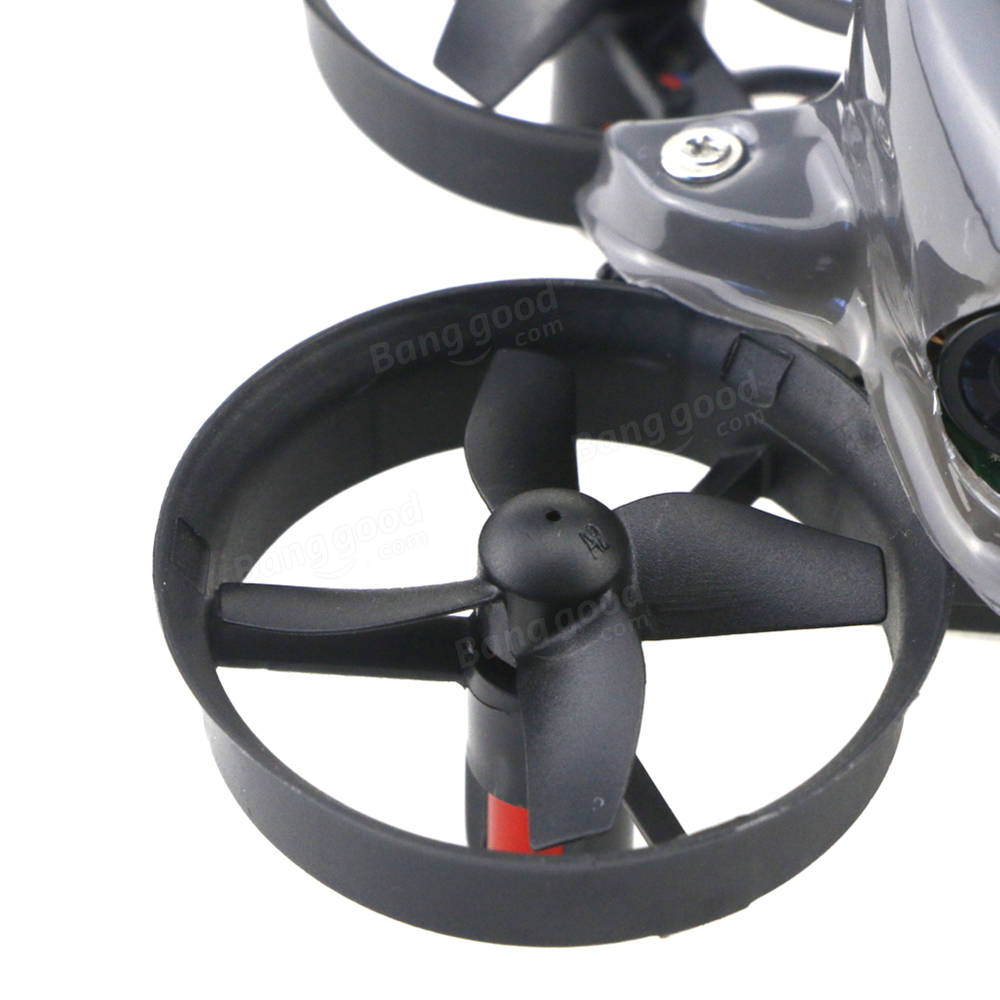

615 Coreless Motor:
Long diameter (without motor axis):15mm
Wide diameter: 6mm
Weight: 4.8 g
Speed: 59000 rpm ± 12%

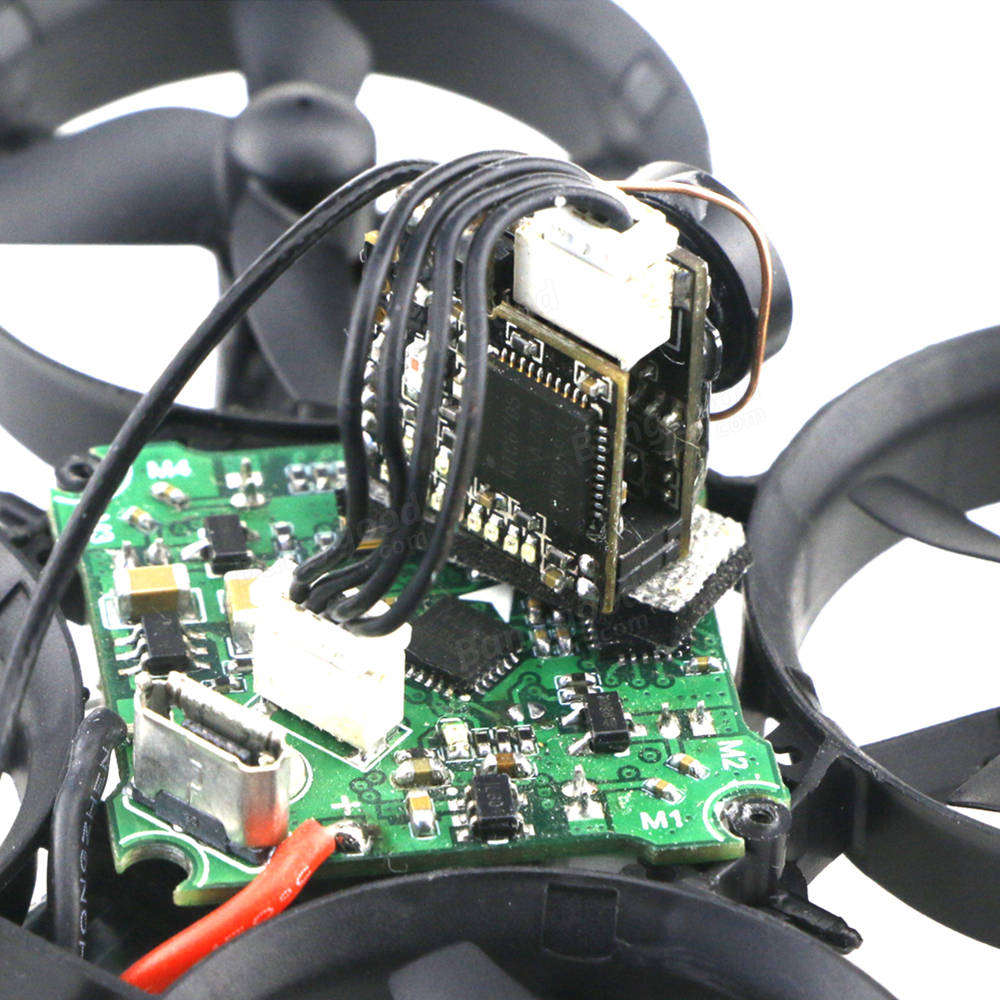

F3 Brush Flight Controller:
– Lemon F3 Flight Control is an open source flight control support the current international mainstream Baseflight platform
– Built-in DC-DC boost circuit, support 1S (4.2v) input, on-board 5V and 3.3V voltage output interface, external image transmission, 5V 1A current output, to ensure stability of the flight control and external equipment
– Drive motor frequency: 2K (this frequency can be set by the user, the maximum frequency can be set to 32K)
– Original BF OSD chip, real-time display flight control information; on-board barometer chip, support for air pressure setting; with gyroscope support manual mode, auto-stabilization mode, semi-auto-stabilization mode
– Firmware upgrades and configuration parameters via Micro-USB, Baseflight-Configuration

1, STM32F303CCT6 master
2. MPU6050 sensor (IIC mode)
3, Betaflight OSD
4, BMP280 barometer

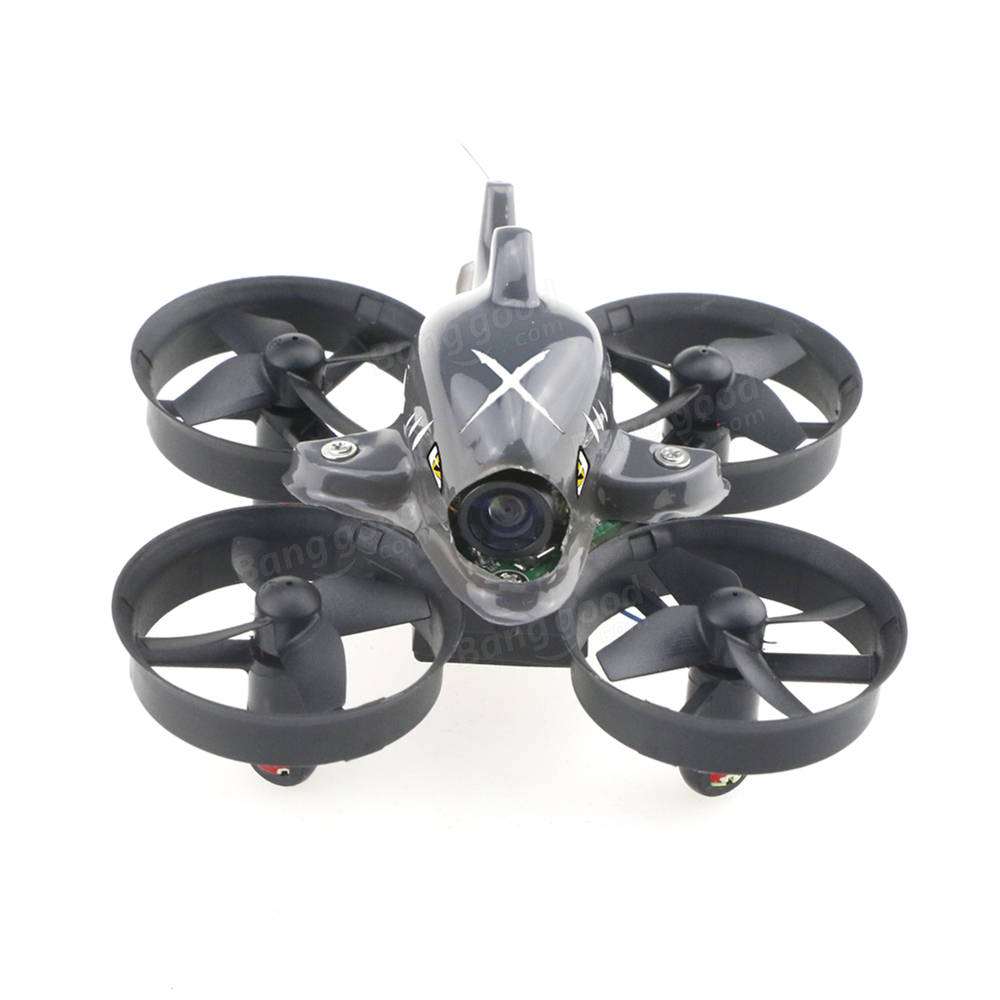

Sensor: 1/3 « CMOS
Clarity:M7 800TVL camera
View Angle:150° FOV horizontal view angle 170° DFOV opposite view angle
Signal system: NTSC/PAL (one-button switch)
Power consumption:380mA@3.7V
Operating voltage:3.6-5.5V
Lens mirror diameter:2.1mm IR coated FOV150(Level)
Output impedance: 75 Ohm
Operating signal intensity: 23~24dBm
Output power:25mW
Wireless channel:40CH
Sound carrier:6.5MHz
Size:26x20x18mm (without antenna)

1 x Frame kit (without shock absorber rings)
4 x 615 59000 rpm ± 12% Coreless Motor
8 x Blades(2 Sets )
1 x F3_EVO_Brush Flight Controller
1 x 800Tvl 40cH 25mW Camera
1 x 3.7V 45C 240mAh battery
1 x USB Charger
1 x Manual
1 x Blade removal tool
