Eachine Wizard TS215

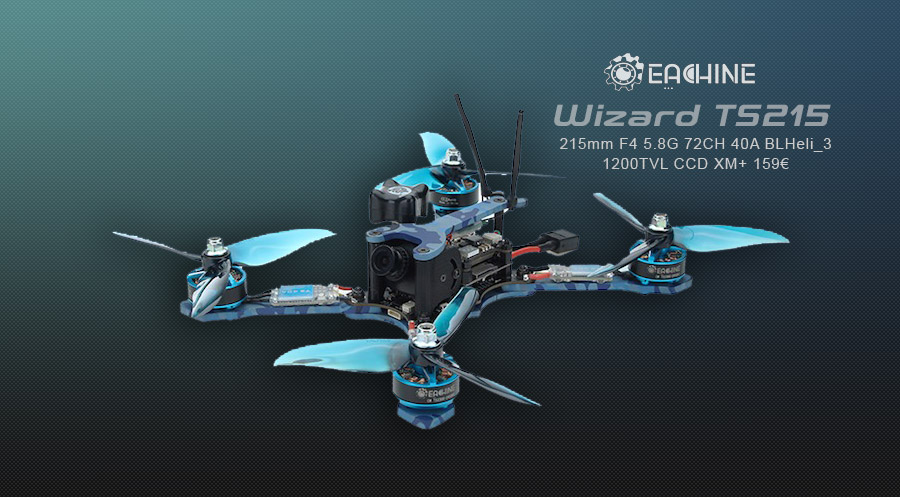

Eachine Wizard TS215 215mm FPV Racing RC Drone F4 5.8G 72CH 40A BLHeli_32 1200TVL CCD XM+ BNF PNP

Partage

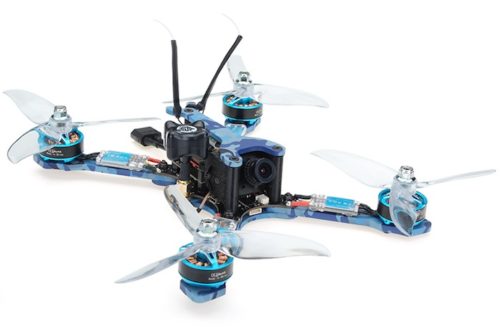

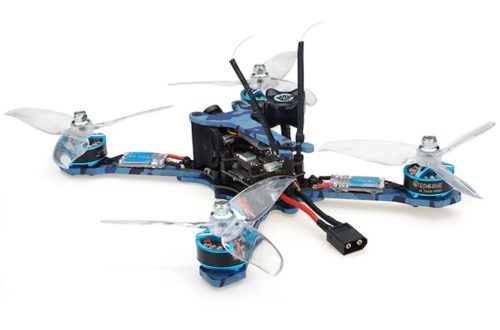

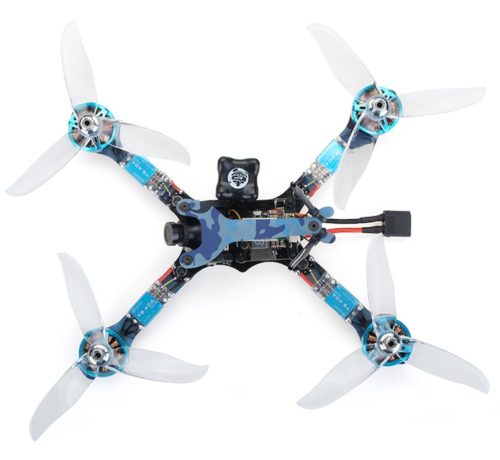

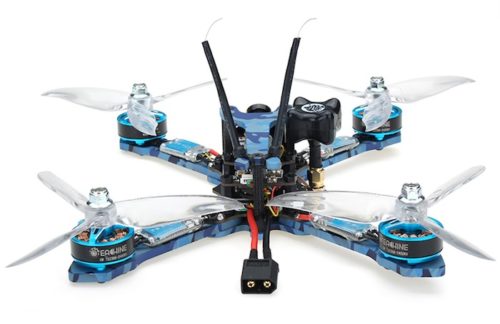

Eachine Wizard TS215
Eachine Wizard TS215

Product Specification:

Version : optional BNF version and PNP version
Weight : 329g (excluding battery)
Package size : 243mmx95mmx262mm
ESC : TS 40A BLHeli_32 Brushless ESC
Motor : TS2306 2450KV Brushless Motor
Flight Controller : Customized Omnibus F4 Flight Controller
VTX : 5.8G 72CH 25mw / 200mw / 500mw / 800mw
Camera : 1200TVL CCD



Description:

Item Specification

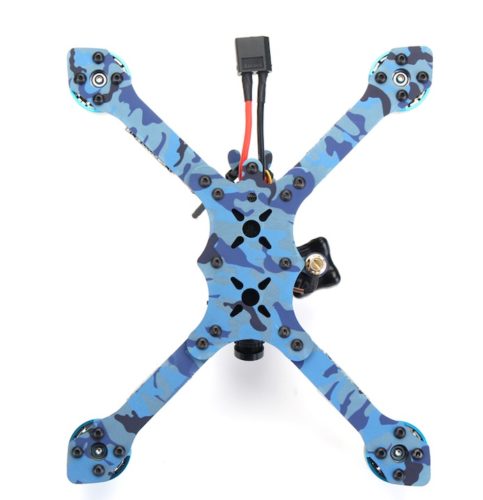

Eachine Wizard TS215 Wheelbase: 215mmMaterial: 3K carbon fiber

Frame arm thickness: 4mm
Top plate thickness: 3mm
Bottom plate thickness: 3mm

Artist: hydrographics transfer printing

Version: optional BNF version and PNP version

Weight: 329g (excluding battery)

Package weight: 870g
Package size: 243mmx95mmx262mm

TS 40A BLHeli_32 Brushless ESC BEC: noContinuous current: 40A

Peak current (5S): 45A

Input voltage: 2-6S

Current sensor: built in

LED indicator onboard, the light colors are adjustable.

Supports Dshot1200, Dshot600, Dshot300, Dshot150.

TS2306 2450KV Brushless Motor KV: 2450NO.OF cell: 2-6S

Thrust: 2300g (16V 6040 2-blade prop)

Framework: 12N14P

Motor shaft: 5mm

Weight: 32.5g

Customized Omnibus F4 Flight Controller CPU: f4STM32 F405 SCMBarometer: BMP280

Input voltage: 3-4S

Sensor: MPU6000 SPI

With SD slot

Built in OSD

Built in 5V 3A BEC

5.8G 72CH 25mw / 200mw / 500mw / 800mw VTX Input voltage: 7-24VExtra features: smart audio, 0.01mW (parameter-adjusting mode)

Power supply: 5V camera @ under 0.3A max.

Output voltage: 25mW-100mA 200mW-200mA 500mW-260mA 800mW-300mA @ 12V

Range: up to 4km with omnidirectional RHCP antennas

Antenna connector: MMCX, RP-SMA

Port connector: JST, 4pin

Dimensions: 30.5×30.5mm

Weight: 8.5g (excluding antenna)

Material: 128g double copper

Adjustable 25mw / 200mw / 500mw / 800mw

Supports smart audio (remote parameter adjustment)

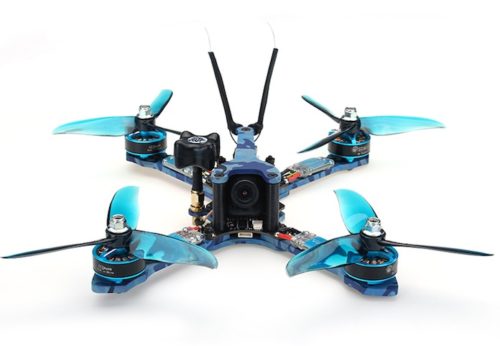

1200TVL CCD Camera Lens: 2.8mmSize: 25mm*25mm

Weight: 9.5g

System: PAL

Working voltage: DC5-12V

Working current: 70mA (low power consumption)

Frsky XM+ Micro D16 SBUS Receiver (BNF version only)

Dimension: 21.5*12*3.5mm(L x W x H)

Weight: 1.6g

Number of channels: up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)

Operating voltage range: 3.7~10V

Operating current: 30mA @5V

Operating range: full range

With RSSI output on board: analog 0~3.3V

Firmware upgradeable

Compatibility: FrSky D16 mode

Storage Board Supports 720p HD recordingSupports Max. 32G storage card

Suggest to use class10 storage card

Save format: mp4.avi file format, n/p system

DALPROP Cyclone T5046C 3-blade propeller Size: 5046 5×4.6Mounting hole: 5mm

Color: blue and transparent white



Package included:

  • 1 x Eachine Wizard TS215 frame kit
  • 4 x TS 40A BLHeli_32 Brushless ESC
  • 4 x TS2306 2450KV brushless motor
  • 1 x F4 flight controller
  • 1 x 1200TVL CCD camera
  • 1 x 5.8G 72CH 25mw 200mw 500mw 800mw switchable VTX
  • 2 x DALPROP 3-blade propeller transparent white CW
  • 2 x DALPROP 3-blade propeller transparent white CCW
  • 2 x DALPROP 3-blade propeller blue CW
  • 2 x DALPROP 3-blade propeller blue CCW
  • 1 x Antenna
  • 1 x Battery plate
  • 2 x Battery strap
  • 2 x Carbon fiber wrench
  • 4 x Landing skid gear frame anti-vibration sponge
